Overview

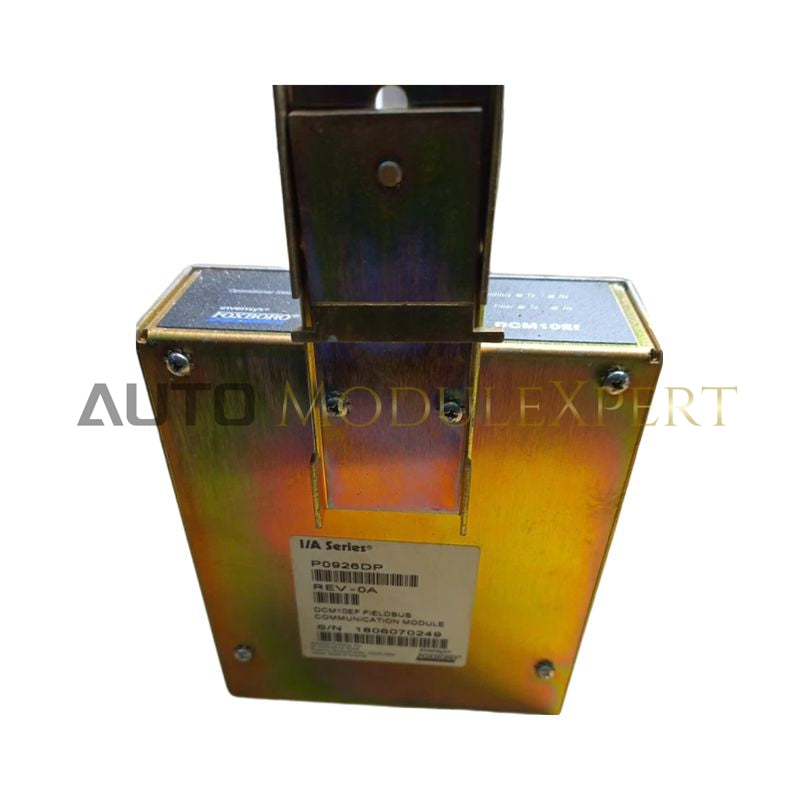

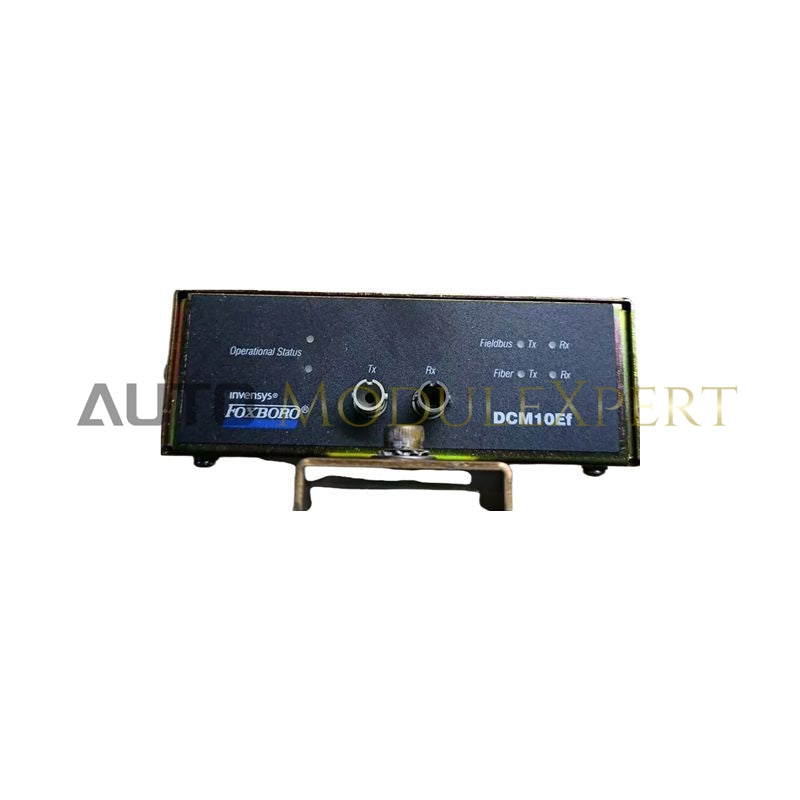

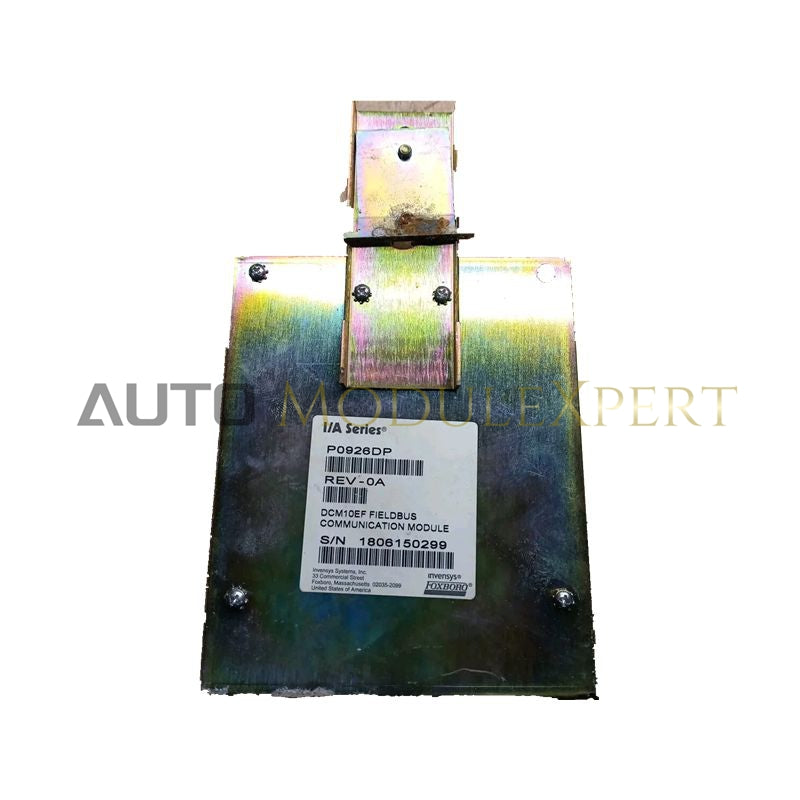

The Foxboro DCM10E P0926DJ DIN Fieldbus Converter Module is a critical component of the I/A Series distributed control system. It is designed to bridge high-speed Ethernet signals from the CP60 processor with the lower-speed HDLC signals required by Y-Module form factor Fieldbus Modules (FBMs) and migration modules. Moreover, the DCM10E supports both local and extended Fieldbus configurations, making it versatile for complex plant architectures. In addition, its DIN-rail mounting design simplifies installation and maintenance, while its rugged construction ensures dependable performance in demanding industrial environments. Therefore, the DCM10E is widely adopted in modernization projects and new automation deployments where seamless communication and scalability are essential.

Technical Data

Typical Applications

• Process Automation Systems: Requiring reliable communication between CP60 processors and field devices.

• Migration Projects: Where legacy FBMs or competitive modules must be integrated into modern control networks.

• Chemical and Petrochemical Plants: With distributed control architectures.

• Power Generation Facilities: Needing robust signal conversion for turbine and boiler control.

• Water Treatment Plants: Where extended Fieldbus configurations ensure scalable communication.

• Oil Refining and Pulp & Paper Industries: Requiring dependable integration of multiple field devices.

FAQ

Q1: What is the main function of the DCM10E module?

A1: It converts Ethernet signals from the CP60 processor into HDLC signals for FBMs and migration modules.

Q2: Can the DCM10E support extended Fieldbus configurations?

A2: Yes, it supports both local and extended Fieldbus setups, offering flexibility for large installations.

Q3: Which devices are compatible with the DCM10E?

A3: It works with Y-Module form factor FBMs, SPECTRUM migration modules, and competitive migration modules.

Q4: How is the module installed?

A4: It features a DIN-rail mounting design, simplifying installation and maintenance.

Q5: What industries typically use the DCM10E?

A5: Industries such as chemical processing, power generation, oil refining, pulp & paper, and water treatment rely on it for reliable communication.
