Product Description

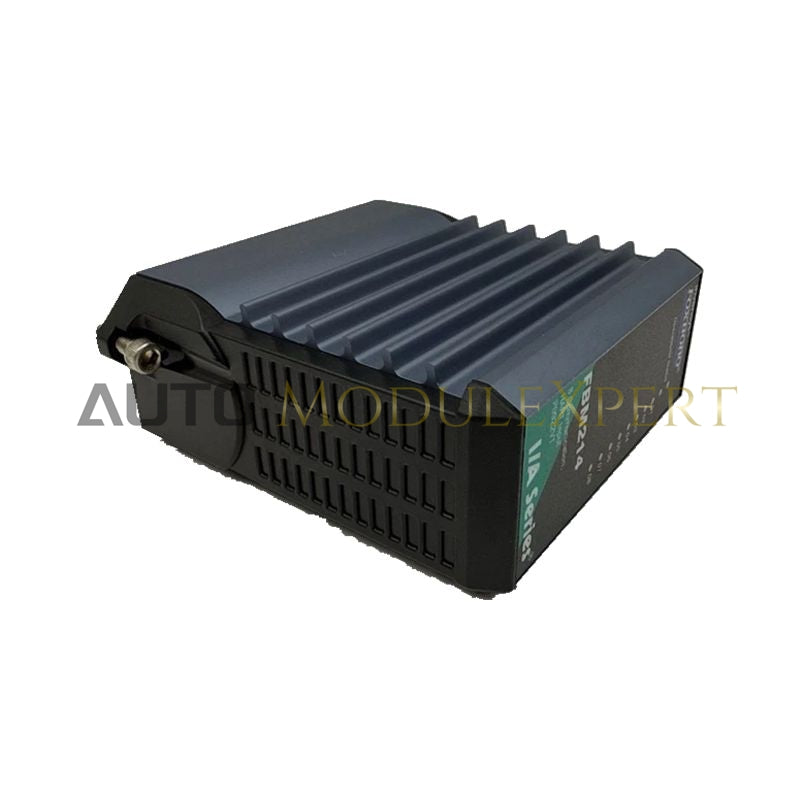

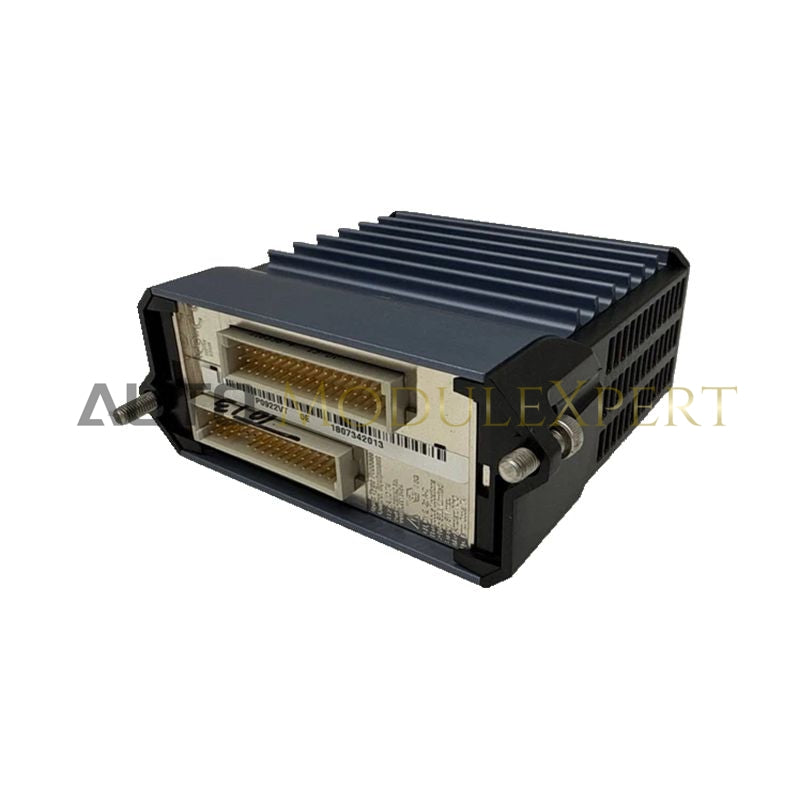

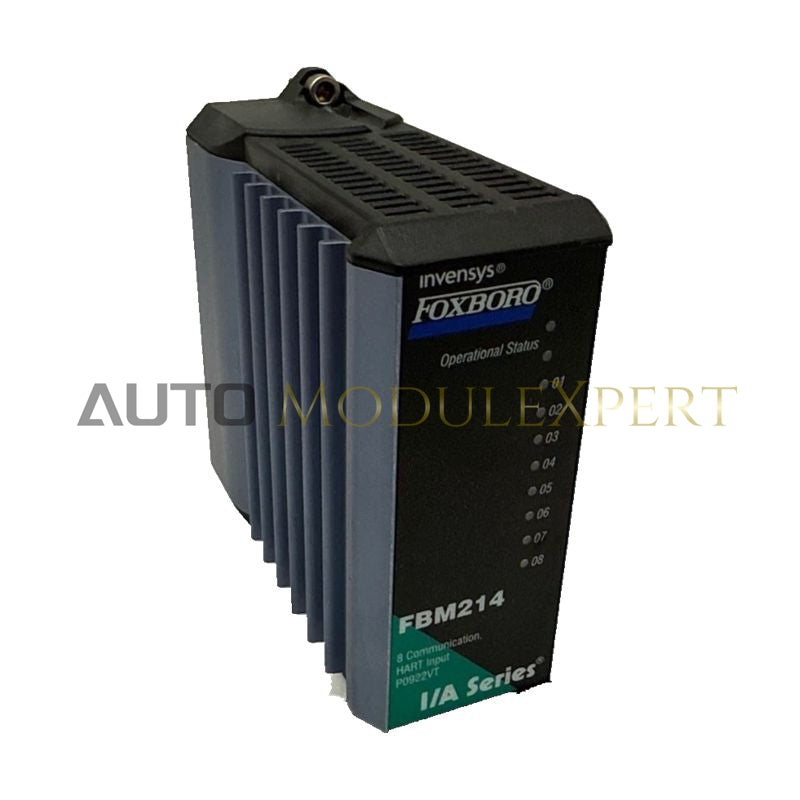

The FBM214 (P0916DC) is an 8-channel HART-enabled analog input module for the Foxboro I/A Series DCS. It interfaces with 4–20 mA transmitters while simultaneously supporting HART digital communication, enabling acquisition of secondary variables, diagnostics, and instrument health data in addition to the primary process signal.
Designed for high signal integrity and long-term reliability, the FBM214 features per-channel galvanic isolation to eliminate ground loops and protect system electronics. Its hot-swappable design allows maintenance or replacement without interrupting active process control loops.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Channels | 8 isolated analog inputs |
| Input Signal | 4–20 mA DC |
| HART Support | Digital HART over analog signal |
| Input Impedance | 250 Ω |
| Accuracy | ±0.03% of span |
| Isolation | 600 V AC |
| Power Supply | 24 V DC via baseplate |
| Heat Dissipation | 3.5 W maximum |
| Operating Temperature | -20 °C to +70 °C |
Typical Applications
-
Pressure and temperature transmitter monitoring in chemical plants
-
Smart flow meter integration in oil and gas pipelines
-
Level measurement for tank farm management
-
Remote diagnostics of smart instruments in water and wastewater facilities
Frequently Asked Questions
Does the FBM214 (P0916DC) provide power to field instruments?
Yes. The module supplies current-limited loop power for 2-wire transmitters and can also accept signals from 4-wire self-powered instruments, offering flexible field wiring options.
Can HART data be accessed using third-party software?
Yes. HART data passed through the FBM214 is compatible with Foxboro asset management tools and FDT/DTM-compliant software, enabling full remote configuration, calibration, and diagnostics.
