Overview

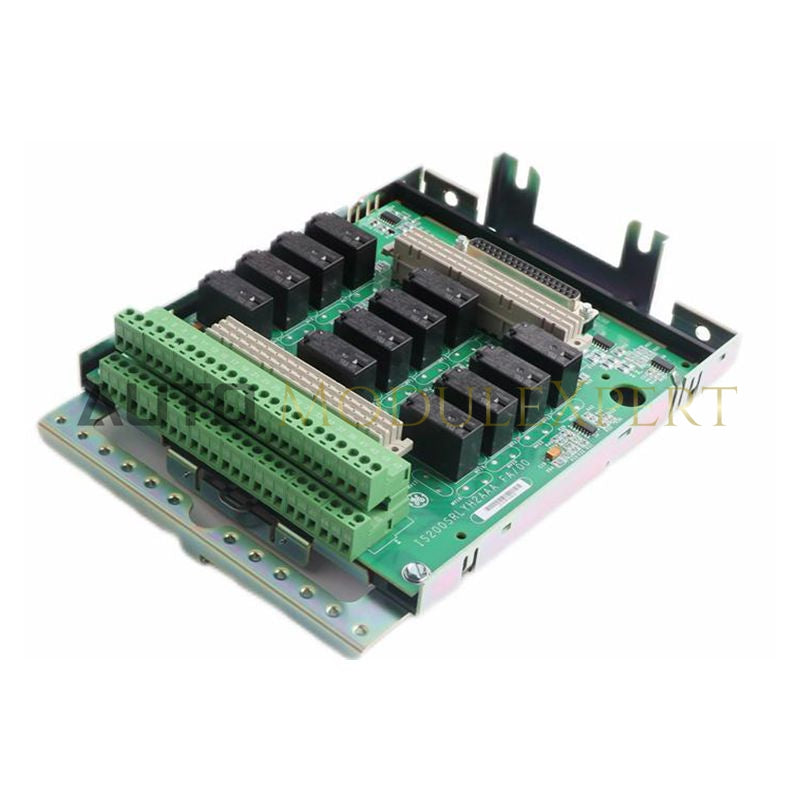

The GE IS200SRLYH2AAA is a rugged and reliable output board designed to deliver discrete control signals to external devices in turbine and process control systems. It is part of the Mark VI Speedtronic platform and is typically deployed in simplex configurations requiring high-speed relay actuation.

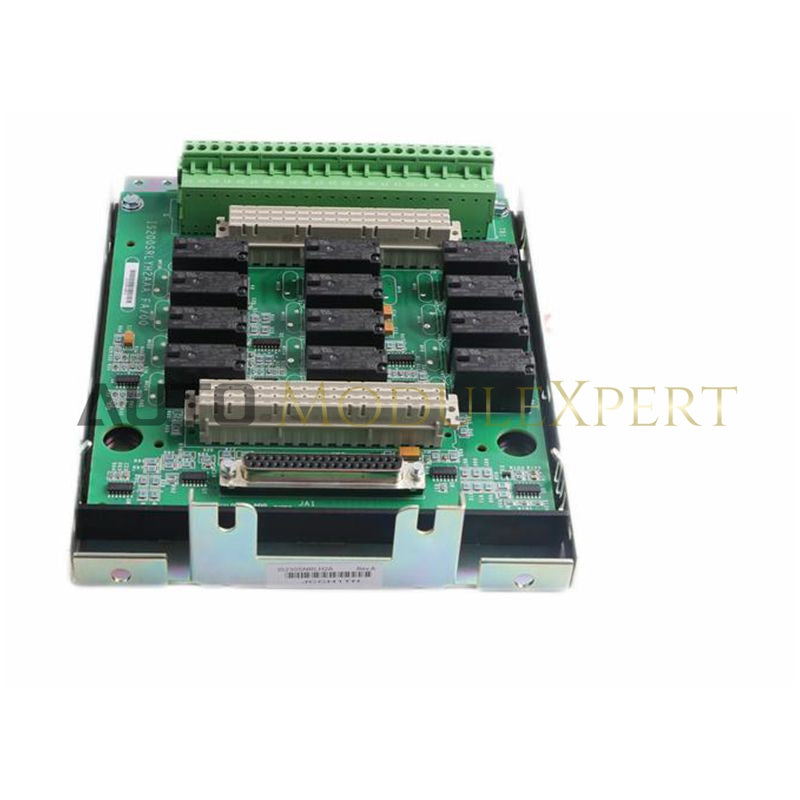

Moreover, the board features 12 Form-C electromechanical relay circuits, each with isolated contacts capable of switching both AC and DC loads. The relays are distributed across 48 customer terminals, providing flexible wiring and easy integration into control cabinets. In addition, the IS200SRLYH2AAA connects to I/O packs such as PDOA or YDOA, which handle signal processing and communication with the controller.
Its compact, panel-mounted design and industrial-grade construction make it ideal for power generation, oil & gas, and marine automation applications where durability and reliability are critical.
Technical Data
| Specification | Details |
|---|---|
| Model Number | IS200SRLYH2AAA (IS230SNRLH2A) |
| Manufacturer | GE (General Electric) |
| Product Type | Simplex Relay Output Terminal Board |
| Dimensions | 15.9 × 17.8 × 6.8 cm |
| Weight | 1.14 kg |
Typical Applications
-
Gas and Steam Turbine Control: Activates trip solenoids, alarms, and auxiliary relays during startup and shutdown.
-
Emergency Shutdown Systems (ESD): Provides fast relay actuation for safety-critical functions.
-
Power Generation Facilities: Interfaces with turbine-generator auxiliaries and balance-of-plant devices.
-
Oil and Gas Plants: Manages discrete control outputs in compressor stations and refinery automation.
-
Marine Automation Systems: Controls propulsion and auxiliary systems in shipboard control panels.
Example:
In a turbine protection system, the IS200SRLYH2AAA can energize trip relays within milliseconds in response to overspeed or vibration alarms. Thus, it plays a vital role in maintaining system integrity and operational safety.
FAQ
Q: What type of relays does the IS200SRLYH2AAA use?
A: It uses 12 Form-C electromechanical relays for discrete output control.
Q: Is it compatible with redundant systems?
A: No, it is designed for simplex configurations only.
Q: What I/O packs can be used with this board?
A: It supports PDOA and YDOA I/O packs for signal processing and controller communication.
Q: What kind of loads can it switch?
A: It can switch both AC and DC loads, depending on the relay contact ratings.
Q: What systems is it compatible with?
A: It integrates with GE’s Mark VI Speedtronic turbine control systems.
