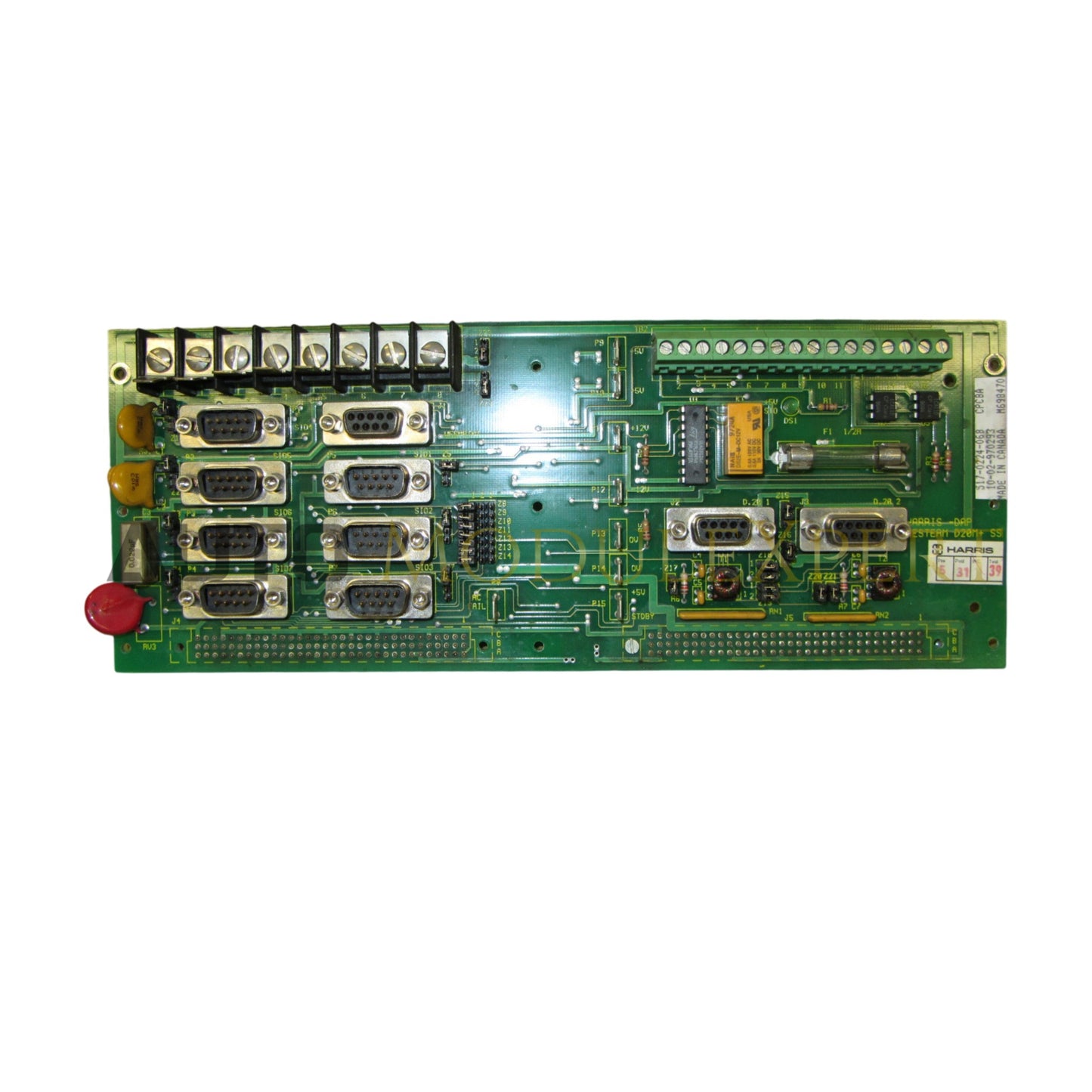

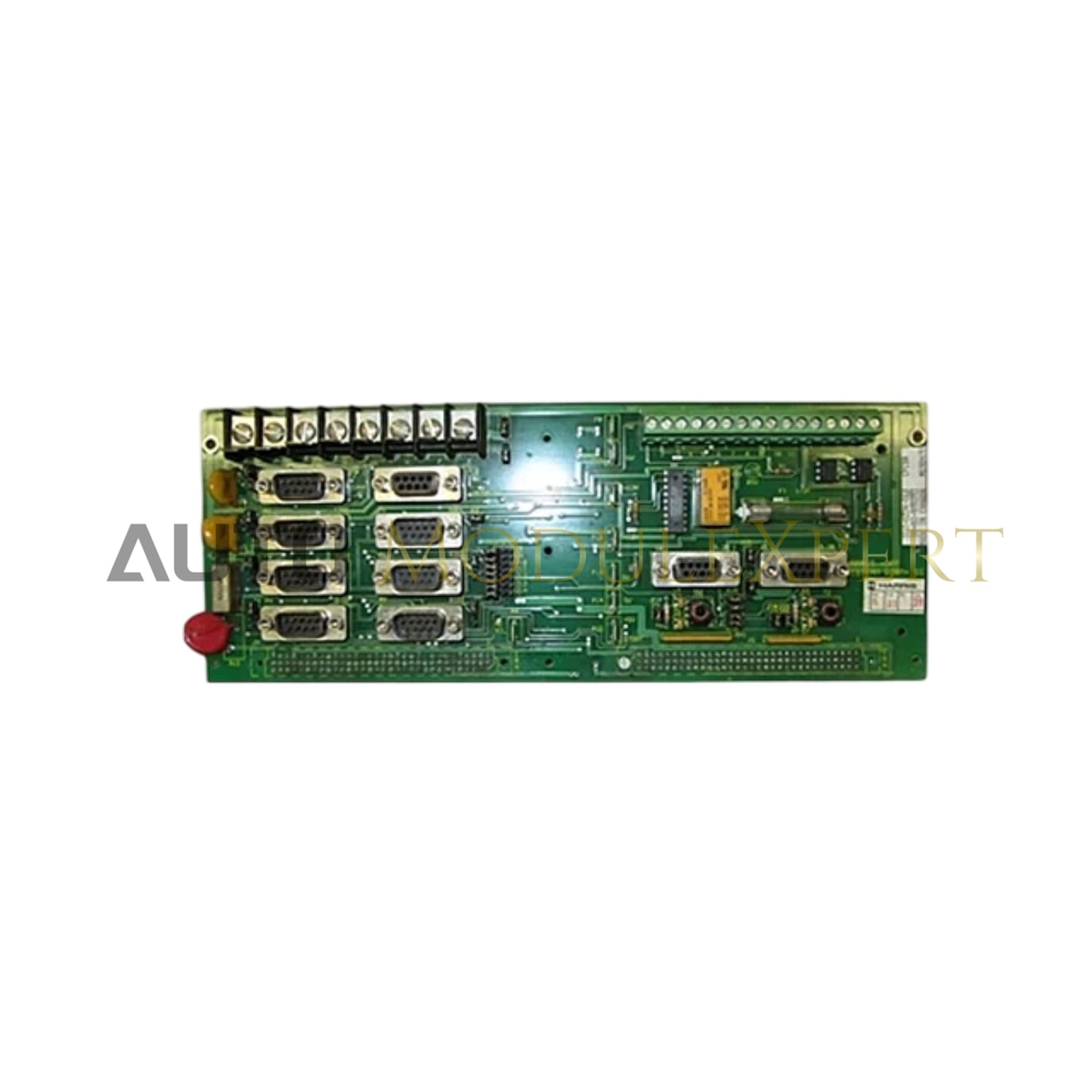

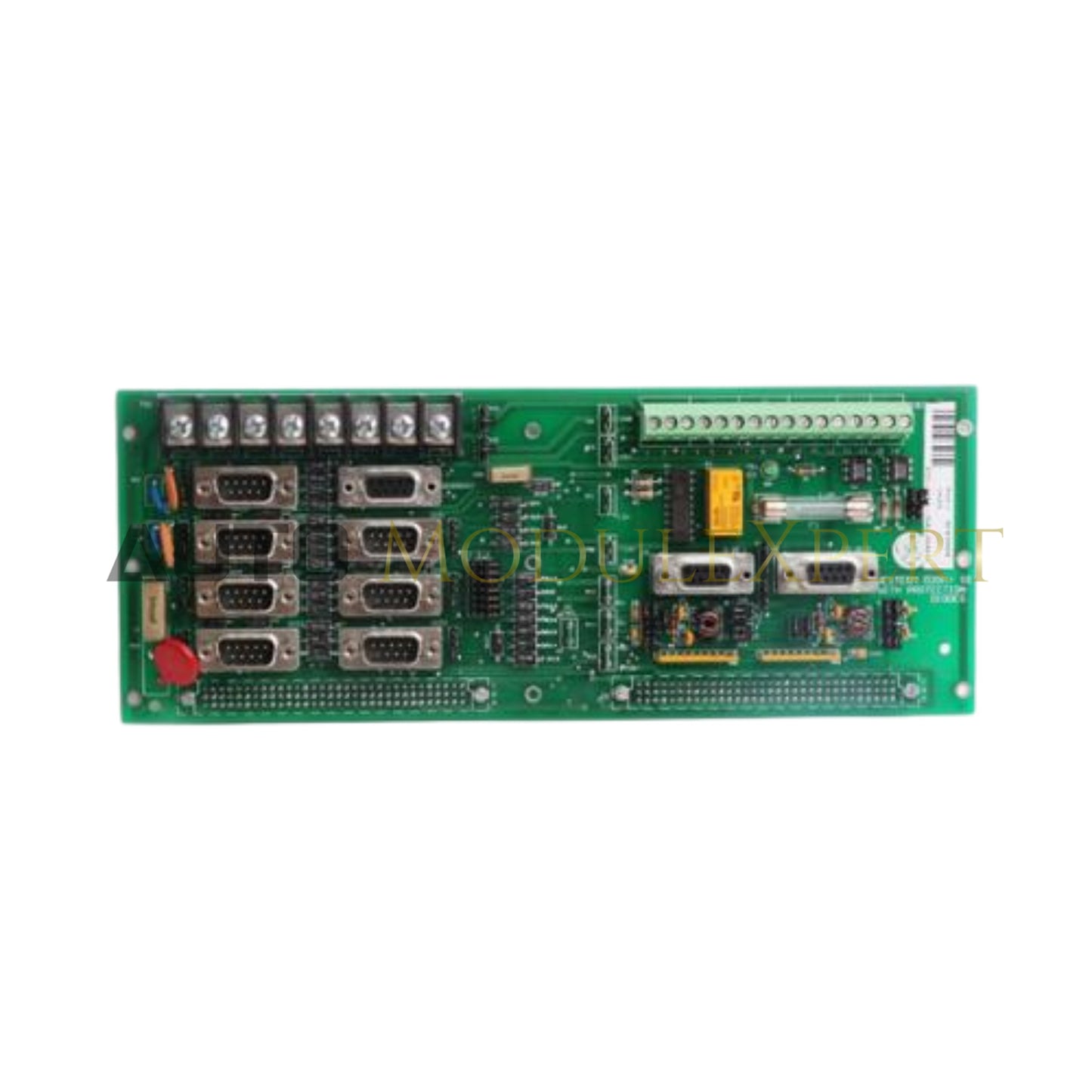

The GE 517-0224, also cataloged as the 517-0224 Termination Panel, operates as a dedicated hardware component for signal termination and transient protection within Western D20M + SS system platforms.

Hardware Specifications

Intrinsic Safety and Protection Limits

The 517-0224 panel utilizes integrated protection diodes to safeguard low-voltage input circuits from voltage surges and transients. By providing galvanic-like separation and clamping functionality, the assembly prevents damage to the D20M + SS processor modules caused by over-voltage conditions on field signal lines. The absence of VME bus architecture simplifies the electrical path, reducing protocol conversion latencies and ensuring deterministic signal response. Users must ensure that the voltage ratings of the connected field loops do not exceed the clamping limits of the onboard protection diodes to maintain device integrity.

Frequently Asked Questions

Q: Does the 517-0224 panel require periodic maintenance of the protection diodes?

A: No. The protection diodes are solid-state components. However, visual inspection for physical damage or evidence of high-voltage arcing should be performed during routine system maintenance shutdowns.

Q: Can this panel be used in a VME-based rack system?

A: No. The 517-0224 is explicitly designed as a non-VME architecture component and is electrically incompatible with VME backplane signaling standards.

Field Installation Guidelines

• Mounting: Secure the panel to a standard equipment cabinet surface. Ensure the assembly is mounted in an orientation that allows for optimal heat dissipation within the specified -40 deg C to 70 deg C operating range.
• Wiring: Terminate field wiring using appropriate lugging to ensure high-conductivity connections. Verify that the shield drain wires are connected to the designated ground terminal to prevent electromagnetic interference.
• Grounding: Establish a low-impedance connection between the termination panel common terminal and the system protective earth (PE) bus. Improper grounding will degrade the effectiveness of the surge protection diodes.
• Verification: Use a digital multimeter to verify continuity and isolation resistance of signal paths prior to energizing the D20M + SS system input loops.
