Overview

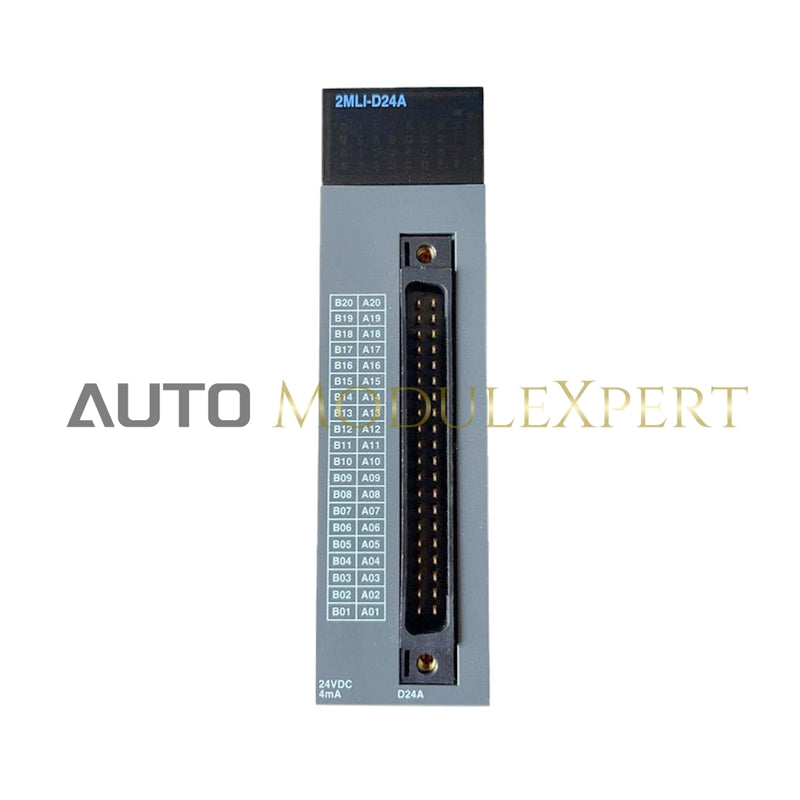

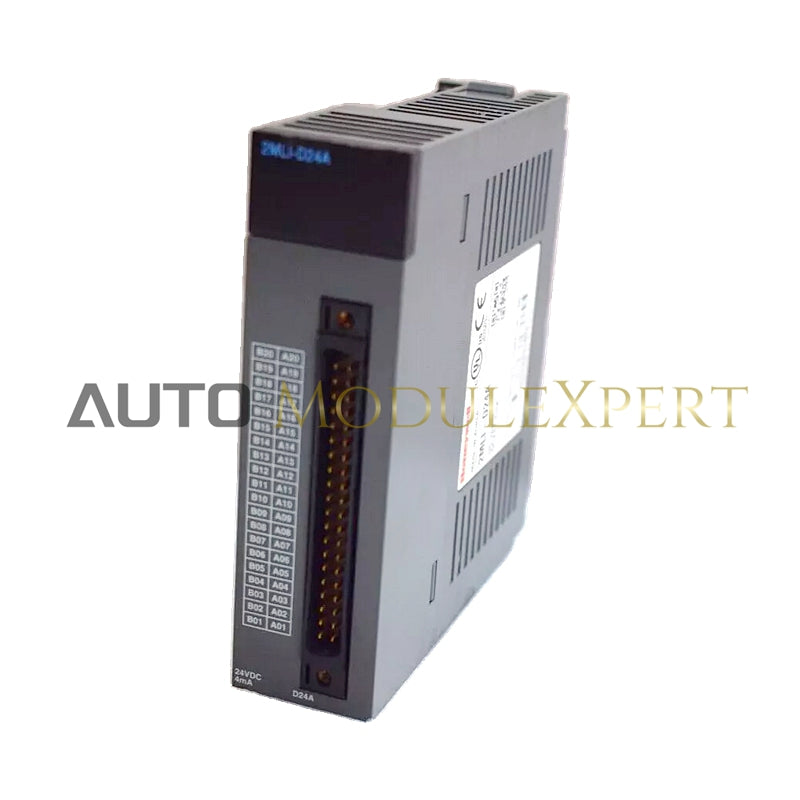

The Honeywell 2MLI-D24A is a 32-point DC24V Input Module, engineered for industrial automation systems. It incorporates photo coupler isolation to enhance reliability and is equipped with advanced settings for flexible operational performance.
Input Characteristics
-
Input Points: 32
-
Isolation Method: Photo coupler isolation
-
Rated Input Voltage: DC24V
-
Rated Input Current: Approx. 4 mA
-
Operation Voltage Range: DC20.4 to DC28.8V (Ripple rate < 5%)
Voltage & Current Specifications
-
On Voltage/Current: DC19V or higher / 3 mA or higher
-
Off Voltage/Current: DC11V or lower / 1.7 mA or lower
-
Input Resistance: Approx. 5.6 kΩ
Response Time
-
Off → On: Selectable (1ms, 3ms, 5ms, 10ms, 20ms, 70ms, 100ms; set by CPU parameter), default: 3ms
-
On → Off: Selectable (1ms, 3ms, 5ms, 10ms, 20ms, 70ms, 100ms; set by CPU parameter), default: 3ms
Environmental Isolation
-
Isolation Voltage: AC560V rms/3 Cycle (Altitude: 2000m)
-
Isolation Resistance: 10 MΩ or more, tested via megger
Connection & Consumption
-
Common Method: 32-point / COM
-
Proper Cable Size: 0.3 mm²
-
Current Consumption: 50 mA
-
External Connection: 40-point connector
-
Operation Indicator: Input On, LED illuminated
Physical Specifications
-
Weight: 0.1 kg
