Product Overview

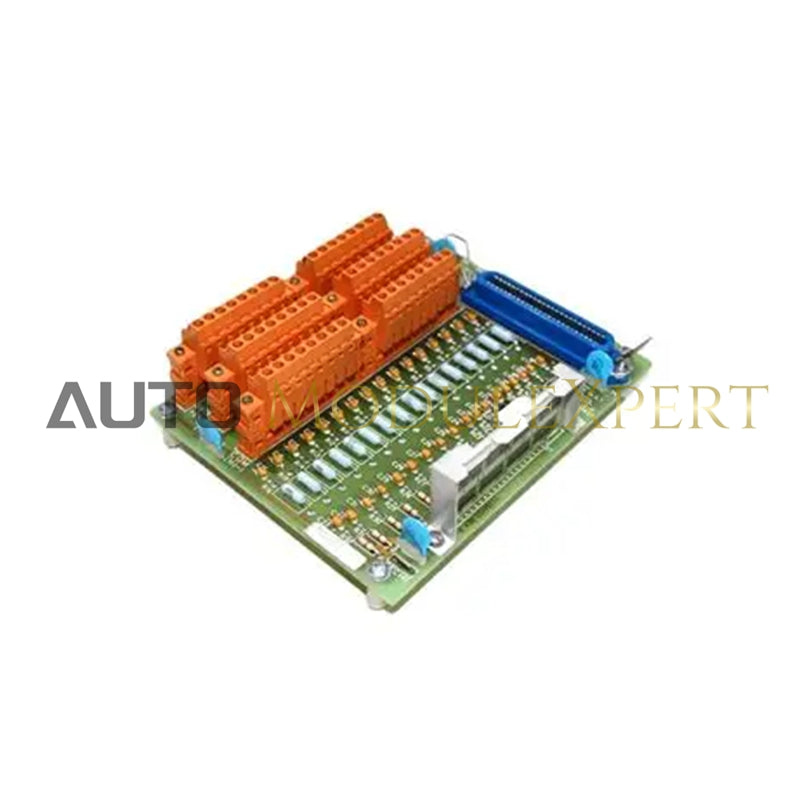

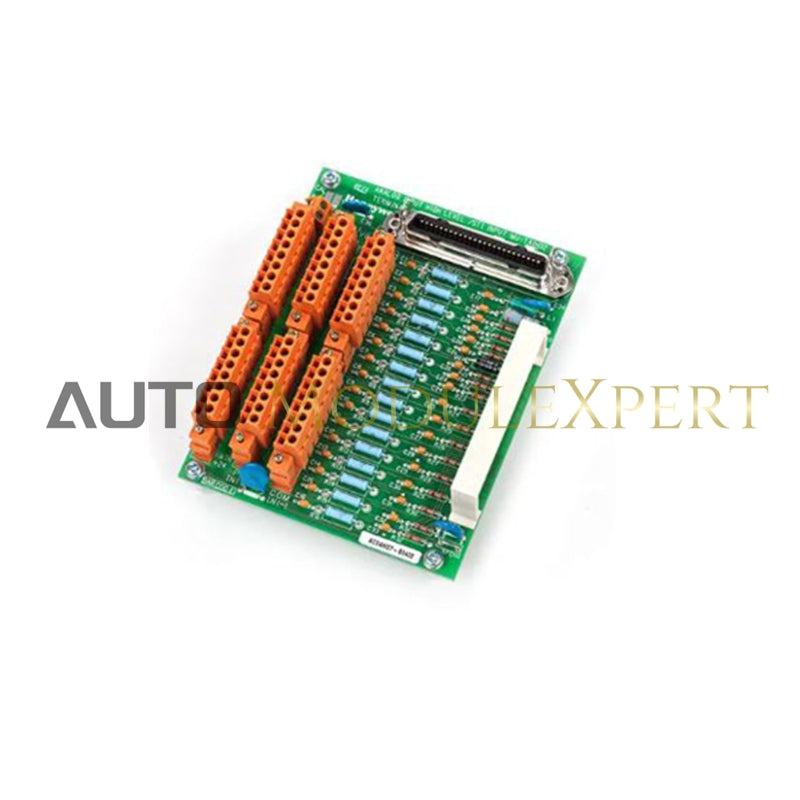

The Honeywell 80366195-100 MU-TAIH22 is a high-precision Analog Input / STI Function Terminal Adapter designed for use in Honeywell’s Total Building Management (TBM) systems. It supports 16 high-level analog input channels, enabling accurate signal acquisition and processing for HVAC systems, energy monitoring, and facility automation. Its redundant STI output enhances fault tolerance and ensures continuous system operation. This module is commonly used to interface with sensors, transmitters, and field instruments in industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 80366195-100 MU-TAIH22 |
| Brand | Honeywell |
| Input Channels | 16 high-level analog inputs |
| Signal Compatibility | 4–20 mA, 0–10 V DC |
| Input Type | High-level analog |
| Input Range | 0 to 10 V DC |
| Accuracy | ±0.1% of full scale |
| Resolution | 12 bits |
| Input Impedance | 10 MΩ |
| Output Type | Redundant STI |
| Output Voltage | 0 to 5 V DC |
| Output Current | 10 mA |
| Dimensions | 192 mm × 145 mm × 27 mm |
| Weight | 0.8 kg |
| Operating Temperature | -40°C to +70°C |
| Storage Temperature | -55°C to +85°C |
| Humidity | 95% RH, non-condensing |
| Vibration Resistance | 5g, 10 to 500 Hz |
| Certifications | CE, UL508, CSA, TUV |
| Warranty | 12 months |
| Country of Origin | USA |
Key Features
-
Supports multiple analog signal types with high accuracy
-
Redundant STI output enhances system reliability
-
Wide temperature range suitable for industrial environments
-
Low-noise and stable signal conversion
-
Seamless integration with Honeywell TBM architectures
