Description

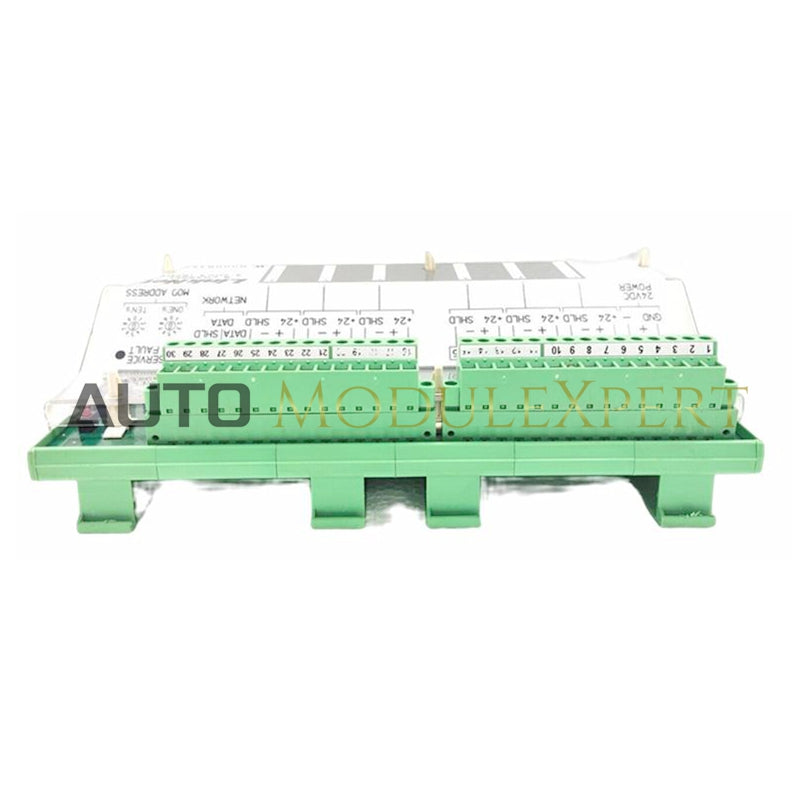

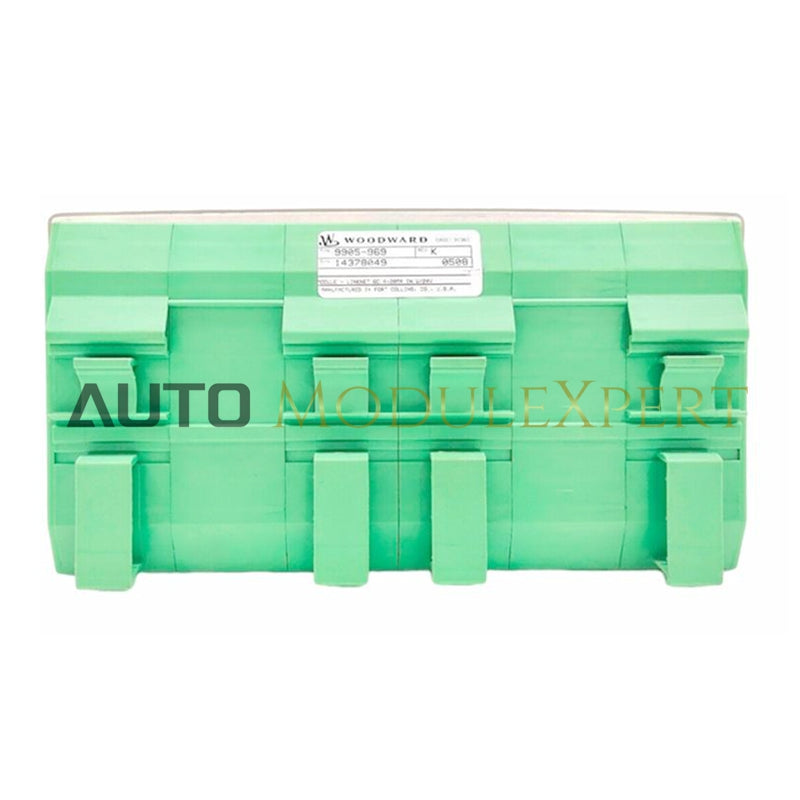

The 9905-969 Linknet 6 Channel Analog Input Module is designed by Woodward for use with the NetCon control system, providing distributed I/O capabilities for non-turbine control tasks like sequencing and monitoring.
Electrical and Power Characteristics
-
Power Supply Input : 18 to 32 V (DC)
-
Network to I/O Channel : 277 V (AC)
-
Power Supply Input to Network : 277 V (AC)
-
Power Supply Input to I/O Channel : 500 V
-
Input Voltage : +24 VDC at 1 A
Environmental and Mechanical Specifications
-
Temperature Range : -40 to +55 °C
-
Humidity Standards : 20 and 55 °C at 95% for 48 hrs
-
Dimensions : 14W x 11H x 4D
-
Display Type : 2 lines x 24 characters
-
Keypad/Display : 30 Multi-function Keypad
System and Network Architecture
-
Network Architecture : 4 autonomous network trunks, each with up to 60 I/O modules
-
Module Connectivity : Single twisted pair wire for each module connected to the NetCon controller
-
Total Modules : Up to 240 LINKnet modules per NetCon controller
-
Rate Group Configuration : Each channel can operate in a distinct rate group, defined by the MOE* coder
-
Address Configuration : Two rotary switches to set network address, matching the module number
