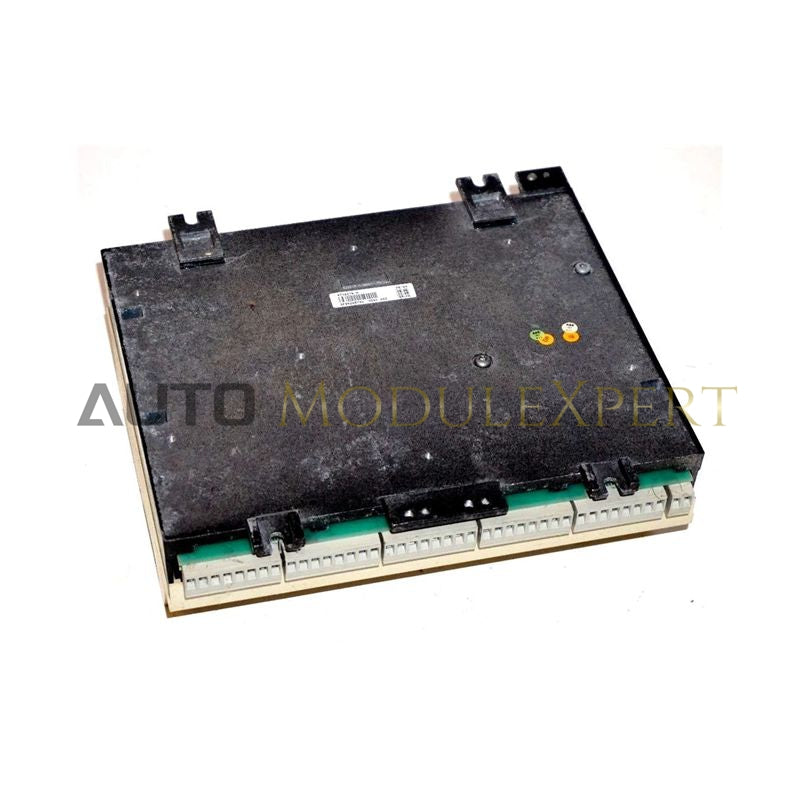

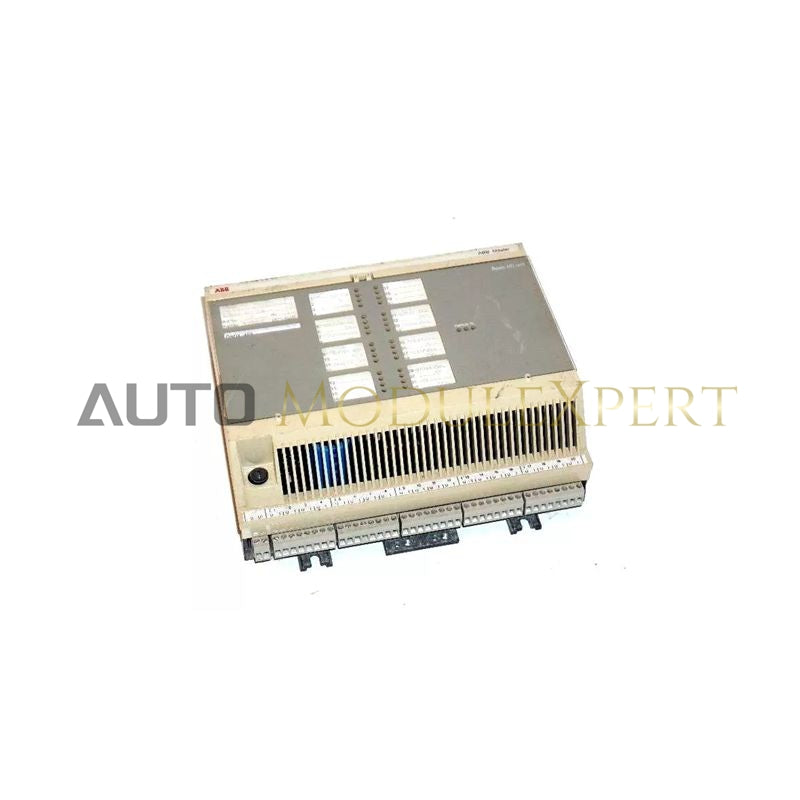

Product Overview
The ABB DSDX452 is a digital basic I/O unit module, essential for industrial automation systems, especially within the ABB Advant Master DCS and S400 I/O systems. Part number 5716075-P, this module plays a vital role in facilitating data communication and system integration between control units and field devices. It provides both digital inputs and digital outputs, making it an extremely versatile component for a wide range of control and monitoring tasks.
Technical Specifications
The ABB DSDX452 I/O unit features a compact and robust design. It provides 20 digital inputs (24 V DC) and 12 digital outputs with relay functionality. This configuration allows for a flexible and efficient control system, ideal for industrial automation applications. The module measures approximately 217.8 mm x 90 mm x 198 mm and weighs 2.9 kg. Communication is handled via the MasterFieldbus SDB protocol, ensuring reliable data transfer across the system.
| Feature | Specification |
|---|---|
| Model Number | DSDX452 |
| Part Number | 5716075-P |
| Type | Digital Basic I/O Unit |
| Inputs | 20 Digital, 24 V DC |
| Outputs | 12 Digital, Relay |
| Dimensions | 217.8 x 90 x 198 mm |
| Weight | 2.9 kg |
| Communication | MasterFieldbus SDB |
| Brand | ABB |
Functionality and Design
The DSDX452 is designed for reliability and stability in demanding industrial environments. It performs self-tests on startup and continuously monitors communication, power loss, and transducer power supply. This ensures smooth operation and quick troubleshooting if issues arise. The unit is expandable, allowing it to connect with other expansion units like the DSDX 451 or DSDI 451 to increase the I/O capacity, making it adaptable for larger systems. Its robust design and advanced features make it ideal for maintaining efficient automation processes and ensuring precise control of industrial equipment.
