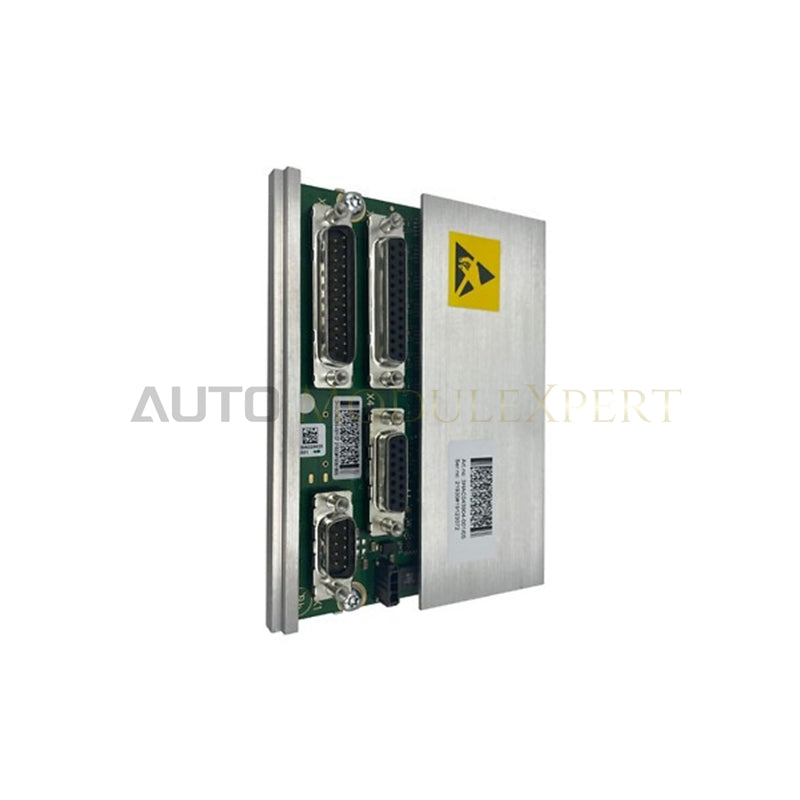

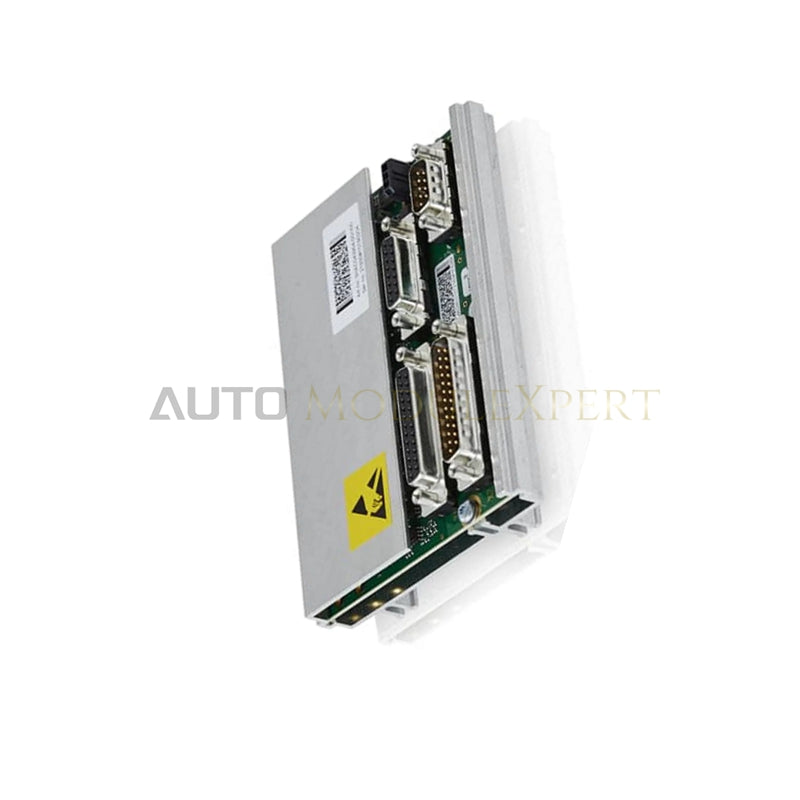

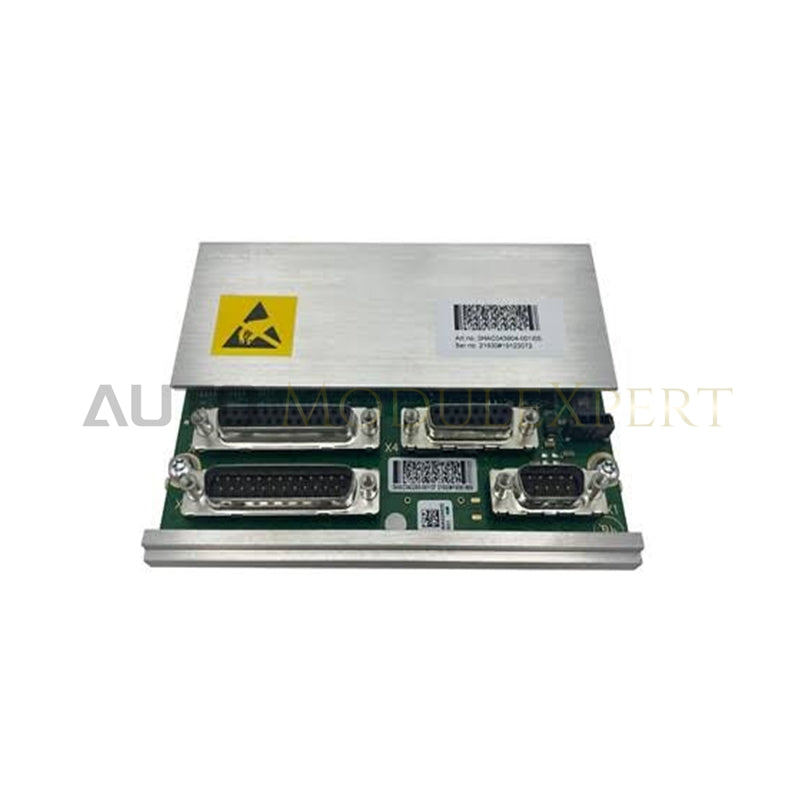

ABB DSQC633C 3HAC043904-001 SMB Board Module Assembly
The ABB 3HAC043904-001, also cataloged as the DSQC633C I/O Communication Board, operates as a dedicated hardware component for digital and analog signal conversion and fieldbus feedback processing within ABB IRC5 Robot Controller platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSQC633C (3HAC043904-001) |
| Brand | ABB |
| Origin | Sweden / Germany |
| Weight | 0.50 kg |
| Dimensions | 250 x 180 x 25 mm |
| Operating Temp | -10 to +55 deg C |
| Power Consumption | 24 VDC from internal cabinet supply rail |
| Module Type | SMB Board Module / I/O Communication Board |
| Controller Compatibility | ABB IRC5 Systems (M2004 and later) |
| Digital I/O Density | 32 Digital Inputs (24 VDC), 32 Digital Outputs (24 VDC, 0.5 A) |
| Analog I/O Channels | 4 Analog Inputs (+/-10 V or 4-20 mA), 4 Analog Outputs (+/-10 V) |
| Communication Protocols | CAN bus, internal IRC5 backplane bus |
| Diagnostics | Status LEDs for power, communication, and fault monitoring |
Deterministic Backplane Bus Communication
The DSQC639 processing platform pairs with peripheral I/O modules like the DSQC633C to manage deterministic backplane bus communication across internal CAN bus interfaces. The board manages high-density discrete and analog signals, allowing real-time I/O density scaling between the central controller and peripheral end-effectors. Firmware flash compatibility within the ABB RobotWare environment ensures seamless parameter mapping and synchronization across the backplane network.
Frequently Asked Questions
Q: How does the DSQC633C module interface with external digital field devices? A: The board provides 32 sinking/sourcing 24 VDC digital inputs and 32 transistor outputs rated at 0.5 A per channel, routed directly through terminal block interfaces to sensor arrays and actuators.
Q: What power isolation measures apply to the analog input and output channels? A: Analog channels support configurable range modes (+/-10 V or 4-20 mA) with internal signal conditioning to suppress high-frequency electromagnetic interference before transmitting data across the backplane.
Q: Is hot-swapping supported when replacing a damaged DSQC633C board? A: No, technicians must completely isolate 24 VDC system power to the IRC5 controller cabinet prior to removing or inserting the board assembly to avoid damaging onboard CAN transceiver components.
Field Installation Guidelines
Ensure main electrical isolation to the IRC5 controller cabinet is complete and locked out before opening the access enclosure. Connect a grounded ESD wrist strap to the metal chassis framework to prevent electrostatic discharge to sensitive surface-mount devices. Carefully align the DSQC633C circuit card with the designated rack card guides and press firmly until the backplane edge connector seats fully into its mating receptacle. Secure all mechanical retaining screws to verify frame ground continuity across the board assembly. Reattach external I/O wiring harnesses and verify correct terminal alignment. Reapply 24 VDC power and verify LED indicator states to ensure standard boot completion.
