Description

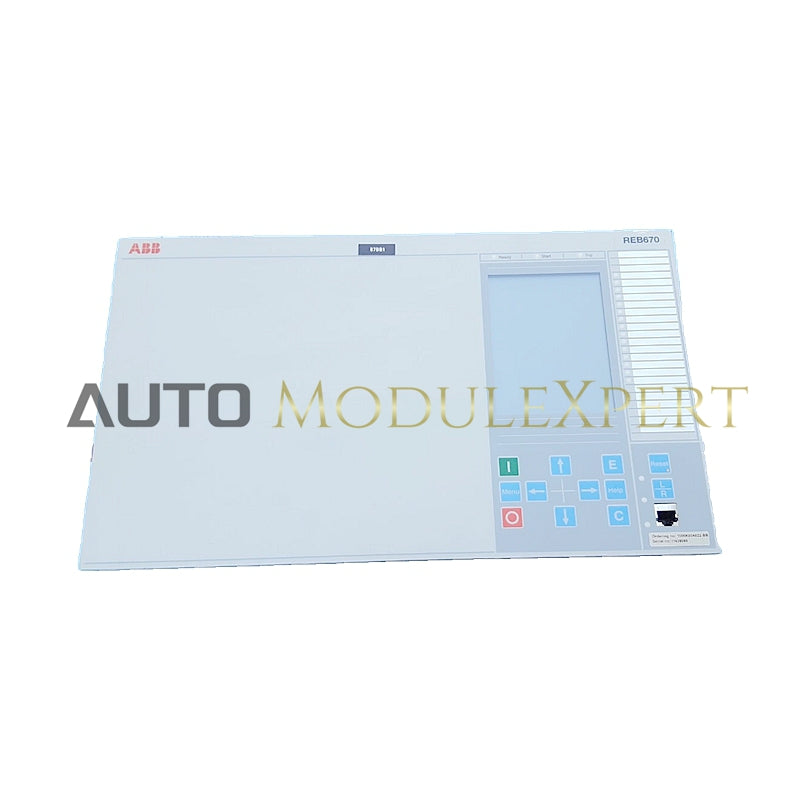

REB670 is a high-performance busbar protection relay designed for complex substation topologies. It supports advanced analog, binary, and auxiliary DC input modules to ensure reliable, fast fault detection and isolation.
Analog Inputs
-
Rated frequency: 50/60 Hz
-
Frequency range: ±10%
-
Rated current Ir: 1 or 5 A
-
Operating range: 0–100 × Ir
-
Thermal withstand:
-
100 × Ir for 1 s
-
30 × Ir for 10 s
-
10 × Ir for 1 min
-
4 × Ir continuously
-
Dynamic withstand: 250 × Ir (one half wave)
-
Burden:
-
< 20 mVA at Ir = 1 A
-
< 150 mVA at Ir = 5 A
Power Supply Module (PSM)
-
Auxiliary DC voltage (EL):
-
(24–60) V DC ±20%
-
(90–250) V DC ±20%
-
Power consumption: Typically 50 W
-
In-rush current: < 10 A during 0.1 s
-
Supply interruption bridging time: < 50 ms
Binary Inputs and Outputs
-
Binary inputs: 16 channels
-
Rated DC voltage (RL):
-
24/30 V DC ±20%
-
48/60 V DC ±20%
-
110/125 V DC ±20%
-
220/250 V DC ±20%
Dimensions
-
Width: 483 mm (19 in.)
-
Height: 132 mm (5.2 in.)
-
Depth: 215 mm (8.5 in.)
