Product Overview

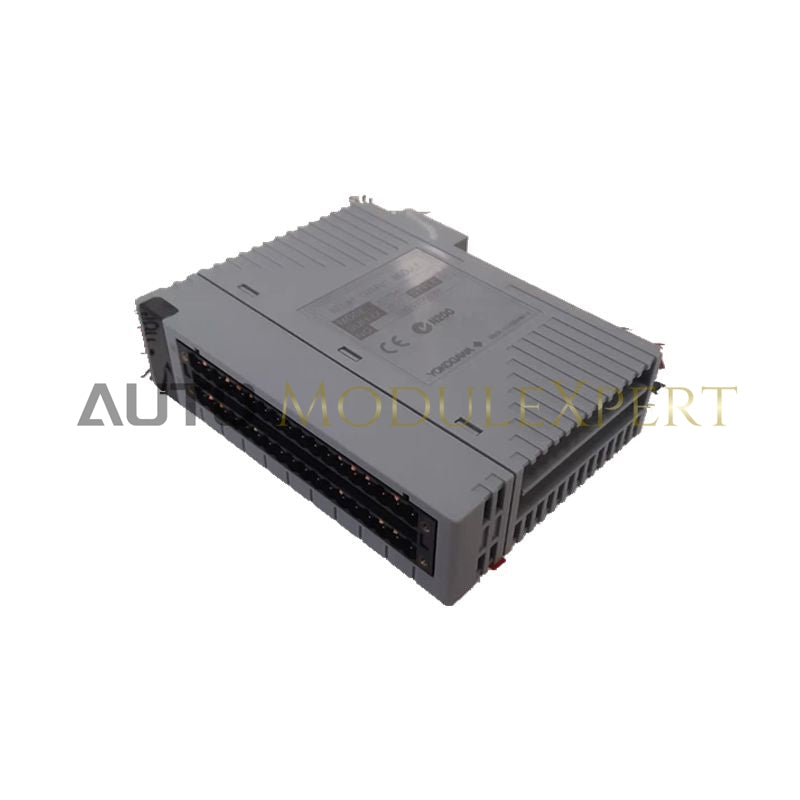

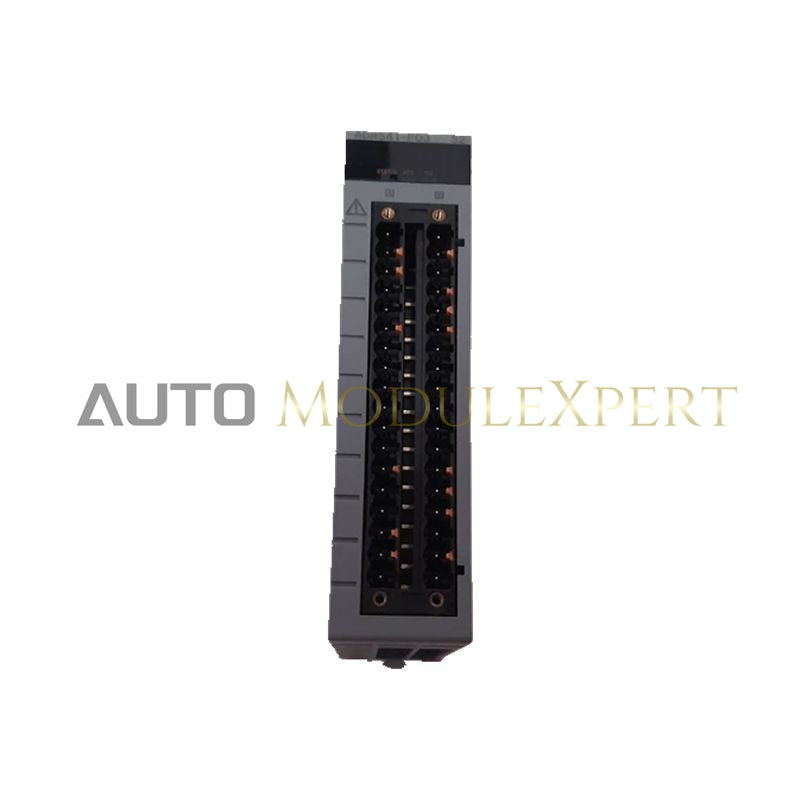

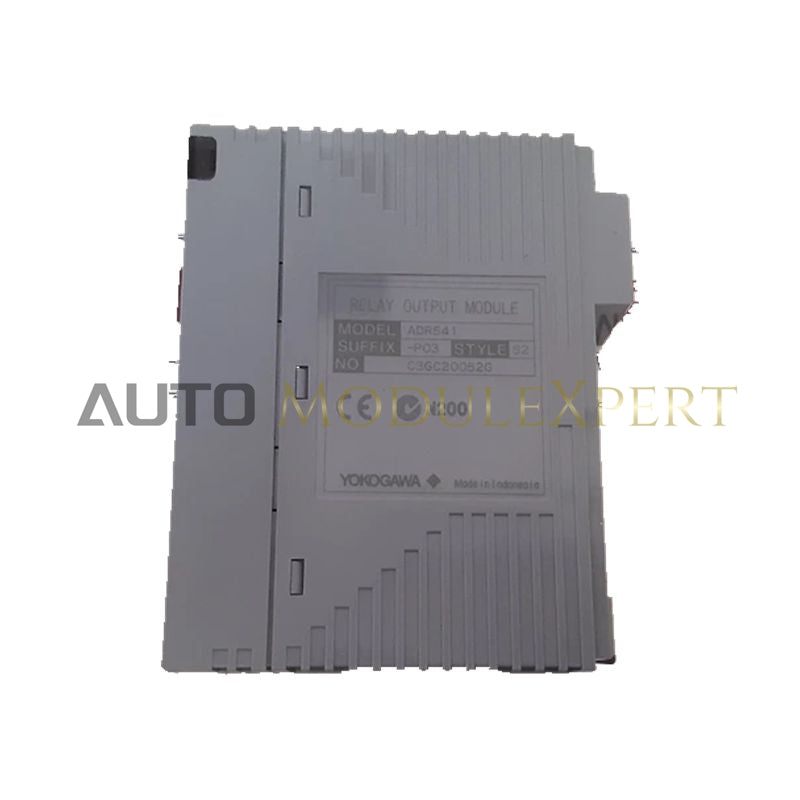

The ADR541-P50 is a high-density relay output module designed for the Yokogawa Electric Corporation CENTUM VP platform within the FIO (Field I/O) architecture.

This module provides 16 isolated relay output channels, enabling reliable interfacing between low-level digital control logic and high-power field devices such as:

• Motor starters

• Solenoid valves (SOVs)

• Alarm indicators

• Interposing relays

Unlike solid-state digital output modules, the ADR541-P50 uses mechanical relay contacts, ensuring robust galvanic isolation between system electronics and field loads. This makes it ideal for higher voltage and current switching applications.

Technical Specifications

Application Scenarios

Interlock & ESD Systems
Used for safely tripping power circuits or activating emergency shutdown (ESD) final elements.

Field Actuation
Direct switching of solenoid-operated valves in fluid processing and energy systems.

Heavy-Duty Signaling
Driving high-intensity stack lights, alarms, and audible sirens in large industrial plants.

Mechanical relay isolation makes the ADR541-P50 particularly suitable for high-voltage, high-current switching where electrical separation is critical.

Technical FAQ

Does the ADR541-P50 support hot-swapping?
Yes. The module can be replaced online while the controller is running, provided the FIO node is configured for redundancy and proper field-side safety procedures are followed.

Is there a minimum load requirement?
Yes. A minimum load of 10 mA at 5 V DC is recommended to prevent contact oxidation and ensure long-term switching reliability.

What is the difference between ADR541 and ADV551?
The ADV551 provides solid-state transistor outputs suitable for high-frequency switching. In contrast, the ADR541-P50 uses mechanical relays to handle higher voltage and current loads with galvanic isolation, making it better suited for heavy-duty field applications.
