Product Overview

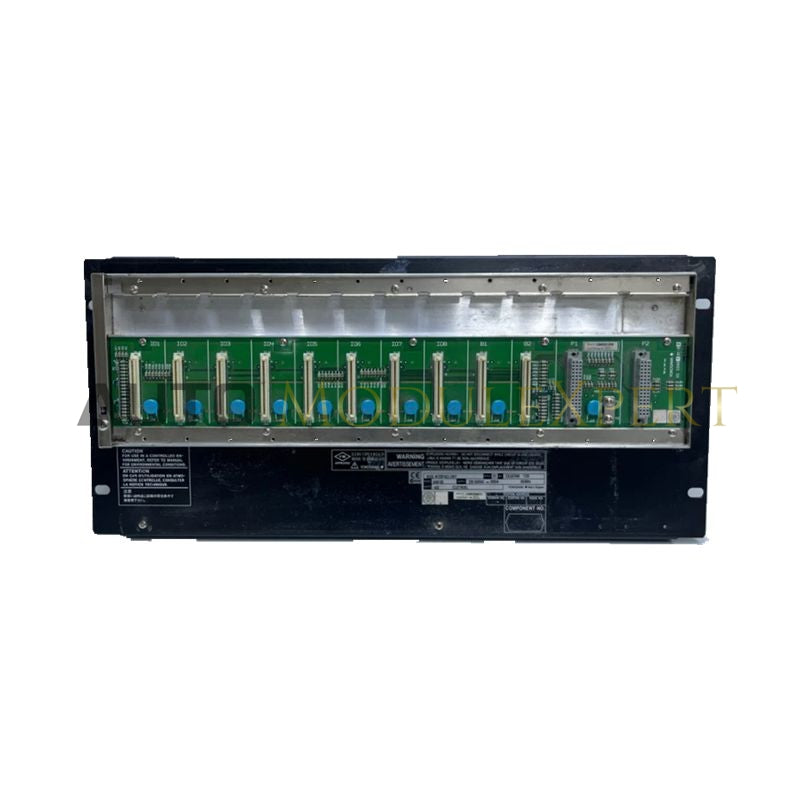

The AFV30D-A41152 is a high-availability Field Control Unit (FCU) for the Yokogawa CENTUM VP system. It features a duplexed design with dual-redundant processors and power supplies to ensure continuous control in mission-critical environments. This unit provides a seamless transition to backup hardware in case of failure, making it ideal for industries requiring high uptime.
Technical Specifications
| Parameter | Specification |
|---|---|
| Processor Redundancy | Dual-redundant CP461 modules in "hot-standby" mode |
| Network Interface | Dual-redundant Vnet/IP ports (1 Gbps) |
| Node Expansion | Supports up to 13 remote/local node units |
| Power Input | 220–240 V AC (50/60 Hz) |
| Power Consumption | 230 VA under full load |
| Memory Protection | 72 hours RAM retention with 48-hour recharge |
| Environmental Compliance | Meets ISA G3 standards; explosion-proof option available |
| Diagnostic Interface | Optional /HKU (House Keeping Unit) for cabinet health monitoring |
| Physical Form Factor | 5U height for 19-inch rack mounting |
| Dimensions (H×W×D) | 207 mm × 482.6 mm × 465.1 mm |
| Net Weight | 8.0 kg |
System Integration FAQ
Required software version?
Requires CENTUM VP R6.01 or later.
What does /HKU do?
The /HKU monitors cabinet health (e.g., fan speed, temperature) and reports to the Human Interface Station (HIS) for proactive maintenance.
Supports FIO communication?
Yes, it handles signal flow between field instruments and the Vnet/IP network via ESB or ER bus.
Functional Comparison: AFV30D vs. AFV30S
-
AFV30D-A41152: Duplexed design with fault tolerance for critical processes.
-
AFV30S: Single processor, suitable for non-critical applications. AFV30D is preferred for high-reliability environments.
| Quick Quotes | Receive price & availability FAST from our dedicated customer service team. |
|---|---|
| Delivery | Expedited, Freight, And International Shipping Available. |
| Condition | 100% New with Original Package |
| Payment | We accept American Express, Discover, MasterCard, PayPal, and Visa. Our site is secured by RapidSSL. |
| Shipping Port | ShangHai, Xiamen |
| Warranty | 12 Months |
| Q: Is Our Pricing Competitive? |
| A: Yes, we collaborate with over 50 countries worldwide. As a top supplier in China, we offer significant discounts based on market trends. |
| Q: What Is the Warranty Period? |
| A: All our new and original products come with a standard one-year warranty. |
| Q: What Payment Methods Do We Accept? |
| A: We require 100% T/T (Telegraphic Transfer) payment before shipping. For items with a lead time, a 30% deposit is needed upfront, and the remaining 70% is due before shipping. If you have a representative in China, you can arrange an RMB transfer through them. |
| Q: What Shipping Methods Do We Use? |
| A: We primarily use FedEx, DHL, UPS, and BRE for shipping. If you have an account with any of these carriers, you can handle shipping directly. We also offer free shipping to China-based freight forwarders. |
| Q: What Is Our Delivery Time? |
| A: Delivery usually takes 1-3 days after receiving the initial payment. For items with a lead time, shipping will occur according to the specified schedule. |
| Q: How Do We Package the Goods? |
| A: We ensure safe packaging with multiple layers of protection. Products are first placed in their original boxes and sealed with labels. A layer of bubble wrap is then added for collision protection during transit. Finally, the items are packed securely in durable boxes. |
| Q: How Can Customers Contact Us and Request a Quote? |
| A: You can reach out to us via email, WhatsApp, WeChat, Skype, or your preferred communication platform. Contact us with your needs, and we'll provide a prompt, customized quote. |
