Description

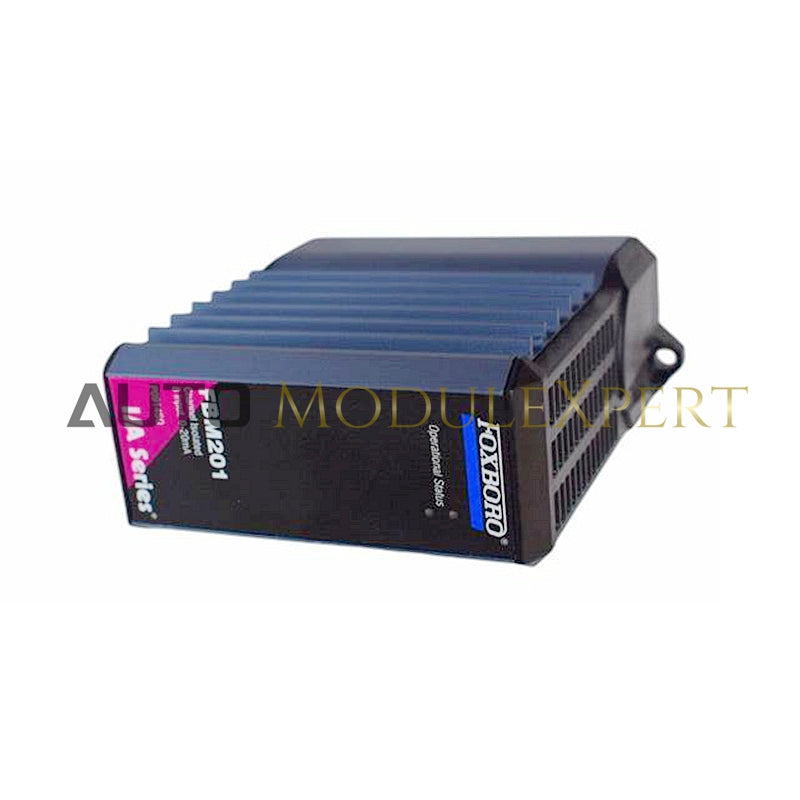

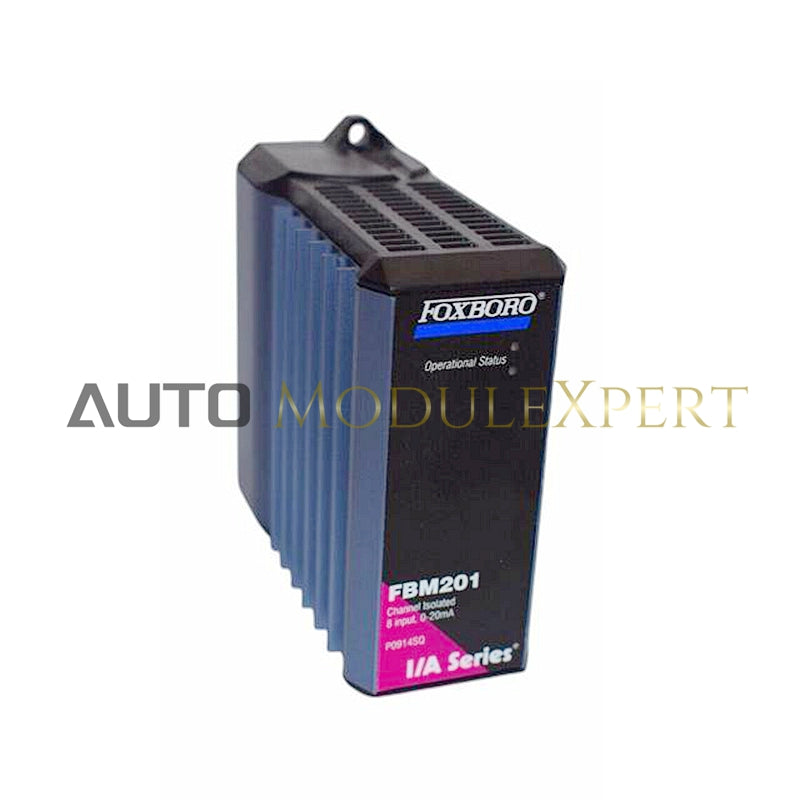

Foxboro FBM201 RH914SQ is an Analog Input Module with 8 isolated input channels, designed for flexible signal ranges and high accuracy. It communicates with its associated FCM or FCP over a redundant 2 Mbps module Fieldbus.
Communication
-
Via redundant 2 Mbps module Fieldbus
Input Channels
-
8 isolated and independent channels
Input Ranges
-
FBM201: 0–20 mA DC
-
FBM201b: 0–100 mV DC
-
FBM201c: 0–5 V DC
-
FBM201d: 0–10 V DC
Accuracy
-
Analog Accuracy: ±0.03% of span
-
Temp. Coefficient: ±50 ppm/°C
Electrical Characteristics
-
Field Device Distance: Function of compliance voltage (22.8 VDC), wire resistance, and voltage drop at field device
-
Input Impedance:
-
FBM201: 61.5 Ω nominal
-
FBM201b/c/d: 10 MΩ
-
A/D Conversion: Independent Sigma-Delta converter per channel
-
Integration Period: Software configurable
-
Common Mode Rejection: >100 dB at 50/60 Hz
-
Normal Mode Rejection: >95 dB at 50/60 Hz
-
Loop Power Supply: Protected
