Product Description

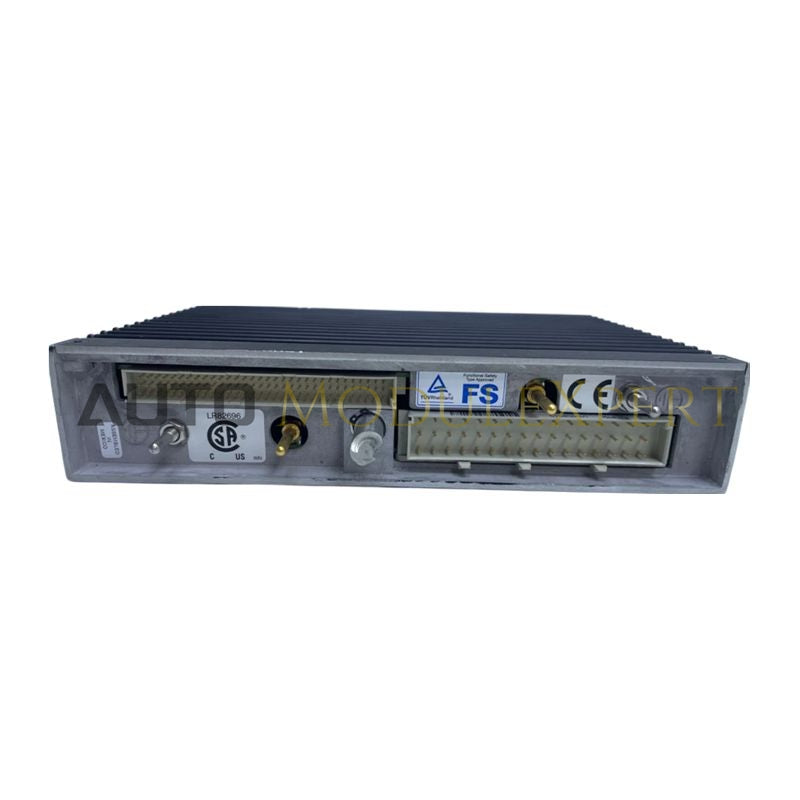

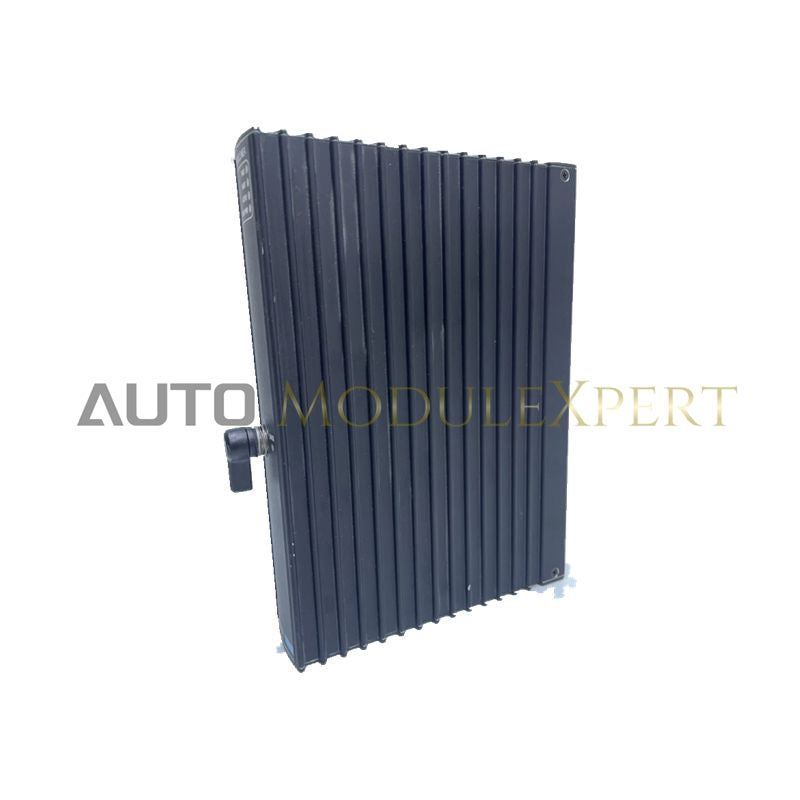

The Triconex 3351 (AI3351 S2) is a high-density analog input module engineered for seamless integration within the Tricon Triple Modular Redundancy (TMR) controller architecture. Designed to interface with standard industrial transmitters, the module converts 4–20 mA analog signals into high-integrity digital data for safety-critical logic execution.
Supporting 32 commoned input points, the AI3351 S2 delivers efficient cabinet utilization for large-scale process monitoring while maintaining the fault-tolerant performance required for SIL 3 safety systems. Each signal is processed through three independent paths to the main processors, ensuring that no single hardware failure can compromise measurement accuracy or system availability.
Key Features
-
High-density design with 32 analog input points
-
Supports standard 4–20 mA industrial transmitters
-
Extended operating range for fault detection (under-range / over-range)
-
16 Hz input bandwidth for stable and noise-resistant measurements
-
Triple Modular Redundant (TMR) internal signal processing
-
Optimized for safety-critical monitoring applications
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Input Points | 32 points, commoned |
| Nominal Signal Range | 4–20 mA DC |
| Absolute Operational Range | 2–22 mA DC |
| Filtering (3 dB Bandwidth) | 16 Hz |
| Input Source Impedance | 180 ohms |
| Module Mass | 1.5 kg |
| Redundancy Level | Triple Modular Redundant (TMR) internal paths |
Applications
-
Pressure, temperature, and flow transmitter monitoring
-
Emergency Shutdown Systems (ESD)
-
Burner Management Systems (BMS)
-
Fire and Gas (F&G) safety systems
-
High-integrity process protection applications
