Product Overview

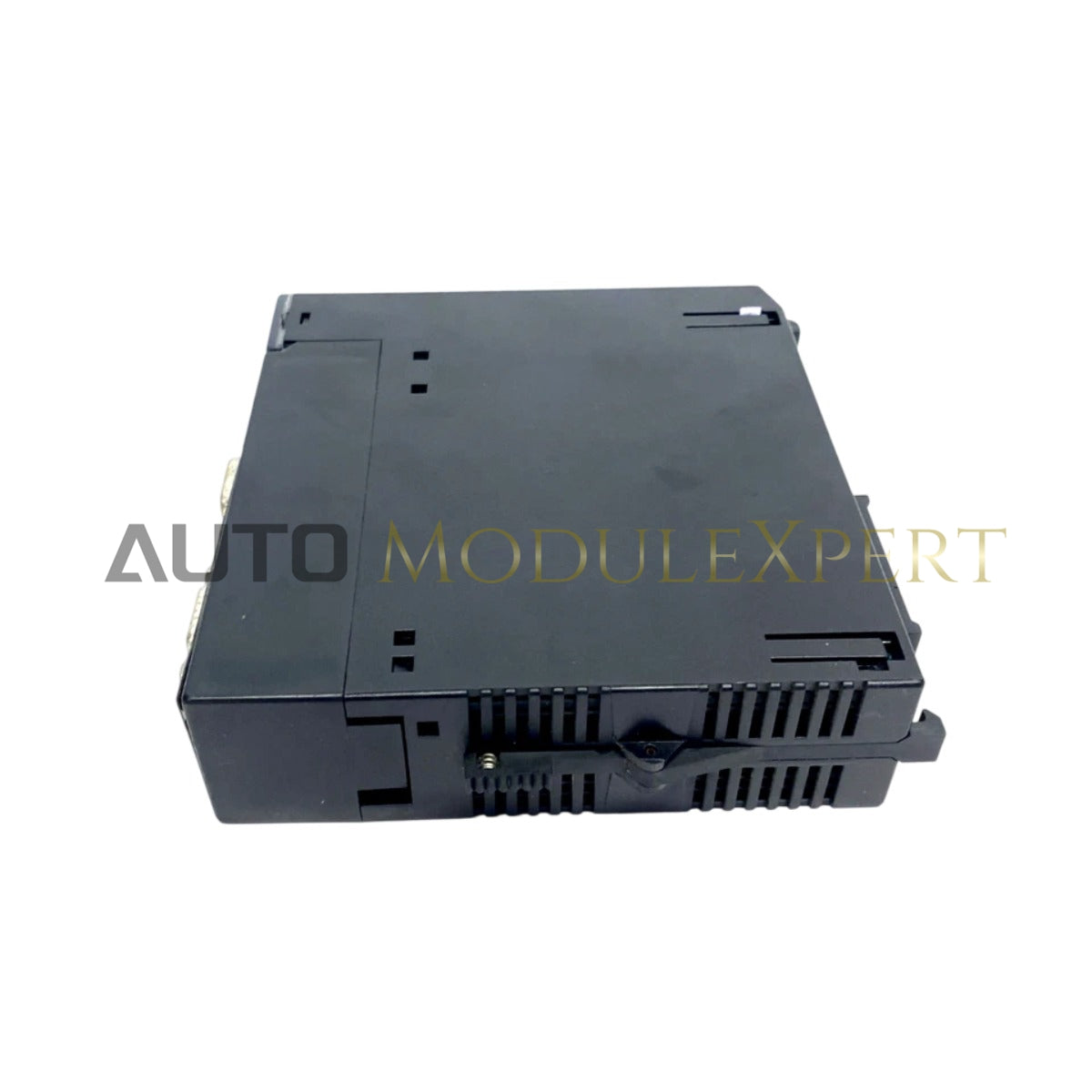

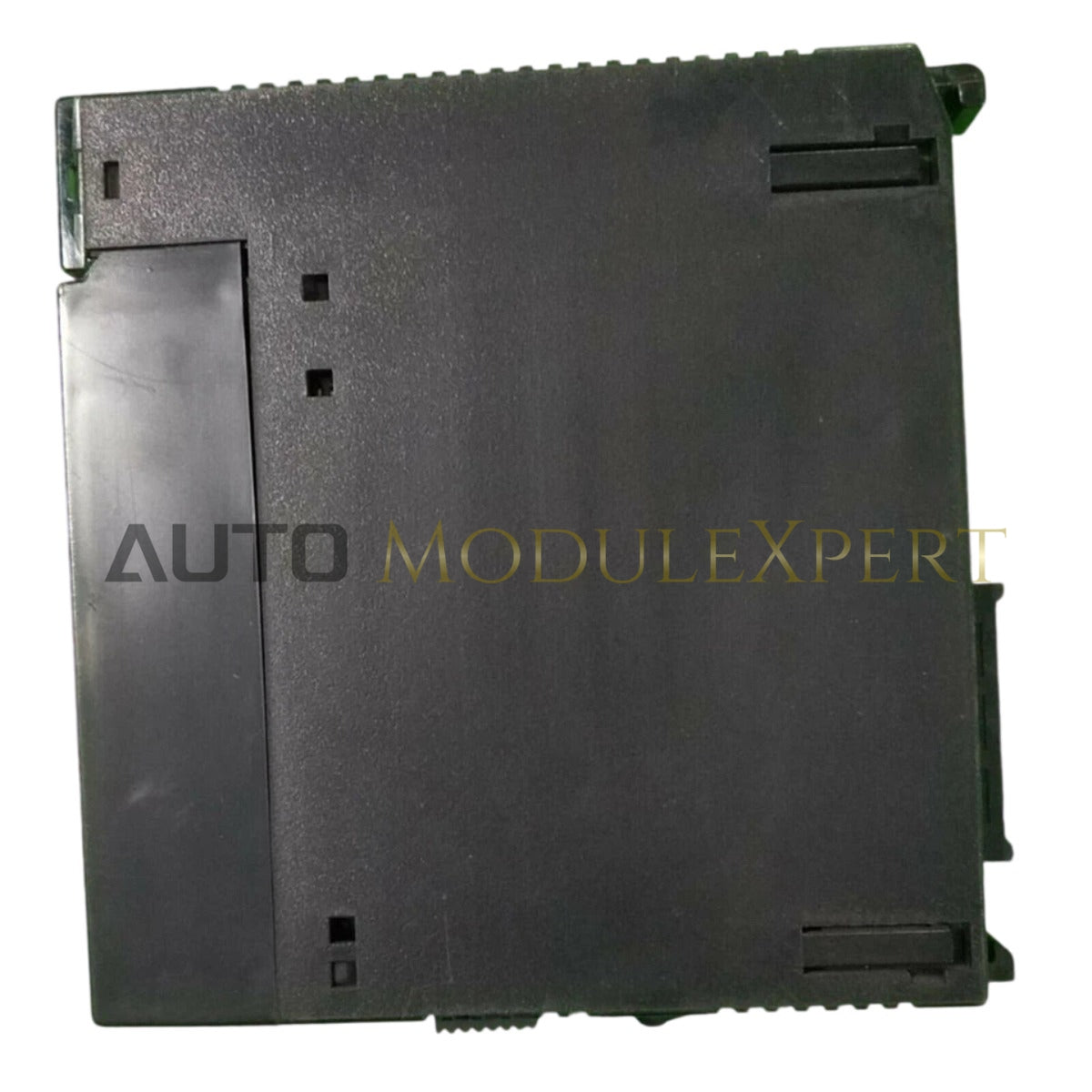

The IC695ALG616-JF is a 16-channel high-density analog input module for the GE PACSystems RX3i platform. This 100% Brand New unit provides high-precision signal acquisition from industrial sensors such as transmitters, flow meters, and temperature devices, enabling accurate process monitoring and control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc / Emerson |
| Series | PACSystems RX3i |
| Module Type | Analog Input Module |
| Channels | 16 single-ended / 8 differential |
| Input Ranges | 0–10V, ±10V, 0–5V, 1–5V, 0–20mA, 4–20mA |
| Resolution | 16-bit |
| Conversion Speed | < 1 ms (all channels) |
| Backplane | PCI 2.2 (RX3i Universal Backplane) |
| Power Consumption | 540 mA @ 3.3 VDC; 300 mA @ 5 VDC |
| Weight | 0.26 kg |
Engineering Advantages
-
16-bit high-resolution signal acquisition for precise measurements
-
Fully software-configurable input types per channel
-
Sub-millisecond data update for fast control applications
-
Built-in diagnostics for open-wire and fault detection
FAQs
Does the IC695ALG616-JF require external power?
Yes. Field devices may require an external 24 VDC supply, while the module itself is powered by the RX3i backplane.
Can voltage and current inputs be mixed?
Yes. Each channel can be independently configured for voltage or current input.
What does the “-JF” revision indicate?
It is a newer hardware revision with improved protection and compatibility with updated RX3i CPUs.
What is the condition of this module?
This unit is supplied as 100% Brand New in original factory-sealed packaging.
