Product Description

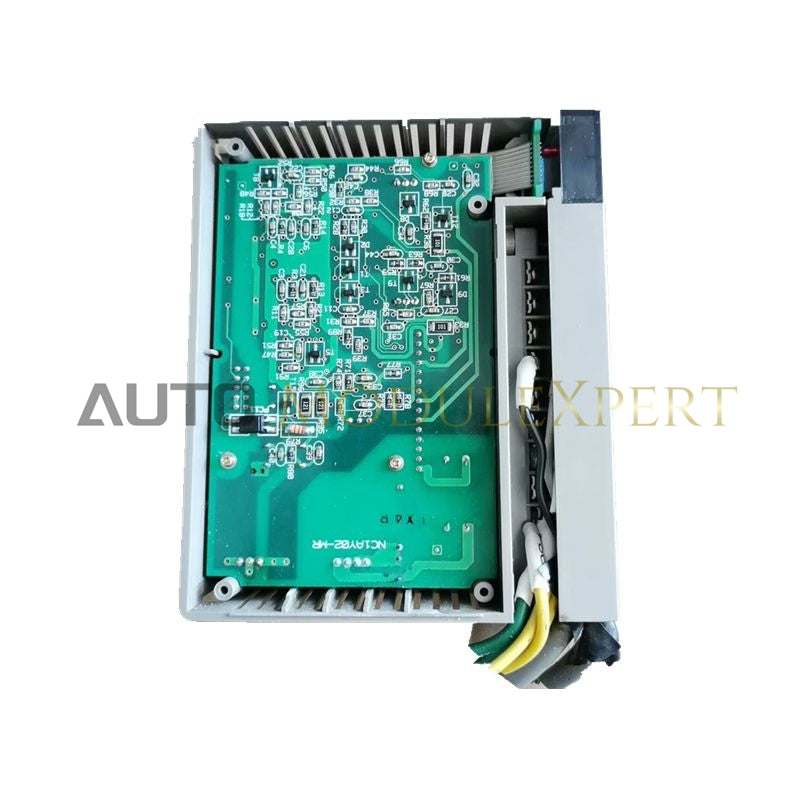

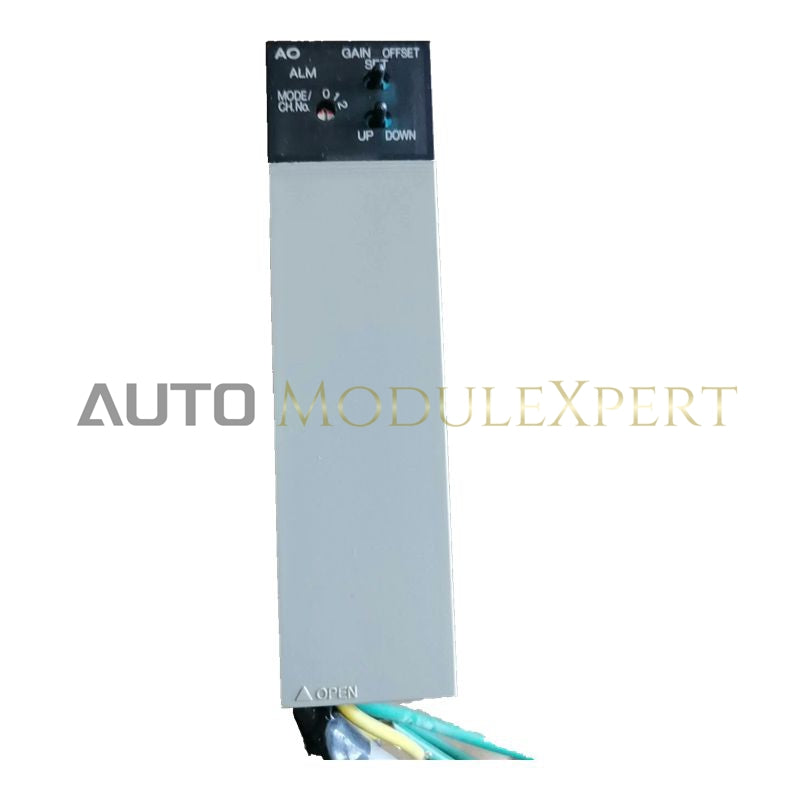

The NC1AY02-MR is a dual-channel analog signal conditioning module for the Yokogawa Centum CS and Centum CS 3000 RIO subsystems. It converts digital control commands from the Field Control Station (FCS) into standard 4-20 mA analog signals for actuators like control valves and VFDs, ensuring precise control in industrial applications.
Technical Specifications
| Specification | Details |
|---|---|
| Model | NC1AY02-MR |
| Output Signal Range | 4-20 mA DC |
| Channels | 2 isolated analog outputs |
| Load Resistance | Max 750 ohms at 20 mA |
| Resolution | 12-bit or higher |
| Accuracy | ±0.1% of full scale |
| Isolation | 1.5 kV AC |
| Temperature | 0°C to +50°C |
| Power | 24V DC from RIO base unit |
Key Use
Ideal for high-precision control in environments with high vibration or EMI, the NC1AY02-MR is widely used in chemical and power industries for PID loop final control.
FAQ
Q: What happens if communication with the FCS is lost?
A: The module can hold the last value or go to a pre-defined fail-safe value (e.g., 4mA).
Q: Is this module suitable for high-impedance loads?
A: It supports up to 750 ohms. For higher loads, a signal repeater or power booster is needed.
