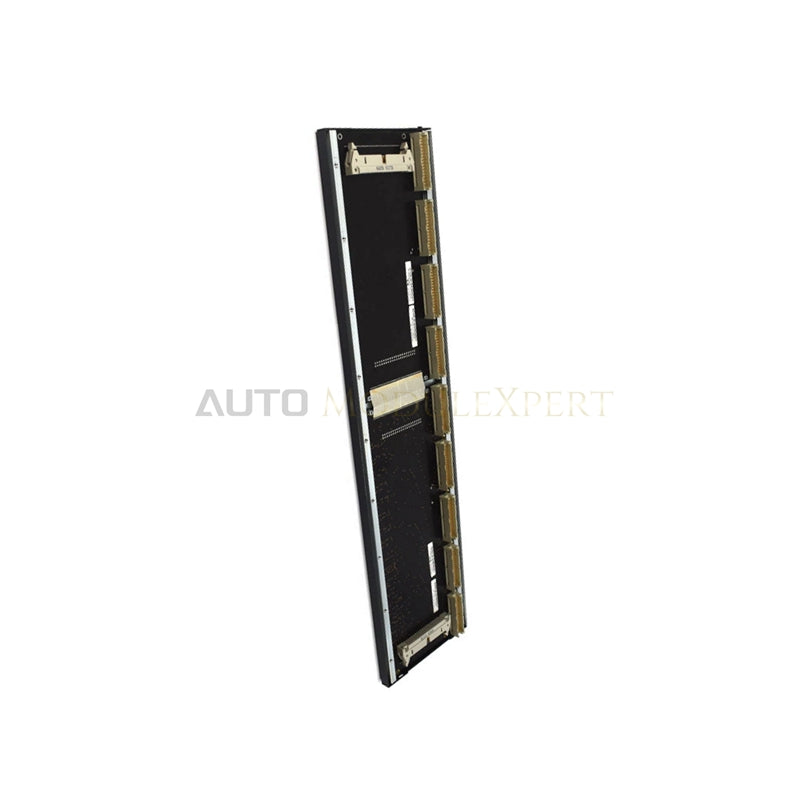

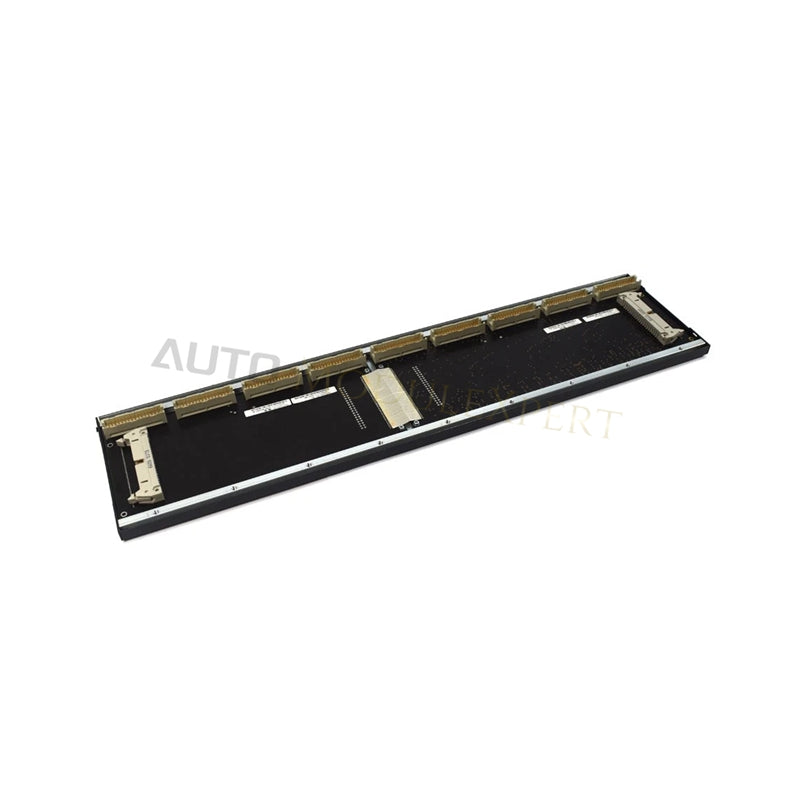

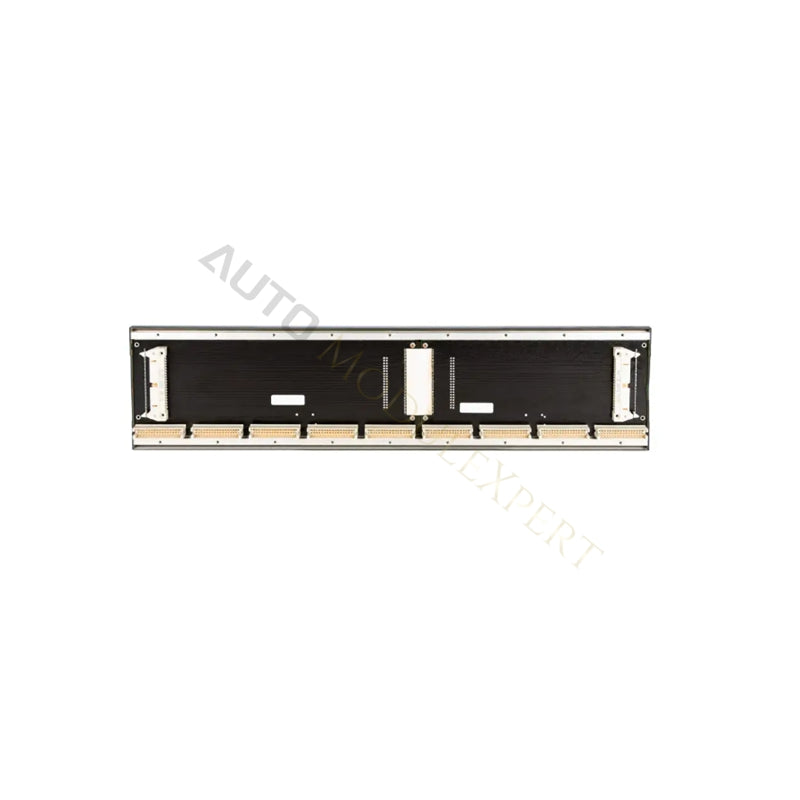

Bachmann BS209 M1 Backplane Module

The Bachmann BS209, also cataloged as the BS209 Backplane Module, operates as a dedicated hardware component for mechanical support and internal bus signal routing within Bachmann M1 Automation System platforms. The 9-slot base plate establishes high-speed backplane power and data connections across power supply modules, CPU units, and expansion I/O cards. Engineered for EN 60715 DIN rail installation, the unit maintains vibration-proof locking mechanisms to secure module interfaces against mechanical shock during continuous operation.

Hardware Specifications

Backplane Bus Communication Velocity & I/O Density Scaling

The Bachmann BS209 maximizes backplane bus communication velocity by maintaining low-impedance copper bus traces across all 9 slots. This bus topology enables deterministic microsecond data transfers between central processing units and attached I/O cards. By scaling I/O density within a single compact footprint, the module eliminates external inter-rack wiring bottlenecks. The hardware interface preserves firmware flash compatibility across installed cards, allowing seamless controller communications without introducing physical signal reflections or latency overhead.

Frequently Asked Questions

Q: How does the BS209 handle protective grounding across installed cards?

A: The backplane incorporates an integrated Class 1 grounding tab that accepts a dedicated protective earth conductor. When installed on an EN 60715 DIN rail, internal spring contacts establish direct grounding paths from each module slot to the central cabinet earth bar.

Q: Are there thermal derating limits associated with vertical mounting orientations?

A: Yes. When technicians install the BS209 in a vertical orientation, the maximum operating temperature limit drops from +60 deg C to +55 deg C to account for natural convection heat dissipation profiles across upper module slots.

Field Installation Guidelines

Mount the BS209 backplane horizontally onto an EN 60715 DIN rail inside the enclosure, ensuring all panel retaining clips snap firmly onto the steel rail profile. Connect a dedicated protective earth copper cable to the bottom grounding tab before installing active modules to ensure proper Class 1 chassis grounding.

Seat each M1 module vertically into its assigned slot position, pushing straight back until the rear multi-pin connector seats completely into the backplane header. Tighten all top and bottom module retaining screws to secure vibration-proof contact points. Maintain a minimum top and bottom clearance of 50 mm around the backplane assembly to ensure unobstructed vertical airflow.
