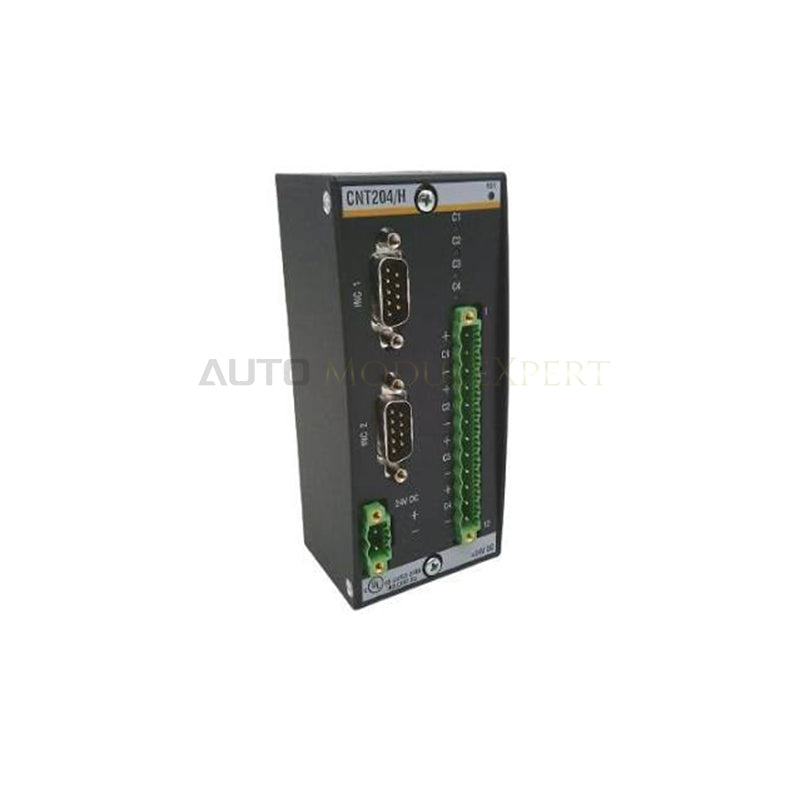

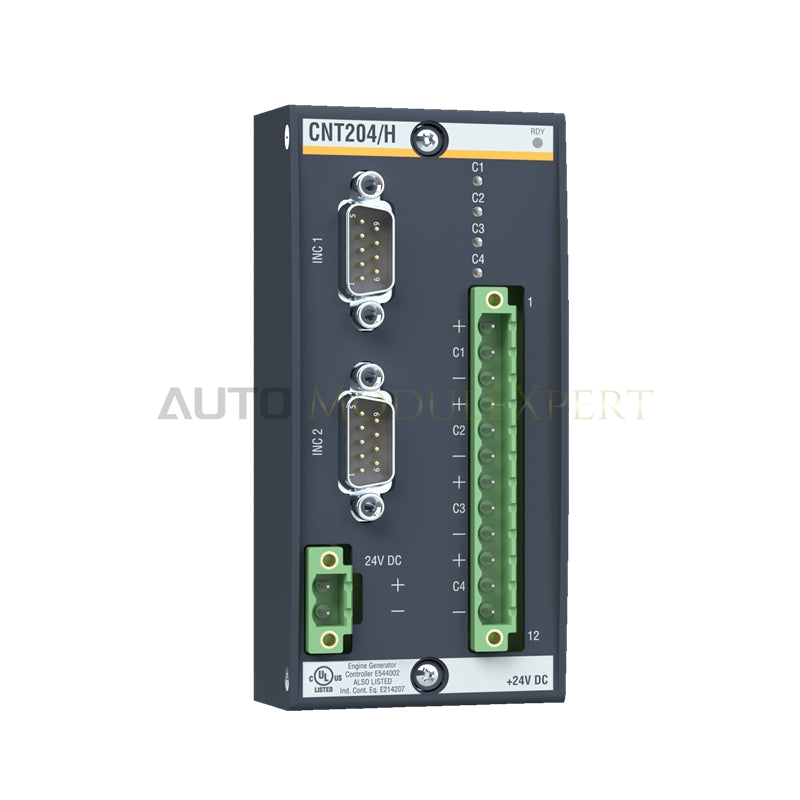

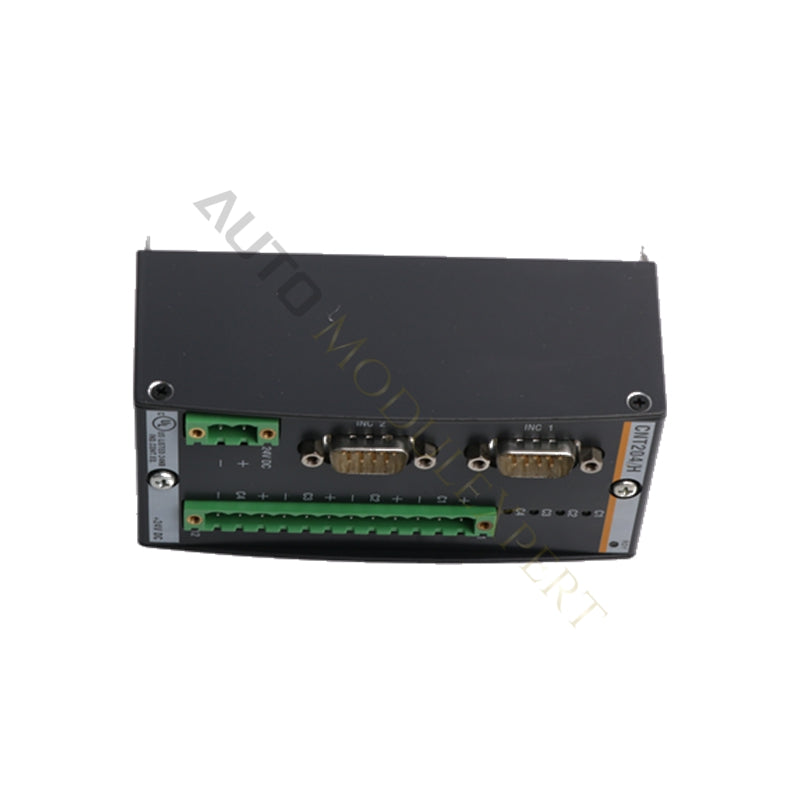

BACHMANN CNT204/R Counter Module

The BACHMANN CNT204/R, also cataloged as the CNT204 Counter Module, operates as a dedicated hardware component for processing incremental encoder signals, measuring frequencies, and counting pulses within Bachmann M1 Automation System platforms.

Hardware Specifications

Deterministic High-Speed Processing & Backplane Synchronization

The module channels high-frequency pulse trains directly into the backplane bus communication velocity Licences protocol, eliminating signal acquisition delays across the central processor. Real-time hardware latches perform edge-triggered data captures with a 42 ns temporal resolution, providing accurate period and phase shift measurement across all active channels. Integrated I/O density scaling allows complex multi-axis encoder feedback systems to operate concurrently without overloading backplane bandwidth. Internal diagnostics monitor both logic supply rails and field-side initiator voltages to maintain total firmware flash compatibility during continuous high-speed counting.

Frequently Asked Questions

Q: How does the hardware handle input signal isolation between the field sensors and the logic bus?

A: Integrated optical isolators establish 500 V galvanic isolation between the field-side input circuitry and the internal controller backplane logic.

Q: Does the module supply power directly to connected incremental encoders?

A: The module features integrated encoder power delivery outputs located directly on the front field terminal connectors.

Q: How are high-speed position events captured without CPU polling overhead?

A: Each counter channel incorporates a dedicated 32-bit hardware latch function that captures counter values instantaneously upon receiving an external trigger signal.

Field Installation Guidelines

Mount the unit directly onto the M1 backplane rail within a grounded NEMA or IP54-rated metal enclosure. De-energize the main 24 VDC power feed prior to inserting or removing the module to prevent electrical arcing across backplane bus contacts. Route incremental encoder and high-frequency pulse lines using individually shielded twisted-pair cables. Clamp cable shields directly to the cabinet ground bar using low-impedance grounding clips, maintaining maximum physical separation between signal wiring and high-voltage AC motor drives.
