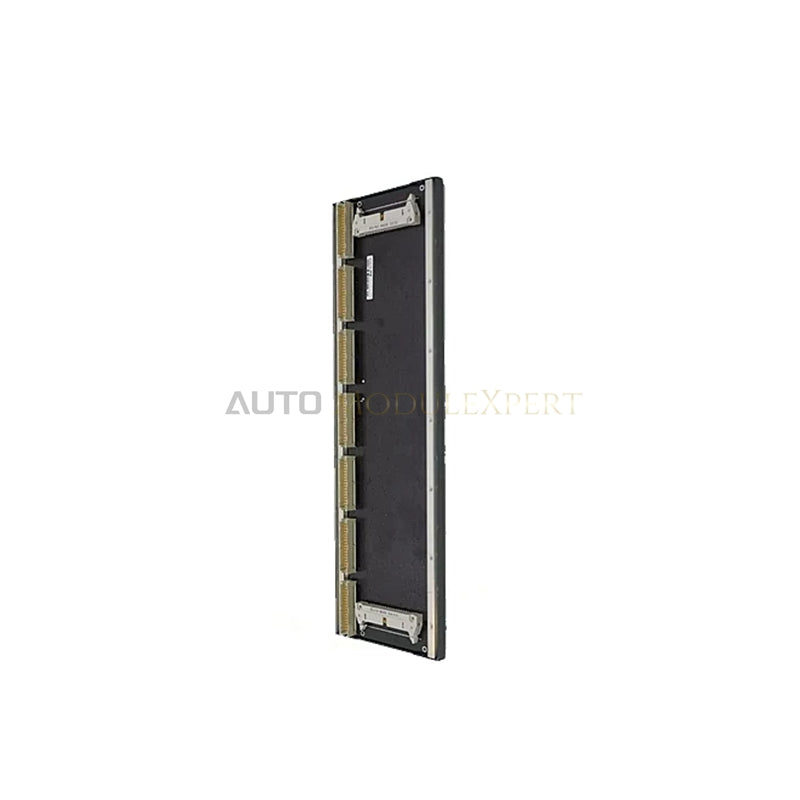

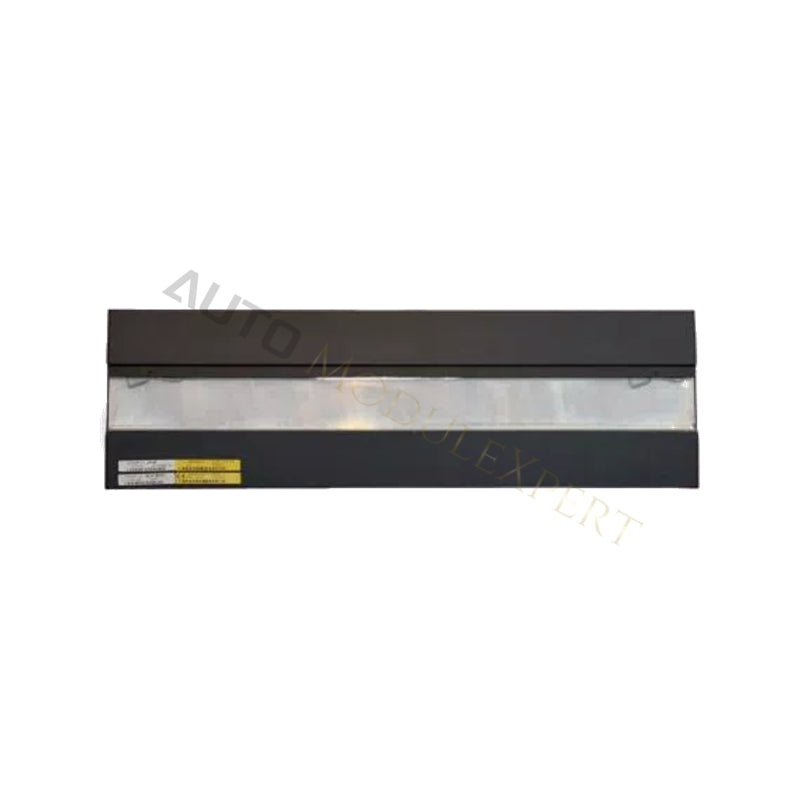

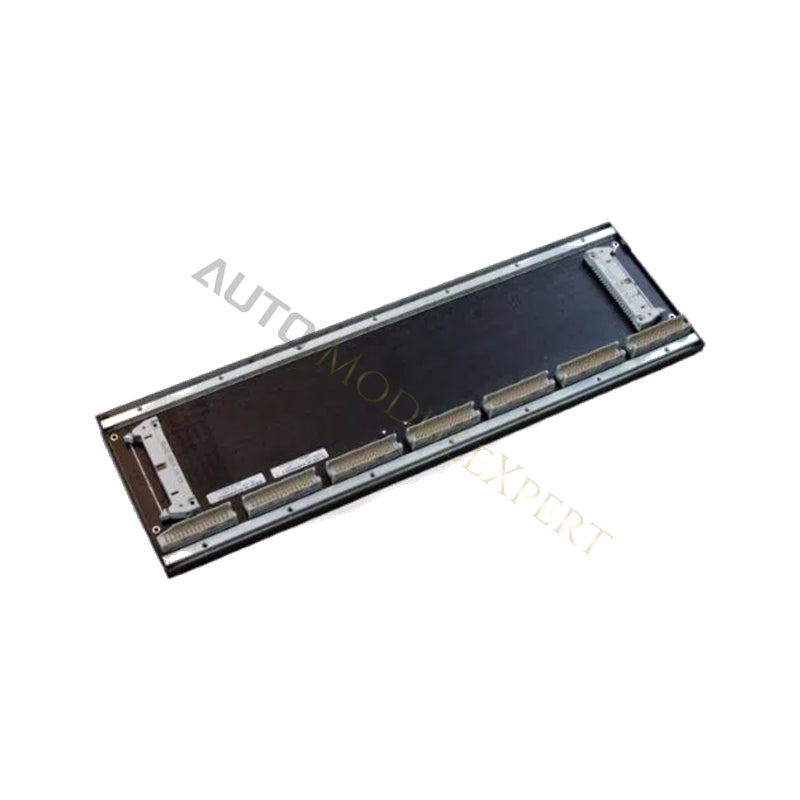

BACHMANN BS207 Bus Module

The BACHMANN BS207, also cataloged as the BS207 Bus Module, operates as a dedicated hardware component for communication backbone routing and power distribution within Bachmann M1 Automation System platforms.

Hardware Specifications

Deterministic Network Scaling & Backplane Interconnects

The bus module establishes internal signal transmission pathways across the backplane bus communication velocity Licences protocol, maintaining continuous link synchronization between the host processor and connected I/O nodes. Dynamic I/O density scaling allows control racks to expand rapidly without introducing transmission delays or voltage drops across adjacent slots. Integrated optical isolation elements maintain physical loop separation to ensure firmware flash compatibility across legacy and current-generation system expansion modules.

Frequently Asked Questions

Q: How does the module distribute operating power across connected expansion cards?

A: The unit interfaces directly with the main cabinet supply line to route 24 VDC auxiliary power and regulated logic signals across the M1 system backplane tracks.

Q: What isolation level prevents electrical noise propagation through the system rack?

A: Internal optical barriers provide 500 V galvanic isolation between the internal backplane bus lines and module control logic circuitry.

Q: Can engineers hot-swap modules mounted on the bus unit during continuous system operation?

A: De-energize primary 24 VDC rack power prior to attaching or removing physical bus units to prevent mechanical connector damage and backplane communication interruptions.

Field Installation Guidelines

Mount the base plate securely onto a standard 35 mm DIN rail inside an IP54-rated metal enclosure. Ensure the ground contacts press firmly against the DIN rail to establish low-impedance grounding paths. De-energize all primary 24 VDC power supplies before connecting or disconnecting the module from the backplane rack. Lock adjacent I/O modules tightly into place using the integrated chassis latches to verify physical connector engagement. Route all field wiring separately from internal system bus lines to prevent electromagnetic coupling.
