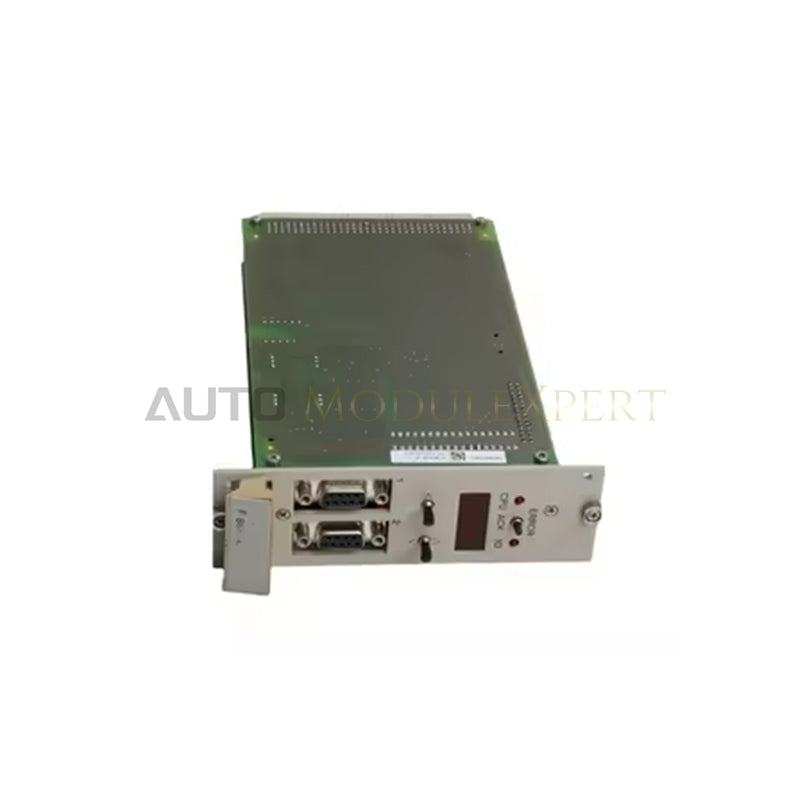

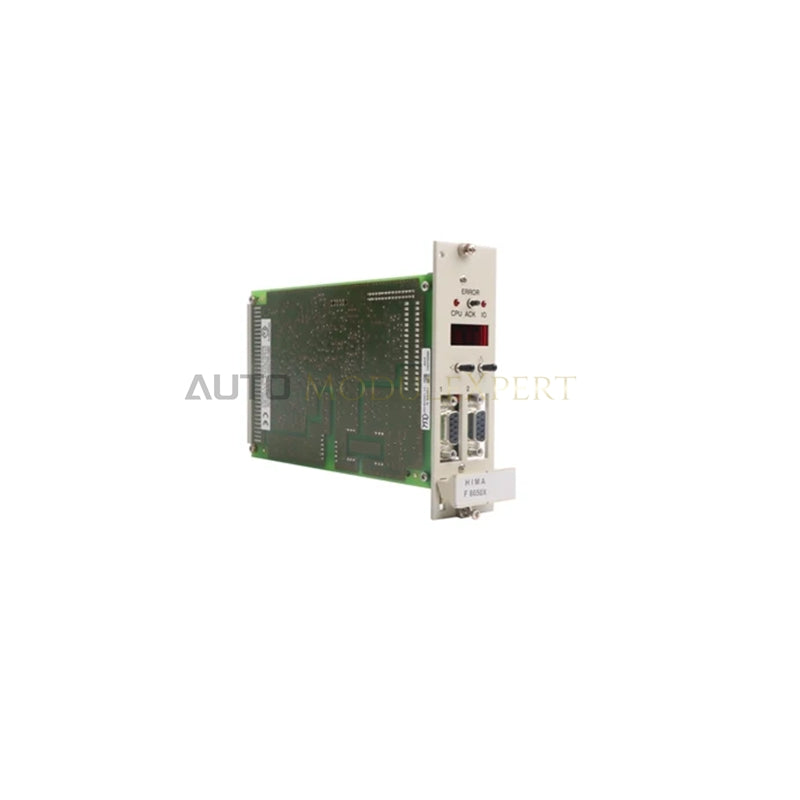

HIMA F 8203 H41q/H51q Communication Module

The HIMA F 8203, also cataloged as the F8203 Communication Module, operates as a dedicated hardware component for serial data exchange within HIMA safety control networks.

Hardware Specifications

SIL3 Certification and Galvanic Isolation

The F 8203 module incorporates multi-channel galvanic isolation barriers that decouple external serial bus lines from internal processing electronics. Integrated optical isolators prevent external surge voltages, noise spikes, and ground loops on RS-232 and RS-485 channels from penetrating the central safety system backplane. Built-in supervisory and diagnostic routines continuously verify communication channel states, ensuring that external serial data transfers cannot compromise the execution of SIL3 certified safety logic within the host HIMA system.

Frequently Asked Questions

Q: How does the galvanic isolation on serial ports protect the host subrack backplane?

A: Optical isolation barriers sever direct electrical continuity between external serial wiring and internal backplane buses, blocking transient voltage spikes and ground loop currents.

Q: What happens to serial communication if an internal processing fault occurs on the F 8203?

A: Onboard diagnostic circuits continuously evaluate module hardware integrity. If an internal fault occurs, the module isolates its serial drivers and drops communication lines into a safe, de-energized state.

Q: Can the F 8203 module be extracted while the surrounding safety system remains energized?

A: Hot-swapping requires verifying that serial communications are offline and that host system configuration parameters permit module removal without interrupting active safety logic routines.

Field Installation Guidelines

Observe strict electrostatic discharge precautions prior to removing the module from its protective packaging. Slide the F 8203 along the subrack card guide rails until the rear multi-pin connector seats firmly into the backplane socket. You must tighten all front panel retention screws to establish chassis frame ground continuity and prevent pin displacement from operational vibration.

Route RS-232 and RS-485 serial cables through independent wiring ducts, maintaining physical separation from high-voltage AC cables and inductive load lines. Connect cable shielding bar terminations directly to the central cabinet earth bus at a single entry point to prevent earth loop currents from degrading serial transmission signals.
