Product Overview

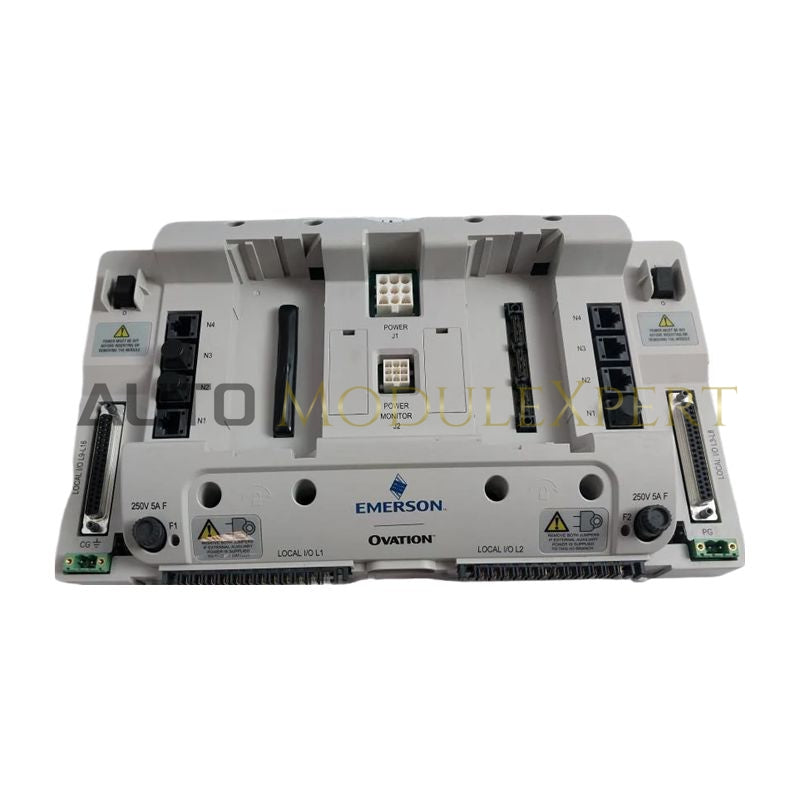

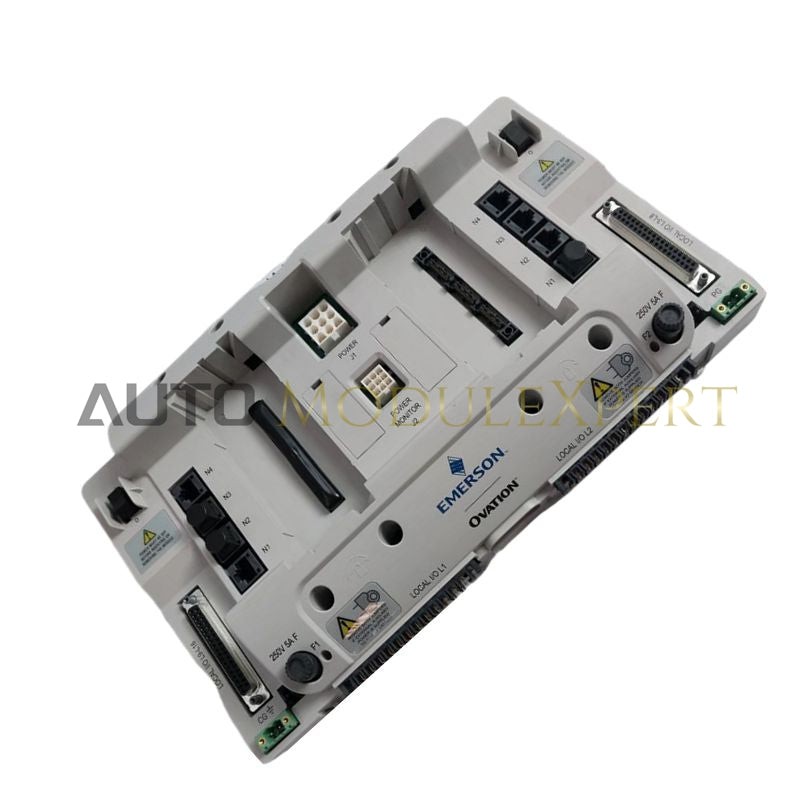

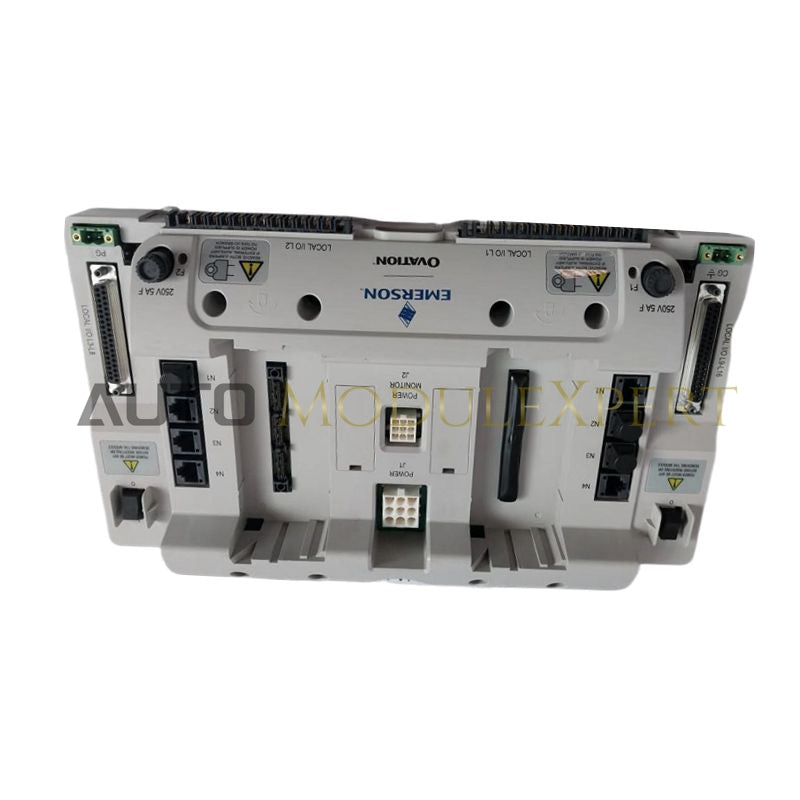

The Emerson Ovation 5X00454G01 Controller Backplane is a critical, foundational component of the Ovation control system. It serves as the physical and electrical backbone of the Ovation chassis, providing the necessary connections for processor, I/O, and communication modules. This backplane plays a vital role by distributing electrical power and routing high-speed data signals between all installed cards, ensuring synchronized communication and reliable operation for the entire distributed control system (DCS).
Key Technical Specifications
| Specification | Detail |
|---|---|
| Model Number | 5X00454G01 |
| Category | Controller Backplane / Chassis Base |
| Function | Provides electrical and communication connections for modules |
| Part Weight | 1.2 kg |
| Interfaces | Multiple slots for Processor, I/O, and Communication Modules |
| Bus Type | High-speed proprietary Ovation Controller Bus |
| Power Distribution | Routes DC power from power supplies to all module slots |
| Physical Size | Specific dimensions for mounting within a standard Ovation chassis |
System Integration and Reliability
The 5X00454G01 is a robust, multi-layer circuit board designed to handle high-speed data traffic and power distribution efficiently. It is the central hub for communication and data transfer between all the modules in the Ovation controller system, ensuring seamless integration and smooth operation across all connected devices.
Key Features:
-
Multi-Slot Design: It provides multiple slots for integrating processor modules, I/O modules, and communication cards, ensuring flexibility in system expansion.
-
High-Speed Communication: The Ovation Controller Bus supports fast data transfer with minimal latency, crucial for real-time system performance.
-
Redundancy Support: The backplane is engineered to support redundant controller configurations, ensuring the reliability and continuity of control operations in case of failure.
-
Power Distribution: Efficiently routes DC power to all module slots, ensuring that all components receive the necessary power to function properly.
-
Secure Connections: The connectors are designed to be vibration-resistant and secure, enhancing the long-term reliability of the system.
System Impact:
-
Central Hub: It is the central nervous system of the Ovation controller, facilitating communication between modules and distributing power efficiently.
-
Enhanced Reliability: With precise engineering and redundancy capabilities, the backplane ensures the stability and reliability of the entire system, even in high-demand industrial environments.
Frequently Asked Questions (FAQ)
Q: What is the condition of the Emerson Ovation 5X00454G01 Backplane?
A: The 5X00454G01 Controller Backplane is brand-new and comes in its original factory packaging.
Q: Is the 5X00454G01 backplane currently in stock?
A: Yes, we currently have the 5X00454G01 backplanes in stock and ready for immediate processing. Orders typically ship within 3 days to 2 weeks, depending on order complexity and volume.
Q: Which shipping methods do you use for the 5X00454G01?
A: We use trusted international logistics providers, such as DHL, to ensure secure and timely delivery of all industrial components.
Q: What is your return policy for the 5X00454G01 if there is a quality issue?
A: We offer a 30-day return policy for any quality-related issues upon arrival.
Q: What is the primary function of the 5X00454G01 in the Ovation system?
A: The 5X00454G01 Controller Backplane provides the physical slots and electrical connections for modules in the Ovation system, routing high-speed Ovation Controller Bus signals and distributing DC power to all connected modules.
