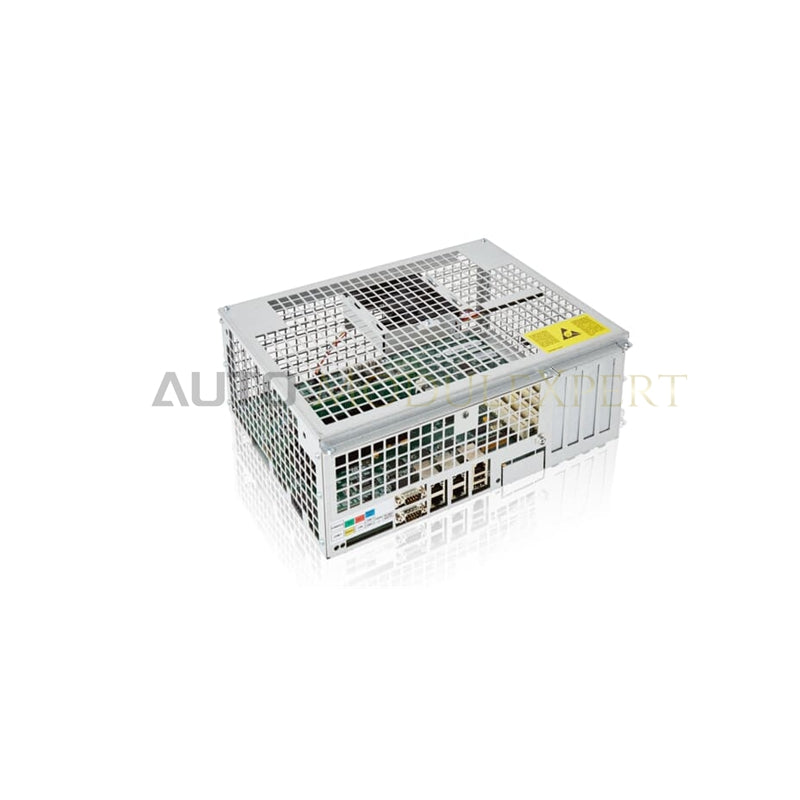

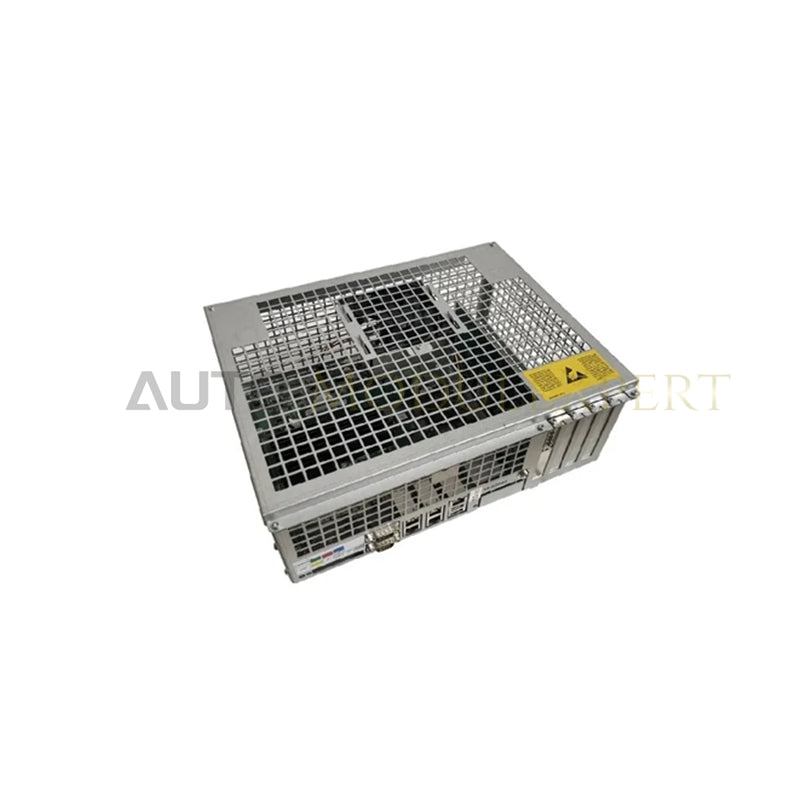

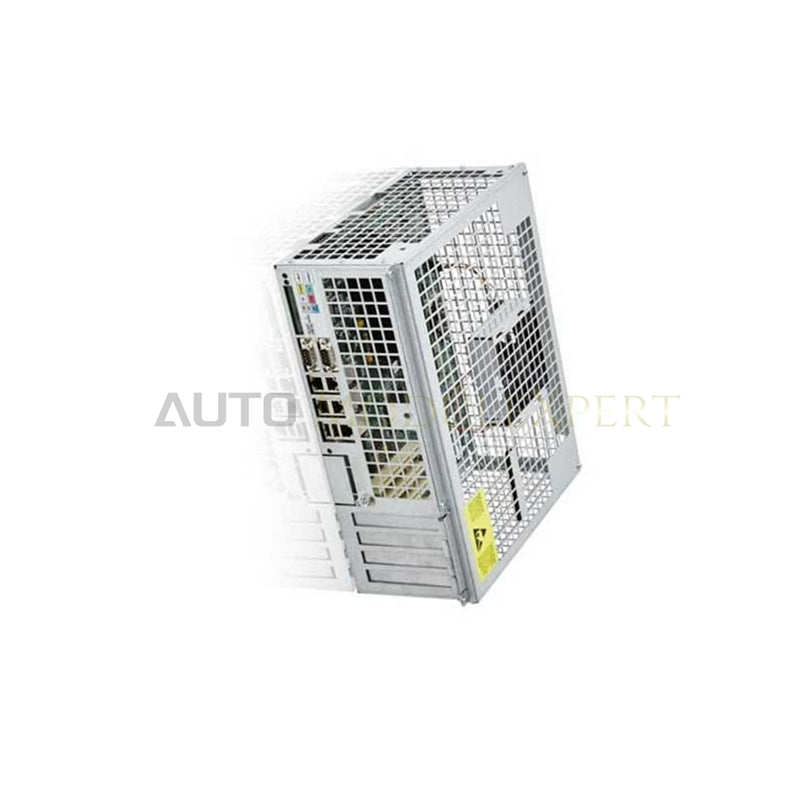

ABB DSQC639 3HNA011342-001 Robot Motherboard
The ABB DSQC639 3HNA011342-001, also cataloged as the DSQC639 CPU Board, operates as a dedicated hardware component for central processing and motion trajectory calculation within IRC5 and IRC5P Paint Controller platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSQC639 (3HNA011342-001) |
| Brand | ABB |
| Origin | Sweden / China |
| Weight | 1.50 to 2.68 kg |
| Dimensions | 337 x 127.2 x 266.5 mm (assembly) |
| Operating Temp | 0 to +55 deg C |
| Power Consumption | Powered via 24 VDC internal supply |
| Board Type | Robot Control Computer Module (CPU Board) |
| System Compatibility | ABB IRC5 and IRC5P Paint Controllers |
| Architecture | Industrial-grade PowerPC processor |
| Peripheral Interfaces | Ethernet, CAN bus, Serial interfaces |
| Enclosure Protection | Industrial PCB with EMI shielding |
Deterministic Backplane Bus Communication
The DSQC639 mainboard manages real-time system instruction execution over high-speed backplane bus paths, directing servo drive commands and external I/O polling loops. Built-in logic regulates data flow across Ethernet and CAN networks to preserve deterministic loop execution times. Onboard memory architecture maintains firmware flash compatibility across ABB RobotStudio revisions, enabling fast synchronization with distributed peripheral units while suppressing signal corruption from nearby high-current motor drives.
Frequently Asked Questions
Q: What critical system processes are performed directly by the DSQC639 CPU module?
A: The mainboard serves as the central processing unit of the IRC5 robot controller, executing RobotWare motion routines, processing kinematics calculations, and managing communication streams between servo drive boards and external fieldbus networks.
Q: Are special software procedures required when swapping out a damaged DSQC639 board?
A: Yes, replacement requires flashing matching system firmware via ABB RobotStudio and restoring system backup files to realign axis calibration data and network parameters.
Q: What electrical input requirements must be verified before powering the motherboard?
A: The board operates on an internal regulated 24 VDC supply rail provided by the IRC5 cabinet power supply; technicians must ensure power supply line stability before system boot.
Field Installation Guidelines
Power down the IRC5 controller cabinet and disconnect all incoming AC mains lines before servicing the card rack. Attach an ESD grounding wrist strap connected to cabinet earth ground to prevent static damage to sensitive microprocessors. Carefully pull the card ejector handles to extract the old module, then slide the DSQC639 board along the enclosure guide channels until rear edge connectors seat into the backplane. Tighten retaining thumbscrews to ensure continuous ground bonding. Connect communication bus cables and reapply cabinet power, monitoring the boot sequence through the status LEDs to verify system initialization.
