Overview

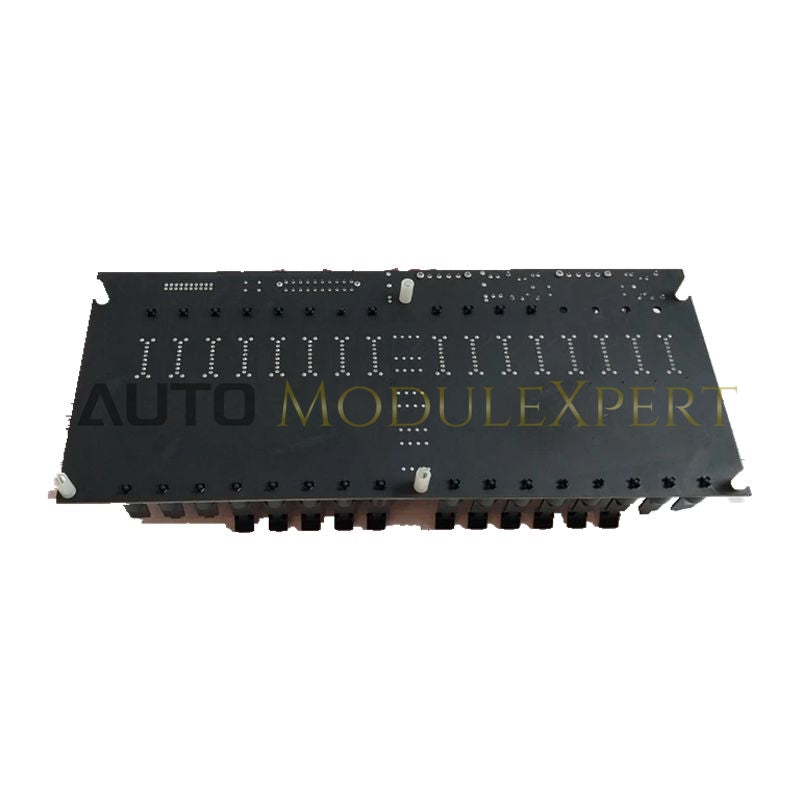

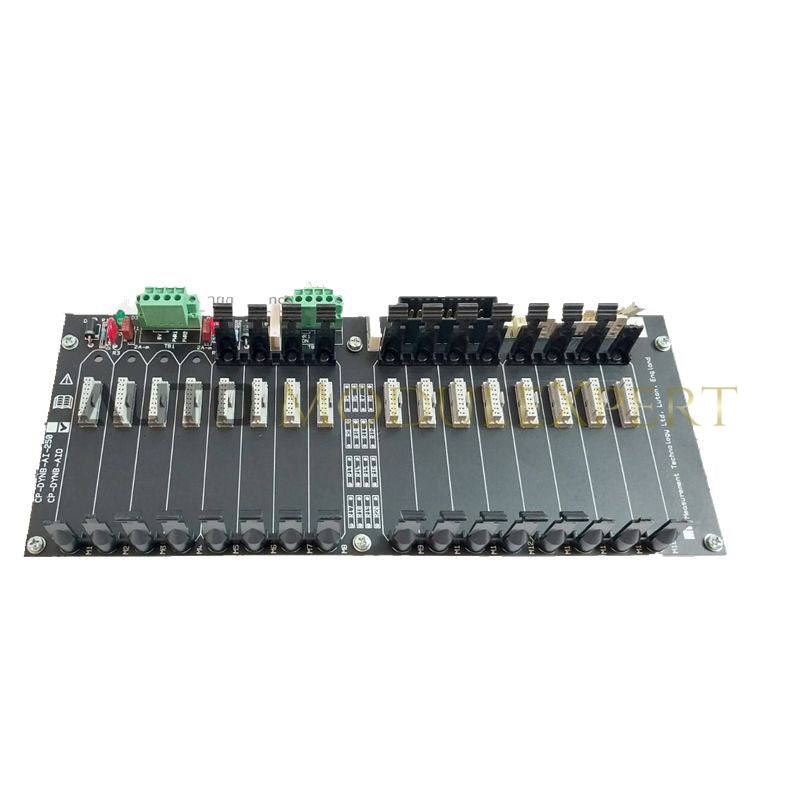

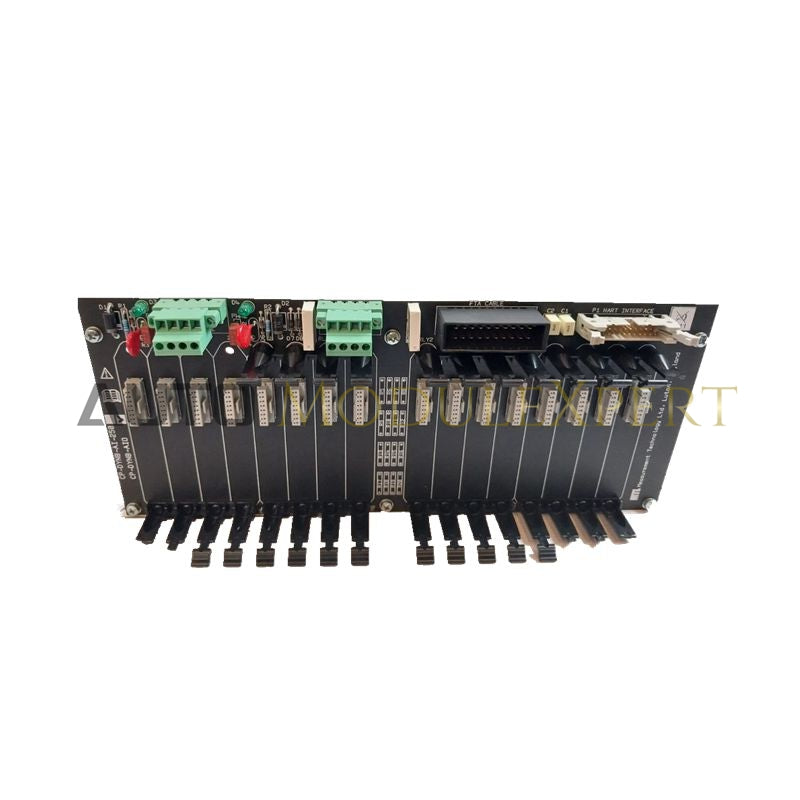

The CP-DYNA-2AIO Baseplate Board is engineered for Honeywell C300 and Safety Manager platforms, while also supporting third-party systems such as Siemens 331/332 and ABB 800xA. It integrates 16 analog input (AI) channels and 16 analog output (AO) channels on a single MTL4500/4600-compatible baseplate, eliminating the need for separate boards.
Honeywell’s dynamic balance technology automatically calibrates zero and gain at power-up, ensuring long-term accuracy of ≤0.1% over five years. The board also features integrated surge protection up to 20 kA, reducing the need for external SPD devices and lowering cabinet component counts by 25%. This design improves reliability and reduces total cost of ownership, making it ideal for continuous process industries.
Technical Data
| Parameter | Specification |
|---|---|
| Model | CP-DYNA-2AIO Baseplate Board |
| Temperature Range | -40 °C to +70 °C |
Typical Applications
-
Hazardous area signal isolation and conditioning for process transmitters.
-
Integration of analog I/O in chemical plants, refineries, and offshore platforms.
-
Precision measurement loops in pharmaceutical and fine chemical production.
-
Control of critical processes such as reactor pH adjustment, tank level interlocks, and compressor anti-surge valve positioning.
For example, offshore operators deploy the CP-DYNA-2AIO to maintain stable measurement accuracy under extreme temperature variations, while EPC contractors benefit from universal compatibility, reducing design complexity and inventory costs.
FAQ
Q1: What makes the CP-DYNA-2AIO unique compared to standard baseplates?
A1: It integrates AI and AO channels with dynamic balance calibration, surge protection, and multi-system compatibility.
Q2: Can it be maintained online without shutting down the process?
A2: Yes, its dual redundant power pin design allows safe replacement during operation, reducing MTTR to under 5 minutes.
Q3: How does it improve project efficiency?
A3: By eliminating point-to-point wiring, it reduces cabinet wiring by over 70% and shortens project delivery cycles.
Q4: Which industries benefit most from this board?
A4: Oil & gas, chemical processing, pharmaceuticals, and offshore platforms rely on its accuracy and reliability.
