Product Description

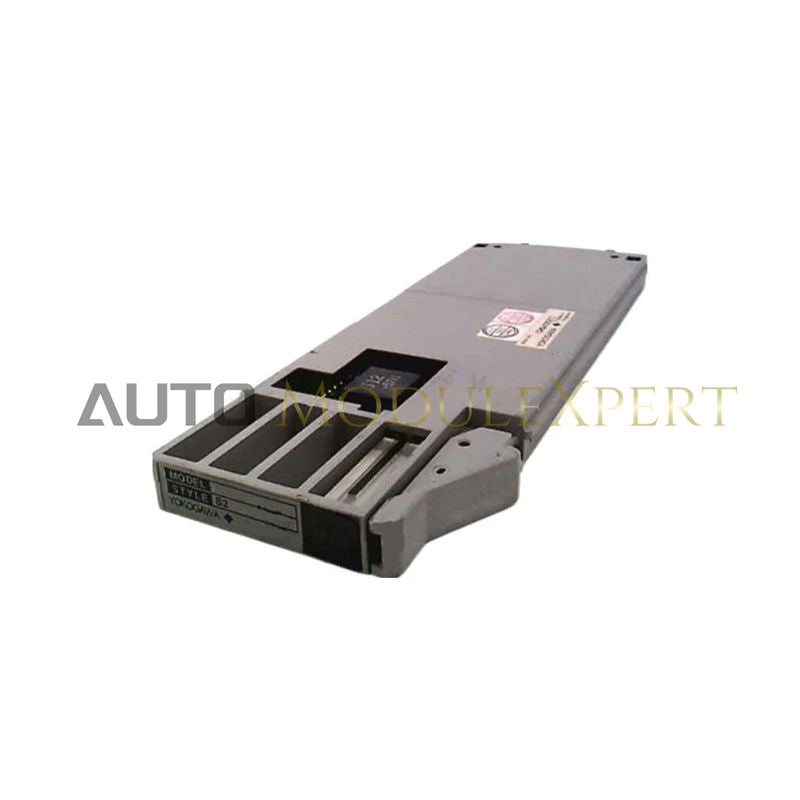

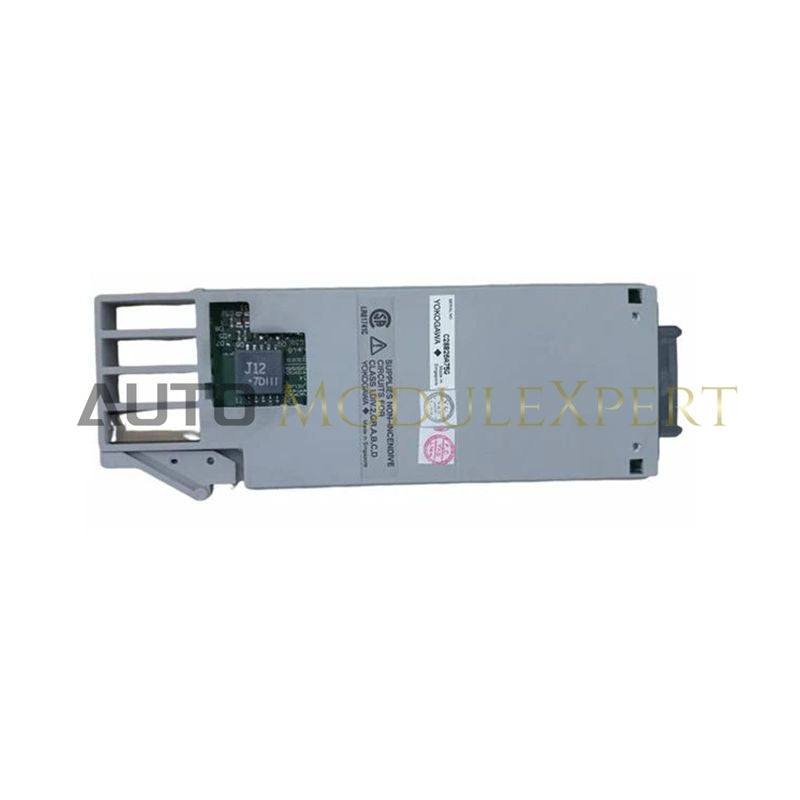

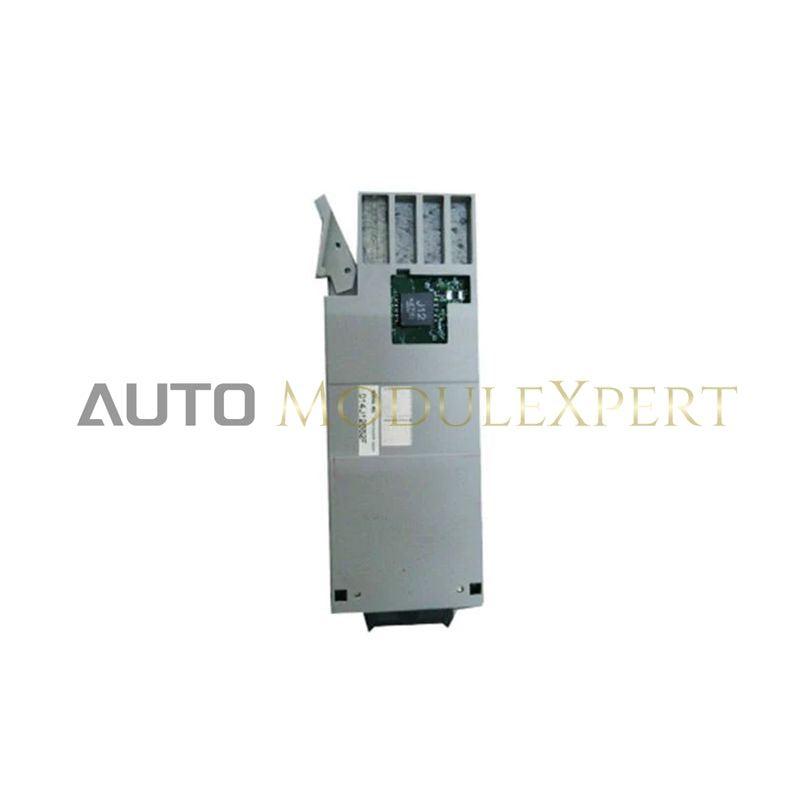

The CSL/AAM10 from Yokogawa is a precision-engineered analog input interface designed for accurate monitoring of both current and voltage signals within industrial control networks. This dual-channel module serves as a reliable data acquisition point for Yokogawa CENTUM CS and CENTUM VP distributed control systems, supporting critical process monitoring tasks across a wide range of industrial applications.
Through the use of high-grade electrical isolation, the CSL/AAM10 effectively minimizes signal interference and eliminates ground loop issues, ensuring dependable data transmission even in environments with significant electromagnetic interference (EMI).
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Yokogawa |
| Model Designation | CSL/AAM10 |
| Device Category | Current / Voltage Input Module |
| System Compatibility | CENTUM CS and CENTUM VP |
| Core Processing | Integrated J12 chipset |
| Input Channels | 2 independent channels |
| Signal Type | Configurable for current or voltage input |
| Signal Isolation | Full electrical isolation between channels and system logic |
| Dimensions | 17.8 cm (L) × 2.5 cm (W) × 7.6 cm (H) |
| Weight | 0.1 kg |
| Operating Temperature | -10°C to 60°C |
Operational Features and Configuration
The CSL/AAM10 is designed for high flexibility in industrial monitoring applications. Each of its two input channels can be individually configured through software to support either current signals (such as 4–20 mA loops) or standard analog voltage inputs, allowing engineers to tailor the module to specific instrumentation requirements.
Its slim physical profile supports high-density installation within Yokogawa I/O nests, helping reduce control cabinet space while maintaining reliable signal processing performance.
The module is commonly deployed in industries requiring high-precision process measurements, including:
-
Chemical and petrochemical processing
-
Power generation facilities
-
Oil and gas production systems
-
Industrial manufacturing plants
Frequently Asked Questions
Does the CSL/AAM10 support both current and voltage on a single channel?
The module contains two independent channels, and each channel can be configured to process either a current or a voltage signal, depending on the connected sensor and system configuration.
Is this module compatible with the latest CENTUM VP hardware?
Yes. The CSL/AAM10 supports seamless integration with both legacy CENTUM CS systems and modern CENTUM VP architectures.
What is the benefit of the J12 chipset in this module?
The J12 chipset enhances signal processing stability and enables faster analog-to-digital conversion, improving the responsiveness and accuracy of the control loop within the DCS environment.
