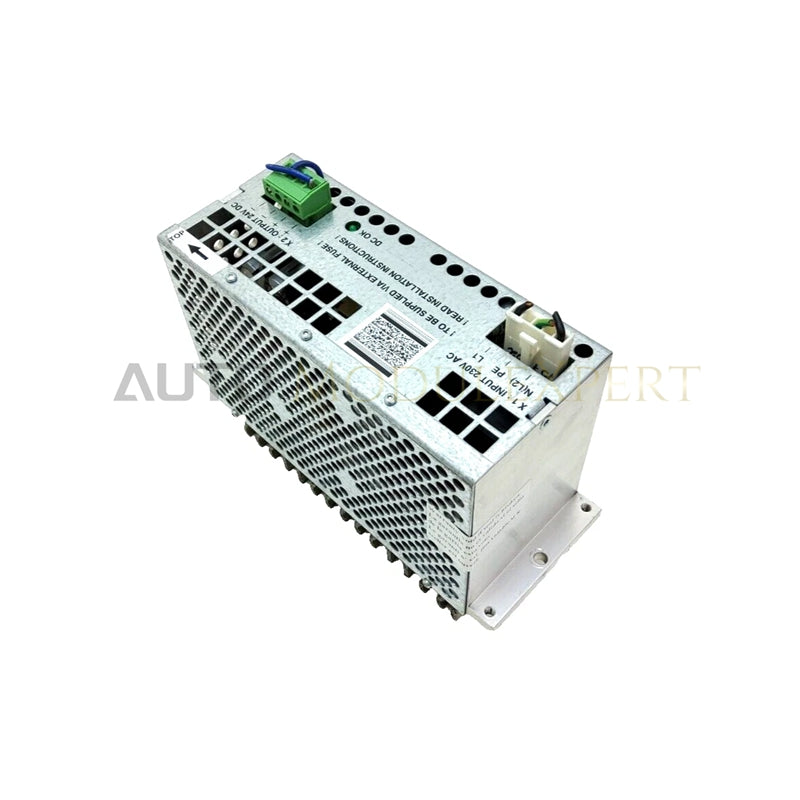

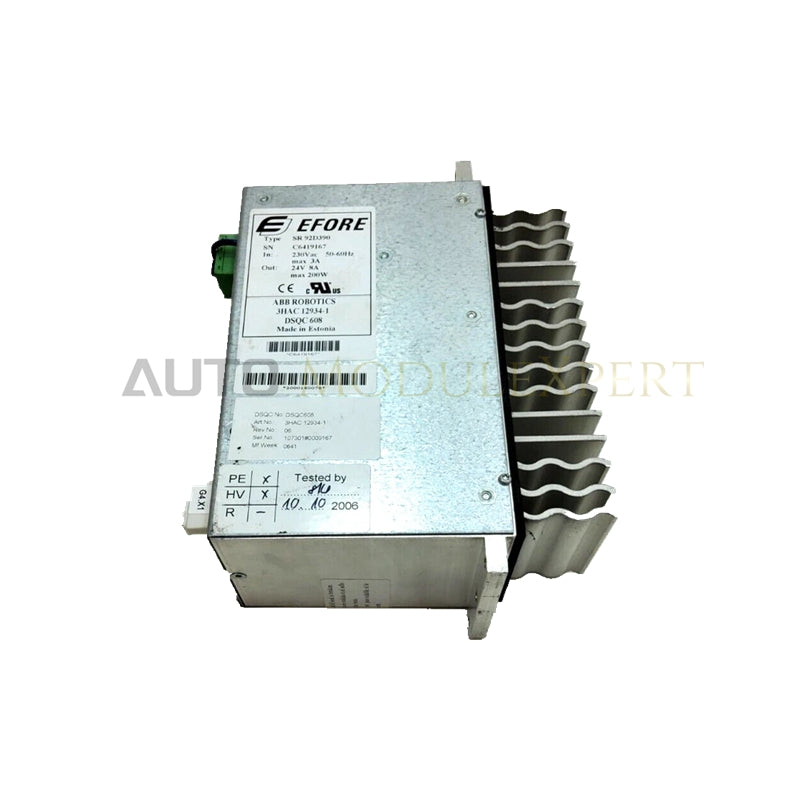

ABB DSQC 608 Customer I/O Power Supply Module

The ABB 3HAC12934-1, also cataloged as the DSQC 608 Customer I/O Power Supply Module, operates as a dedicated hardware component for peripheral power distribution within ABB IRC5 robot controller networks.

Hardware Specifications

I/O Density Scaling & Power Distribution

The module manages high-density peripheral line loads, enabling I/O density scaling across extended field bus drops within the IRC5 control framework. Voltage regulation circuits maintain stable 24 V DC delivery under fluctuating transient current demands from external actuators and sensors, minimizing voltage drop across long wiring runs.

Frequently Asked Questions

Q: Can the DSQC 608 module be installed or removed while the IRC5 controller is energized?

A: No. Hot-insertion or removal is prohibited to prevent backplane bus arc faults and transient spikes on the 24 V DC power distribution rails.

Q: What is the primary electrical function of this module within the controller architecture?

A: It provides isolated 24 V DC power specifically allocated for external customer-side I/O circuits and peripheral automation devices connected to the robot controller.

Field Installation Guidelines

• Enclosure Mounting: Secure the module within the designated rack slot inside the ABB IRC5 controller cabinet using standard mechanical fasteners.
• Wiring & Grounding: Route customer I/O power lines separately from high-voltage motor cables to reduce electromagnetic interference (EMI). Ensure proper shield grounding at the cabinet termination bar.
• Voltage Verification: Verify that input and output terminals measure within the specified 24 V DC operational window prior to enabling system power.
