Product Description

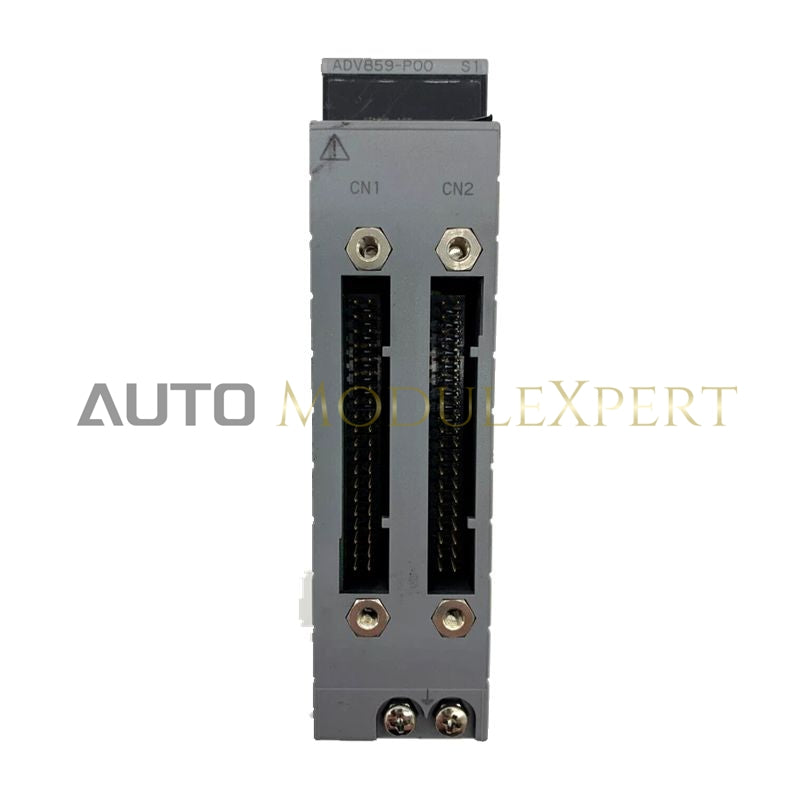

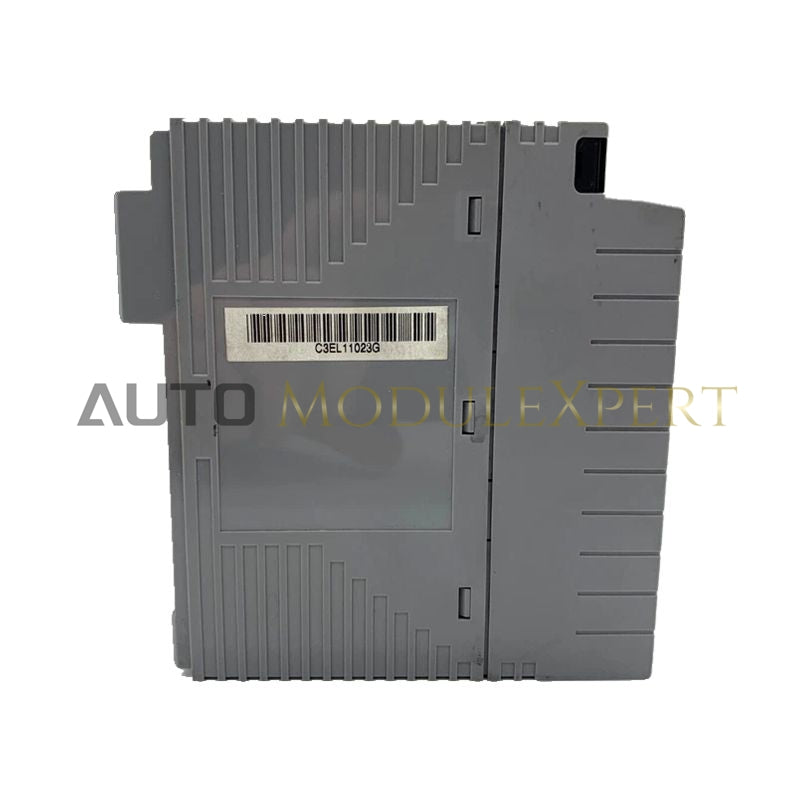

The Yokogawa ADV859-P00 is a hybrid digital I/O module designed for the CENTUM VP and ST system architectures. It combines 16 isolated digital inputs and 16 isolated transistor outputs in a single unit, providing a compact, high-density solution for distributed control nodes, skid-mounted equipment, or applications where rack space is limited.

The module is engineered for high-integrity signal processing, with individual channel isolation preventing electrical noise or faults from propagating between field devices and the system backplane. Its output section supports advanced logic functions, including one-shot pulse outputs and time-proportional control, making it suitable for driving solenoids, relays, or solid-state relays (SSRs) for precise process control.

Technical Specifications

Key Features

• Hybrid I/O Design (16/16): Combines input and output channels in a single module, saving cabinet space and reducing wiring complexity.

• Flexible Input Logic: Accepts both potential-free contacts and voltage-generating signals for broad field device compatibility.

• Advanced Output Control: Supports pulse-width modulation (PWM) and one-shot outputs for time-proportional or duty-cycle-based processes.

• Channel-to-Channel Isolation: Ensures that faults or surges in one channel do not affect other channels or the system logic.

Industrial Applications

• Small-Scale Skid Automation: Controlling 16 devices with both input feedback and output commands using a single module.

• Solenoid Valve Control: Driving duty-cycle-based actuators in chemical dosing or thermal systems.

• Status Monitoring & Control: Monitoring limit switches or auxiliary contacts while simultaneously sending control signals to field devices.

• Compact Control Panels: Ideal for systems where both inputs and outputs need to fit in minimal rack space.

Technical FAQ

Q: Does the ADV859-P00 support pushbutton edge counting?
A: No, this module does not include the pushbutton function. It is optimized for standard status acquisition and high-speed output commands.

Q: Can this module drive inductive loads like relays directly?
A: Yes, outputs are rated for inductive loads up to 100 mA. For large solenoids or relays, external flyback diodes are recommended to prolong transistor life.

Q: What is the benefit of the hybrid I/O design?
A: The 16/16 split allows you to handle feedback and control for 16 devices without needing two separate modules, reducing space, wiring, and installation effort.
