Product Description

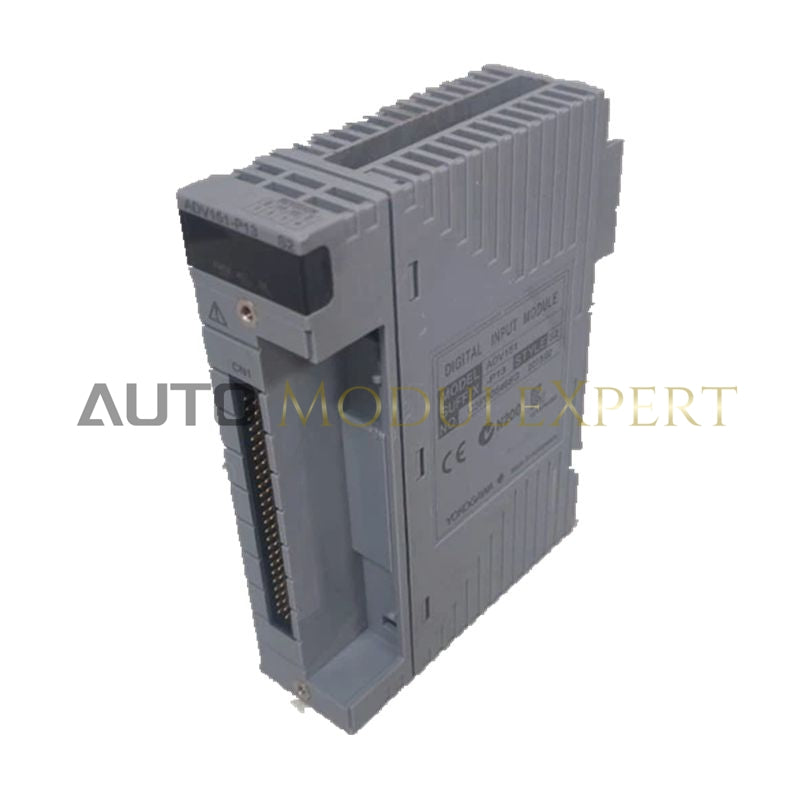

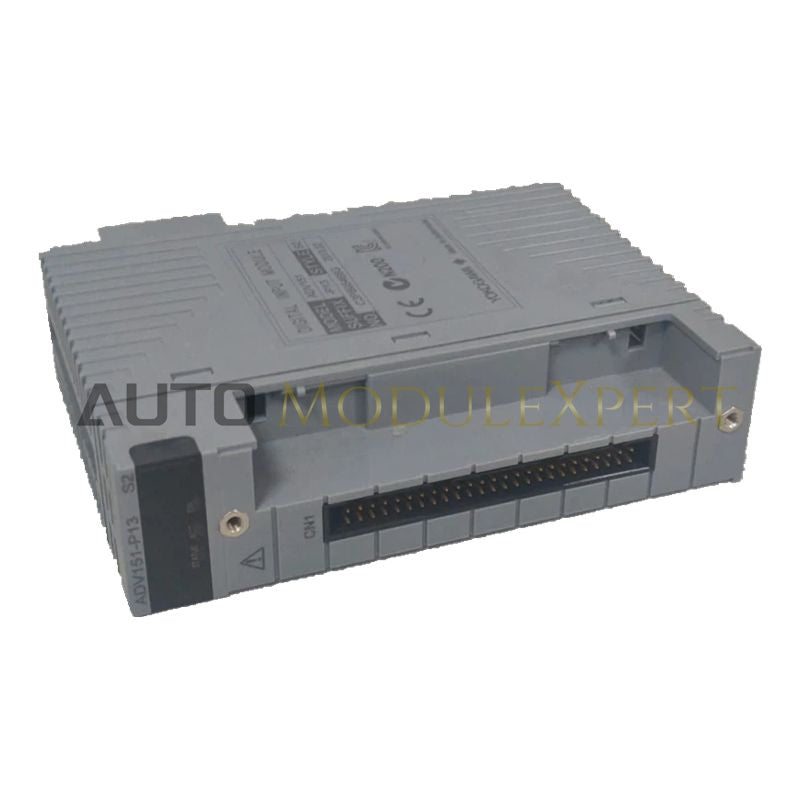

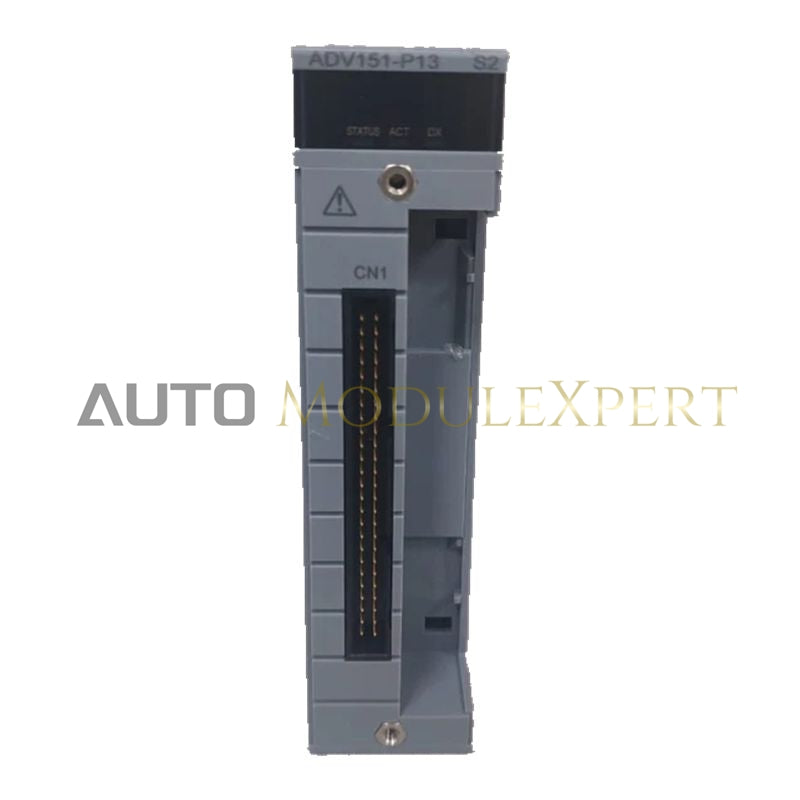

The ADV151-P13 S2 (ADV151) is a high-density 32-channel digital input module engineered for Yokogawa CENTUM VP and ProSafe-RS control systems. It captures discrete signals from field devices such as limit switches, relay contacts, and tactical sensors with high precision.
This Style S2 hardware revision offers enhanced durability while maintaining full compatibility with standard FIO bus nests. The P13 suffix denotes an integrated pushbutton input for manual diagnostics and a per-channel LED status display for real-time monitoring. The “3” suffix indicates ISA Standard G3 corrosive gas protection, shielding internal circuitry from harsh atmospheric gases like H₂S and Cl₂.
Technical Specifications
| Item | Specification |
|---|---|
| Input Channels | 32 points, isolated |
| Rated Input Voltage | 24 V DC (operational range ±10%) |
| Input Current | 4.1 mA typical at 24 V DC |
| Signal Logic | OFF: 0–5 V DC; ON: 15–30 V DC |
| Response Time | ≤ 8 ms (Standard mode) |
| Environmental Protection | ISA Standard G3 Corrosive Gas Resistance |
| Hardware Revision | Style S2 |
| Diagnostics | Integrated pushbutton input, per-channel LED indicators |
| Isolation | 1500 V AC (Field to internal system logic) |
| Internal Power Consumption | Max. 500 mA at 5 V DC |
| Dimensions (W × H × D) | 2.5 × 12.7 × 12.7 cm |
| Weight | 0.3 kg |
Application Scenarios
The ADV151-P13 S2 is ideal for large-scale process industries, including:
-
Oil refineries
-
Wastewater treatment facilities
-
Chemical processing plants
Its G3 corrosive resistance ensures reliable operation in environments with high humidity or corrosive vapors, helping maintain long-term system uptime and prevent premature hardware failure.
Technical FAQ
What is the advantage of the G3 rating?
The G3 rating indicates that the module’s PCB and components are treated with a specialized conformal coating, protecting against corrosion from chemicals and polluted air, and preserving signal integrity in harsh industrial atmospheres.
Is the Style S2 compatible with older S1 racks?
Yes. The Style S2 maintains the same functional performance as previous revisions and can be installed as a direct replacement in existing FIO nodes without software configuration changes.
