Product Description

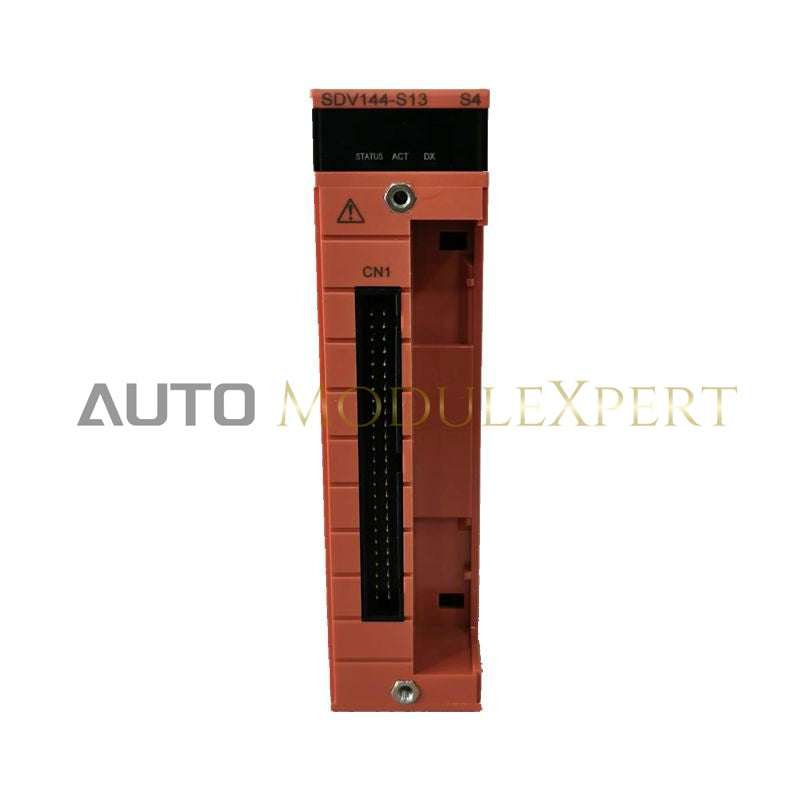

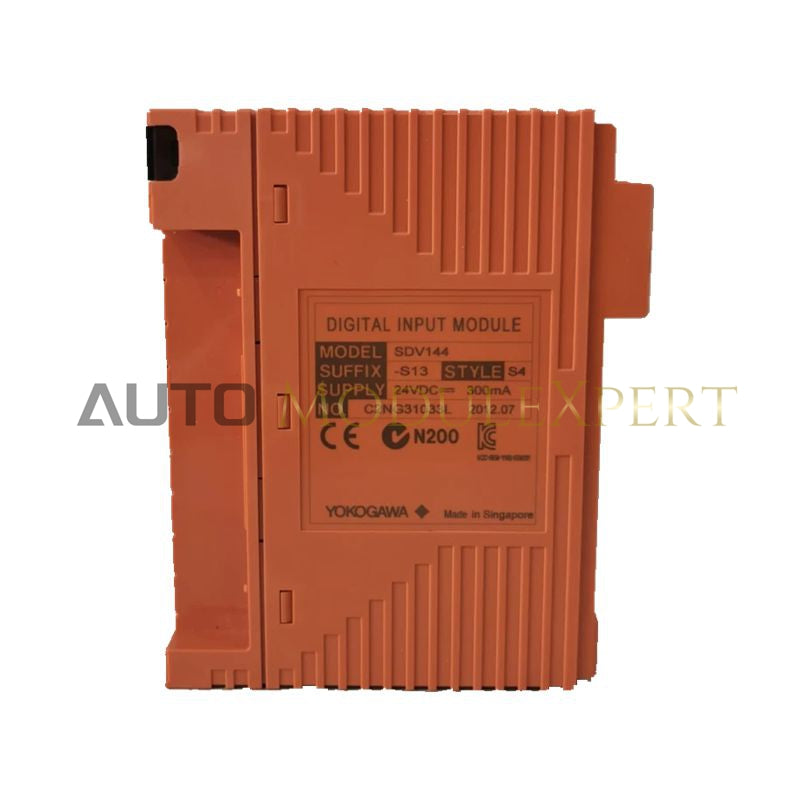

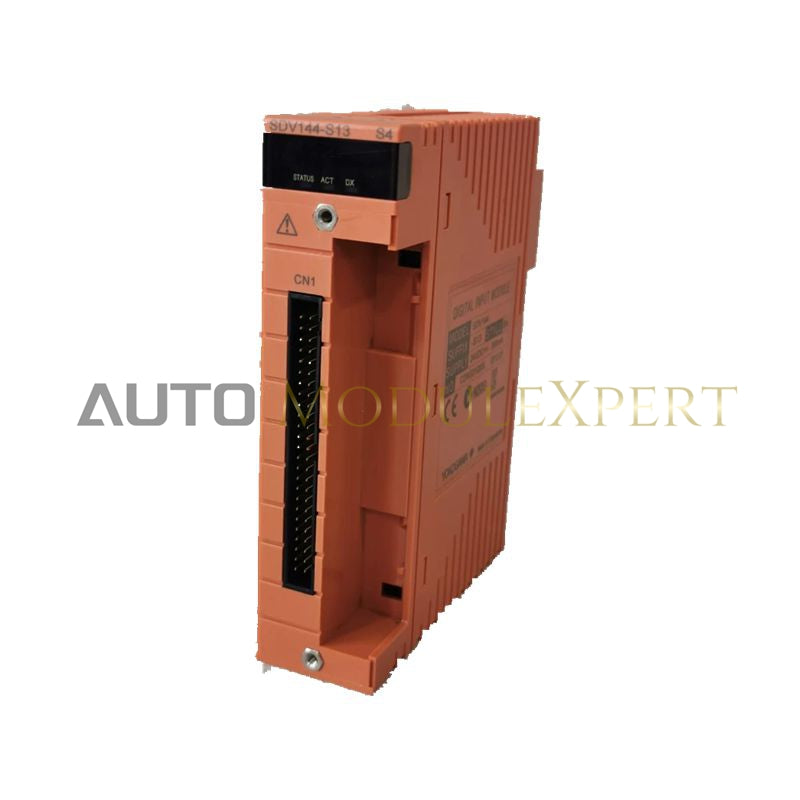

The Yokogawa SDV144-S13/B4D10 is a high-integrity 16-channel digital input module designed for the ProSafe-RS Safety Instrumented System (SIS). It monitors critical safety devices, including emergency shutdown (ESD) switches and process sensors, providing millisecond-level accuracy required for SIL 3 safety loops.
This S13 configuration is built for harsh industrial environments, featuring ISA Standard G3 corrosive gas resistance. The B4D10 suffix denotes a MIL-connector signal cable interface, optimized for use with dedicated safety terminal boards, ensuring secure, high-density connections. With individual channel isolation, this module prevents electrical faults from propagating, maintaining maximum system reliability and uptime.
Technical Specifications
| Feature | Specification |
|---|---|
| Module Type | Safety Digital Input Module (ProSafe-RS) |
| Number of Channels | 16 channels, individually isolated |
| Input Signal Type | No-voltage contact (Dry contact) |
| Logic Thresholds | ON ≤ 1 kΩ; OFF ≥ 100 kΩ |
| Input Current | 6 mA ± 20% at 24 V DC |
| External Power Supply | 24 V DC (+20% / -10%) |
| Current Capacity | 200 mA |
| Max Permissible Input Voltage | 30 V DC (instantaneous) |
| Environmental Protection | ISA Standard G3 Corrosive Resistance |
| Communication Interface | Vnet/IP compatible |
| Response Time | ≤ 40 ms (Safety-rated acquisition) |
| Status Diagnostics | Supported via system software and LEDs |
| Weight | 0.4 kg |
Application Scenarios
The SDV144-S13/B4D10 is ideal for oil & gas, petrochemical, and power generation facilities, where monitoring field-side safety interlocks is critical. Its ruggedized design and corrosion-resistant construction allow reliable signal acquisition in environments with hazardous gases like $H_{2}S$, ensuring functional safety even under extreme conditions.
Technical FAQ
What does the B4D10 suffix specify?
The B4D10 code defines the module’s connection style and hardware revision, optimized for MIL-spec signal cables (e.g., AKB331) to interface with safety terminal boards.
Is this module compatible with standard CENTUM VP I/O nests?
No. The SDV144 series must be installed in a ProSafe-RS safety node. While it communicates status to the CENTUM VP HMI, all safety logic is executed within the safety controller to maintain SIL 3 compliance.
