Technical Overview

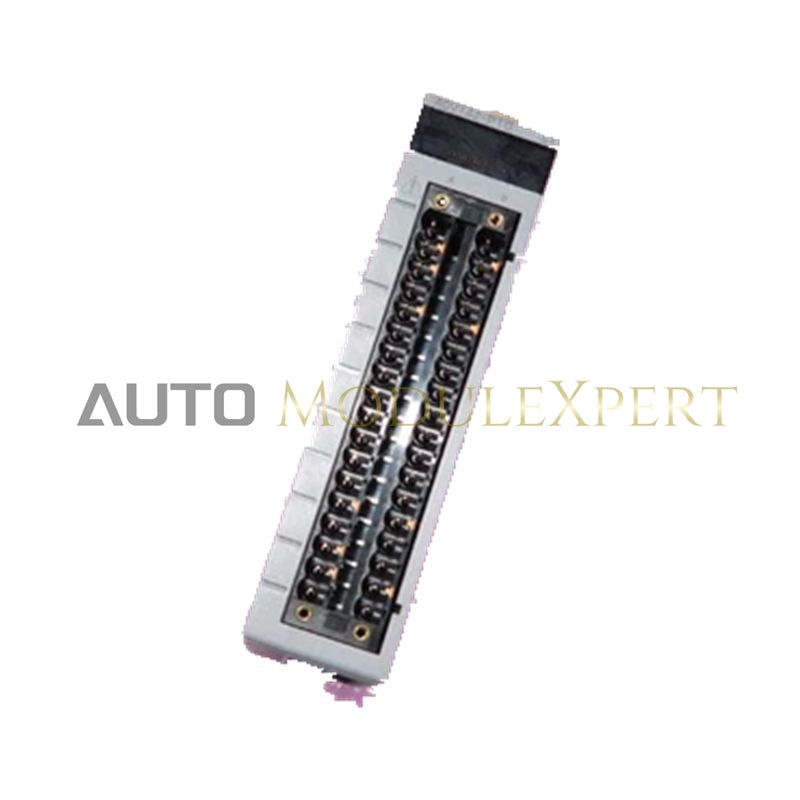

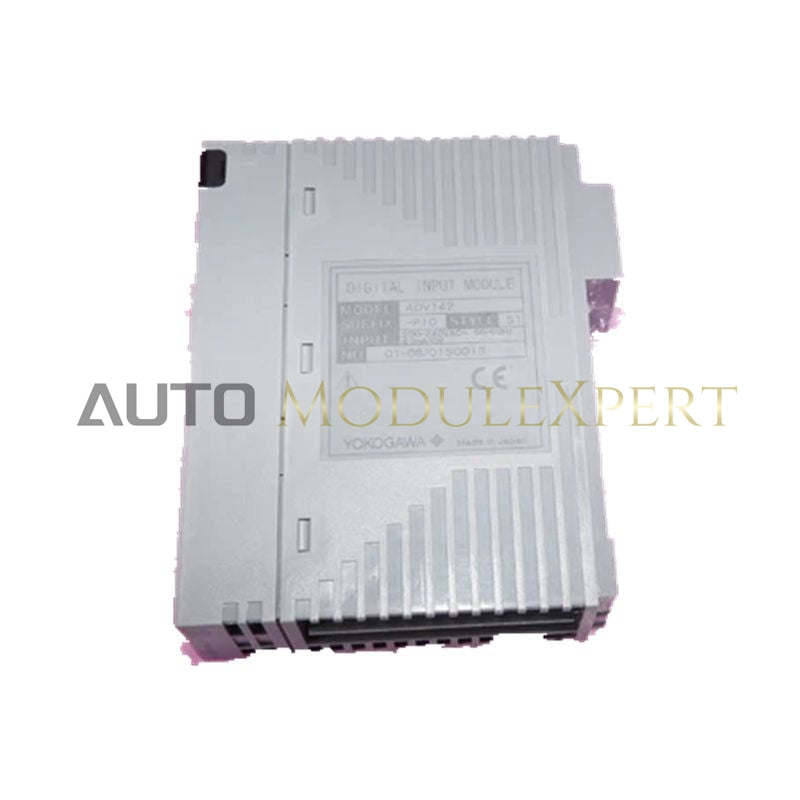

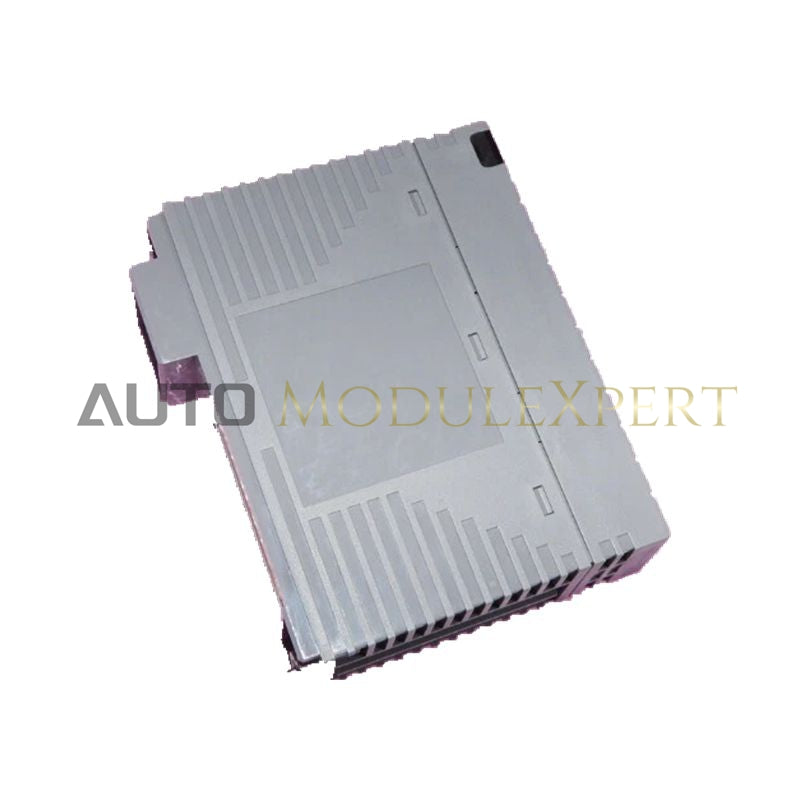

The ADV142 is a high-voltage AC discrete input module for the Yokogawa CENTUM VP and CS 3000 systems, designed to interface directly with 200–240 V AC signals. It eliminates the need for external interposing relays or voltage transducers, making it ideal for high-voltage equipment monitoring and power distribution applications.

The module provides 16 isolated input channels with optical isolation, ensuring robust dielectric protection between the field-side high voltage and the system logic.

Technical Specifications

Practical Applications

The ADV142 is commonly used in high-voltage auxiliary monitoring and facility infrastructure applications:

• Heavy Machinery Monitoring: Direct detection of 220 V AC motor starters and contactors.

• Facility Infrastructure: HVAC, lighting circuits, and other 240 V AC control power systems.

• Power Utilities: Monitoring auxiliary contacts of high-voltage breakers and distribution switches.

• Process Interlocks: Long-distance status signal acquisition where AC reduces voltage drop issues.

Engineering FAQ

How does the ADV142 differ from the ADV141?

• ADV141: 100–120 V AC input module

• ADV142: 200–240 V AC input module
  Using the wrong module can cause signal detection failure or module damage.

Why is the response time longer than DC modules?
AC inputs require rectification and filtering to account for zero-crossing. The 160 ms response ensures stable detection without false OFF readings.

Can this module measure frequency or pulse signals?
No. The ADV142 only detects ON/OFF voltage presence. For frequency or high-speed pulse counting, use modules like ADV157 (DC) or appropriate AC frequency modules.
