Technical Overview

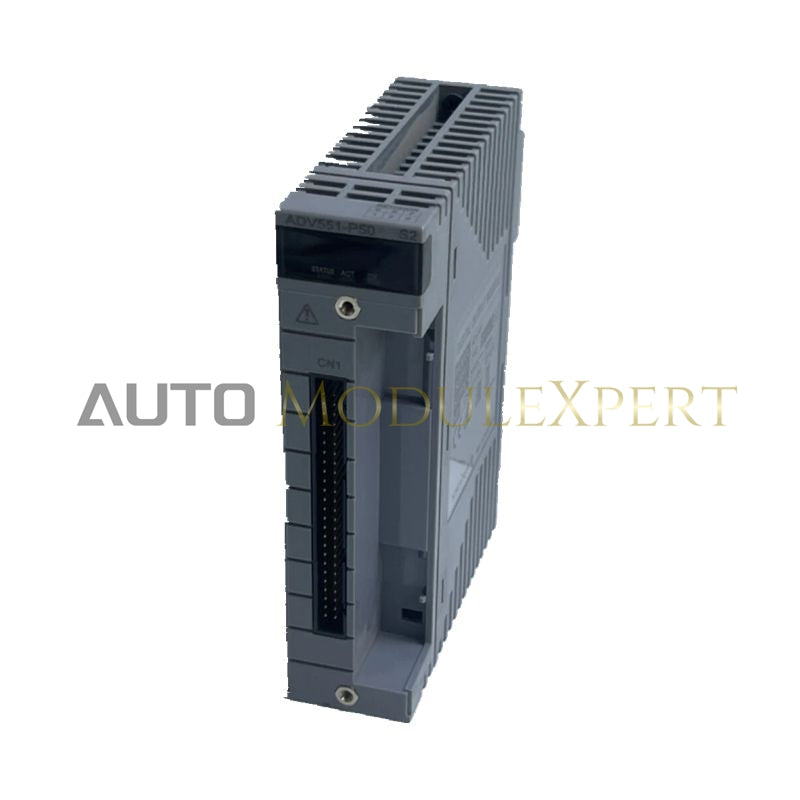

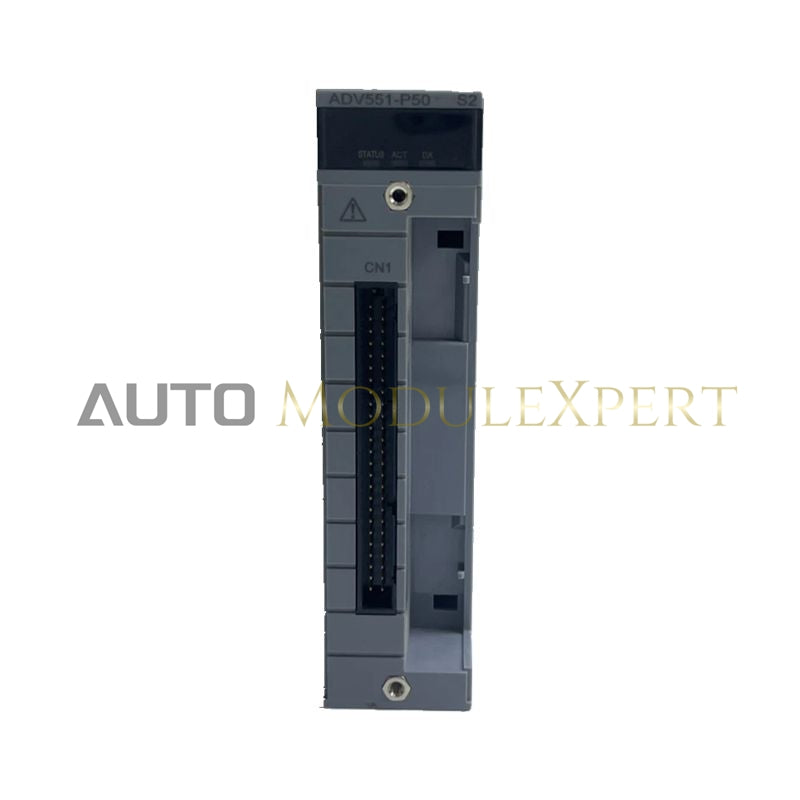

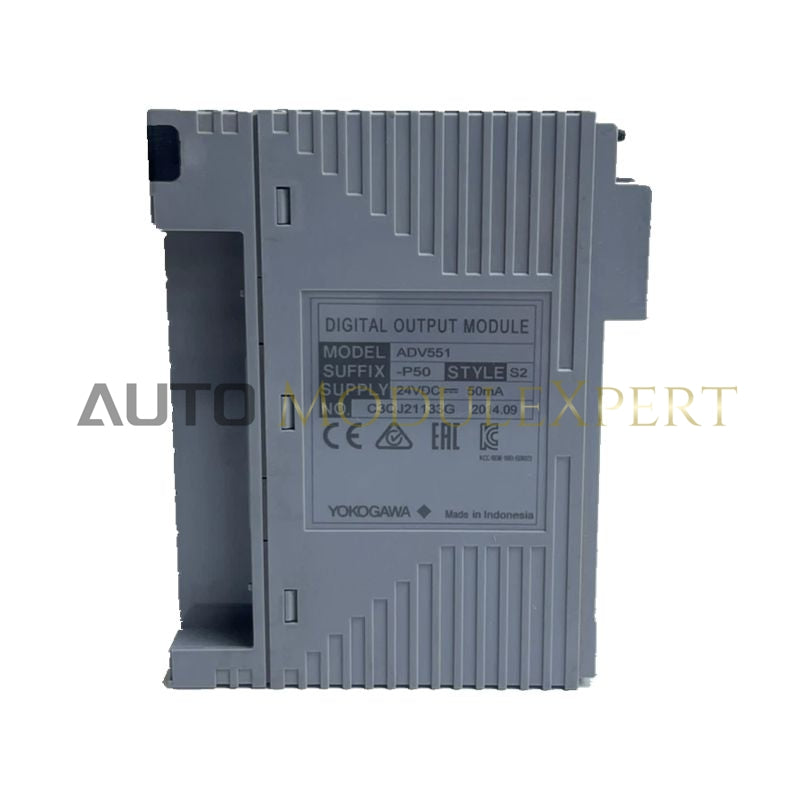

The ADV551-P50 S2 is a high-density discrete output module for the Yokogawa CENTUM VP / CS 3000 series. It provides 32 transistor-based current-sink outputs with integrated pulse width and time-proportional control.
As a Style 2 (S2) hardware revision, it features improved thermal performance and component reliability for 24/7 industrial operations. Its compact, high-density design makes it ideal for optimizing I/O rack space in control cabinets.
Technical Specifications
| Feature | Specification |
|---|---|
| Output Channels | 32 discrete outputs |
| Module Type | ADV551-P50 S2 (Style 2 hardware) |
| Output Format | Current Sink (NPN transistor) |
| Rated Load Voltage | 24 V DC |
| Maximum Switching Voltage | 30 V DC |
| Maximum Load Current | 100 mA per channel |
| Response Time | ≤ 16 ms (standard status transition) |
| Special Functions | Pulse Width / Time-Proportional Output |
| Isolation | 500 V AC (Output-to-System) |
| System Bus Power | 500 mA max at 5 V DC |
| Physical Dimensions | 5.1 cm × 10.7 cm × 12.7 cm |
| Weight | 0.3 kg |
| Connectivity | Pressure clamp terminals or KS cables (e.g., AKB331 series) |
Key Features
-
High-Speed Transistor Switching: Provides rapid, reliable output control for small actuators and indicators.
-
Pulse Width / Time-Proportional Output: Allows modulation of duty cycles for heating, dosing, or valve control.
-
S2 Hardware Revision: Enhanced internal circuitry and heat management for long-term operation in dense I/O nests.
-
Compact Footprint: 32 outputs in a single slot, maximizing rack efficiency.
-
Flexible Cabling: Compatible with dedicated KS cables or standard pressure clamp terminals.
Industrial Applications
-
Solenoid Valve Actuation: Precision control of pilot valves in pneumatic manifolds.
-
Time-Proportional Heating: Driving SSRs for regulated power output in temperature-controlled vessels.
-
System Signaling: Handshaking and status outputs to PLCs or ESD systems.
-
Operator Interface Control: Driving lamps and alarms on hardwired control consoles.
Technical FAQ
What is the advantage of the Style 2 (S2) hardware?
-
S2 modules offer improved thermal performance, updated internal components, and higher reliability compared to Style 1 modules, making them ideal for high-density I/O installations.
Does this module require an external power supply?
-
Yes. Internal logic uses 5 V DC from the system bus, but field-side devices require an external 24 V DC power source.
What cabling is recommended?
-
Depending on installation, either pressure clamp terminals or dedicated KS cables (e.g., AKB331 series) can be used to connect to external terminal boards, ensuring clean wiring in high-density setups.
