Technical Description

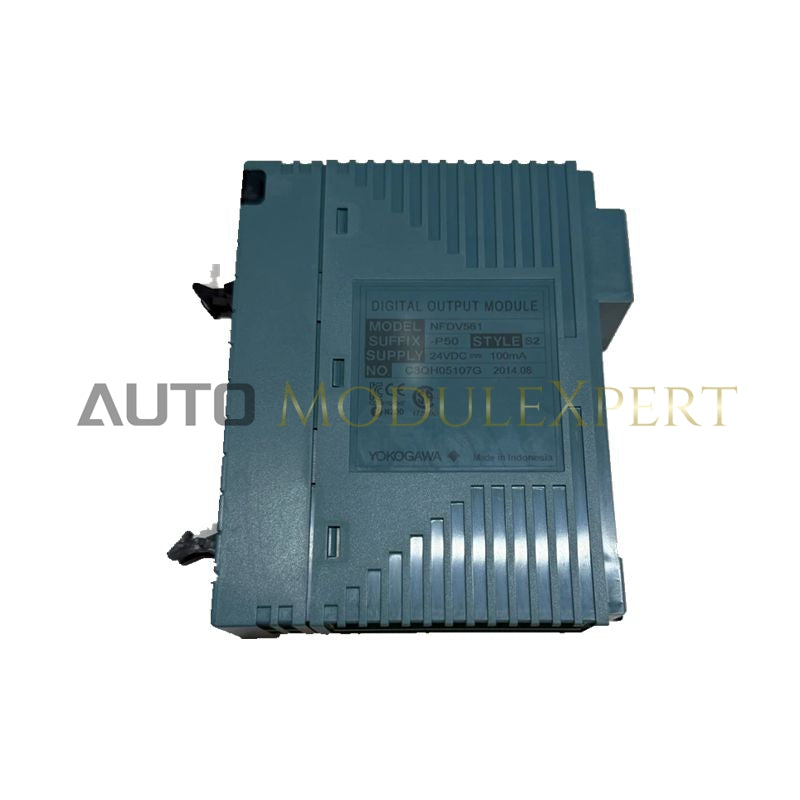

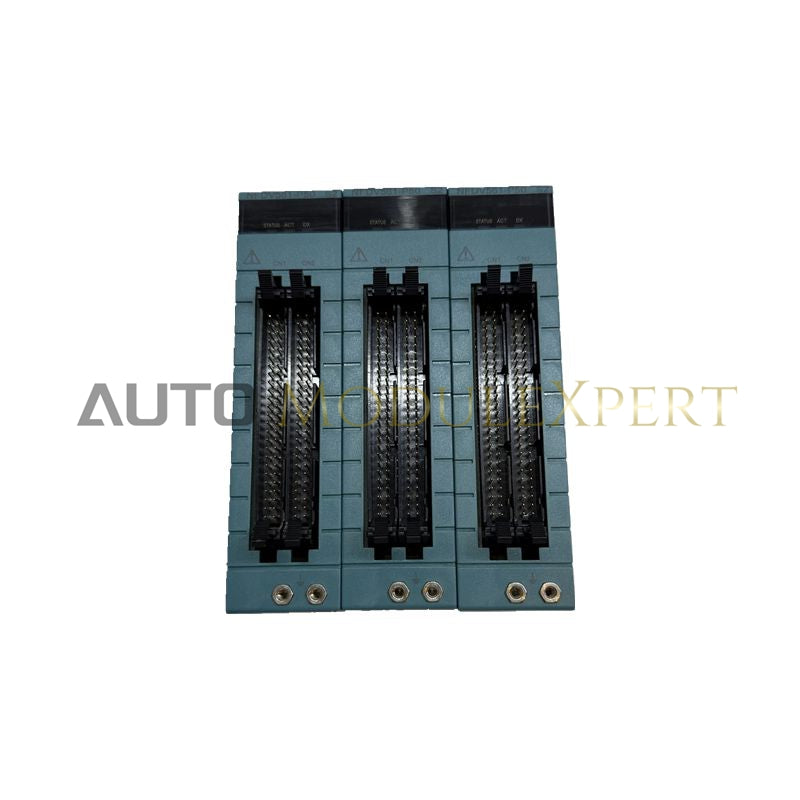

The NFDV561-P50 is a high-speed digital output module for Yokogawa FIO (Field Interface Option) systems, compatible with CENTUM VP and ProSafe-RS architectures. Designed for fast, reliable discrete control, it drives field devices such as solenoids, contactors, and pneumatic actuators. Unlike sinking modules, it uses a sourcing (+24 V DC) output configuration, providing robust positive logic signals. Each of the 16 channels features built-in diagnostics, including short-circuit detection and overcurrent protection, ensuring both field and module safety.

Technical Specifications

Operational Application

The NFDV561-P50 is ideal for manufacturing automation and process control nodes requiring fast, reliable switching. Its 1-millisecond response time supports time-critical interlocks and high-speed actuator control in petrochemical, water treatment, and industrial facilities. The sourcing output topology enables straightforward integration with grounded field loads, preferred in many safety-instrumented systems (SIS) for clear fault detection and status monitoring.

Frequently Asked Questions

What is the advantage of the sourcing output compared to sinking?
Sourcing outputs (positive logic) are safer in many applications because accidental activation due to a ground fault in the field wiring is less likely, making them suitable for safety-critical loops.

Can the NFDV561-P50 be used in redundant configurations?
Yes. When mounted on a dual-redundant FIO base, the module supports seamless switchover, enabling high-availability control in critical process environments.

How do the diagnostic features alert the control system?
Upon detecting an overcurrent or short-circuit, the module inhibits output on the affected channel and sets a diagnostic flag, which is transmitted via the FIO bus to the operator HMI for immediate notification.
