Product Overview

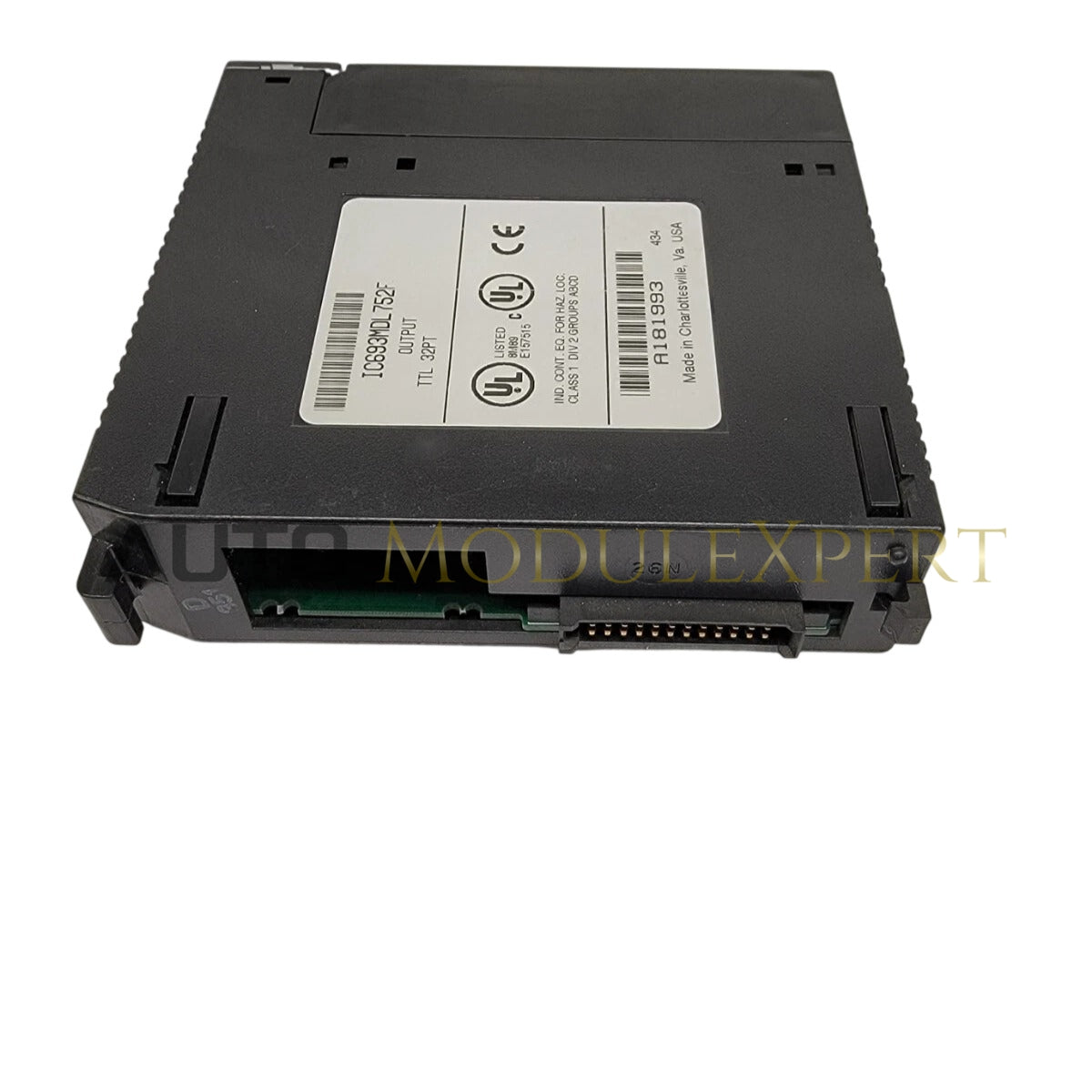

The IC693MDL752F is a high-density discrete DC output module designed for the GE Fanuc Series 90-30 PLC platform. It provides 32 sinking (negative logic) output points, enabling efficient control of DC-powered field devices such as solenoids, relays, and indicator lamps. This module is ideal for complex automation systems requiring compact, high-performance output solutions. We supply this unit as 100% brand new and original, delivered in factory-sealed packaging.
Technical Specifications
| Parameter | Description |
|---|---|
| Module Type | Discrete DC Output (Sinking / Negative Logic) |
| Output Points | 32 (four groups of 8) |
| Rated Voltage | 12 / 24 VDC |
| Operating Voltage Range | 12 to 24 VDC (+10%, -15%) |
| Output Current | 0.5 A per point (max); 2 A per common |
| Response Time | 0.5 ms max (On/Off) |
| Internal Power Consumption | 260 mA from +5V bus |
| Dimensions | 138 × 25.4 × 120 mm |
| Weight | 0.25 kg |
Engineering Advantages
High-Density Design
Integrates 32 output channels into a single module, reducing backplane usage and saving cabinet space in large-scale systems.
Fast Switching Performance
Solid-state architecture ensures a rapid 0.5 ms response time, making it suitable for high-speed control applications.
Negative Logic Operation
Sinking outputs provide low-side switching, aligning with common industrial wiring practices for DC field devices.
Enhanced Diagnostics
Front-panel LEDs indicate the status of each output point, enabling quick fault identification and reducing maintenance time.
FAQs
Can the IC693MDL752F switch AC loads?
No. This module is designed exclusively for 12–24 VDC applications. Use a relay or AC output module for AC loads.
Is an external power supply required?
Yes. A 12/24 VDC external power source is required on the field side to drive connected devices.
What does the “F” revision indicate?
It represents the hardware revision level. Revision F is fully backward compatible with earlier versions and integrates seamlessly into existing Series 90-30 systems.
Does the module include a terminal block?
This module typically uses a high-density connector. Confirm whether your setup requires a 40-pin Fujitsu connector or a pre-wired cable assembly.
