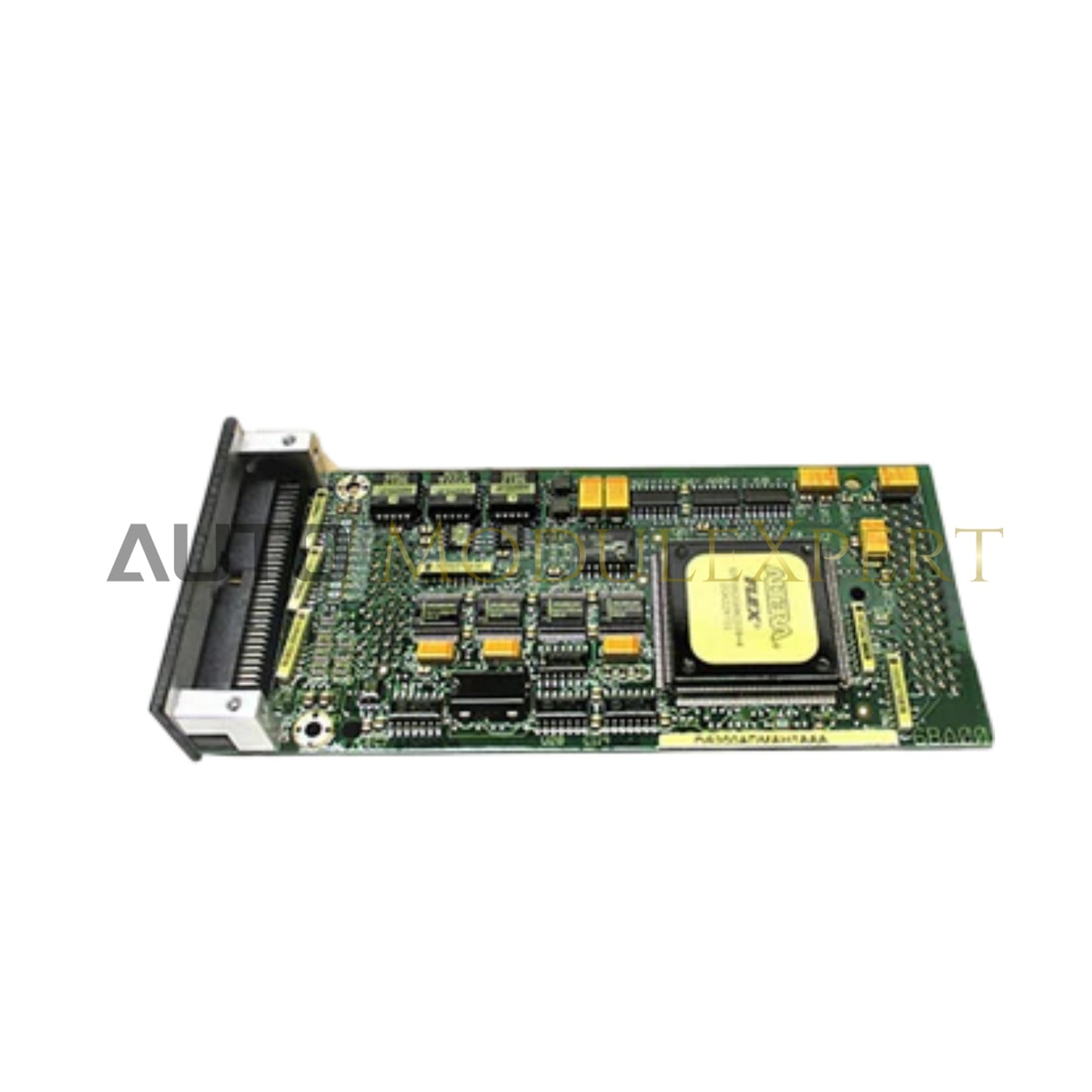

Configured for high-speed signal processing in drive and control system platforms, the GE DS200ADMAH1A (DS200ADMAH1A Drive Control Module) provides direct physical/electrical execution. This hardware component functions as a primary interface for analog data acquisition and control command distribution within the drive architecture. The module processes incoming feedback signals and translates them into precise control outputs, ensuring that drive motor performance remains synchronized with system-level logic and setpoint requirements.

Hardware Specifications

Industrial Control and Backplane Communication

The DS200ADMAH1A integrates into the drive backplane to facilitate deterministic network traffic. The board supports the high backplane bus communication velocity required for real-time motor control loops, ensuring that latency between the control processor and the drive stage is minimized. I/O density scaling is managed through the module’s versatile analog circuitry, allowing for multi-channel input handling. Firmware flash compatibility is supported to allow for logic updates directly from the main control interface, ensuring the module remains aligned with system calibration parameters.

Frequently Asked Questions

Q: Does the DS200ADMAH1A support hot-swapping while the drive is active?

A: No. Any intervention involving the control module requires that the drive be fully de-energized and the DC bus capacitors discharged to prevent accidental motor movement or damage to the module electronics.

Q: How should the analog signal shielding be grounded for this module?

A: Analog inputs should be shielded using a single-point ground connection at the cabinet's designated chassis ground bus to minimize noise injection and prevent ground loops from impacting signal accuracy.

Field Installation Guidelines

1. Perform LOTO procedures on the main drive power and control circuits before opening the enclosure.
2. Carefully align the module with the chassis guide rails; ensure the backplane pins are not obstructed before final seating.
3. Secure the module using the provided locking mechanisms to ensure the assembly can withstand vibration during drive operation.
4. Verify all analog I/O wiring is correctly terminated according to the drive control schematic, ensuring proper strain relief on all cable connections.
5. Inspect the interface cables for signs of fraying or heat damage.
6. Upon power restoration, perform a diagnostic verification through the drive HMI to ensure the module is responding correctly and that analog feedback values align with field sensor inputs.
