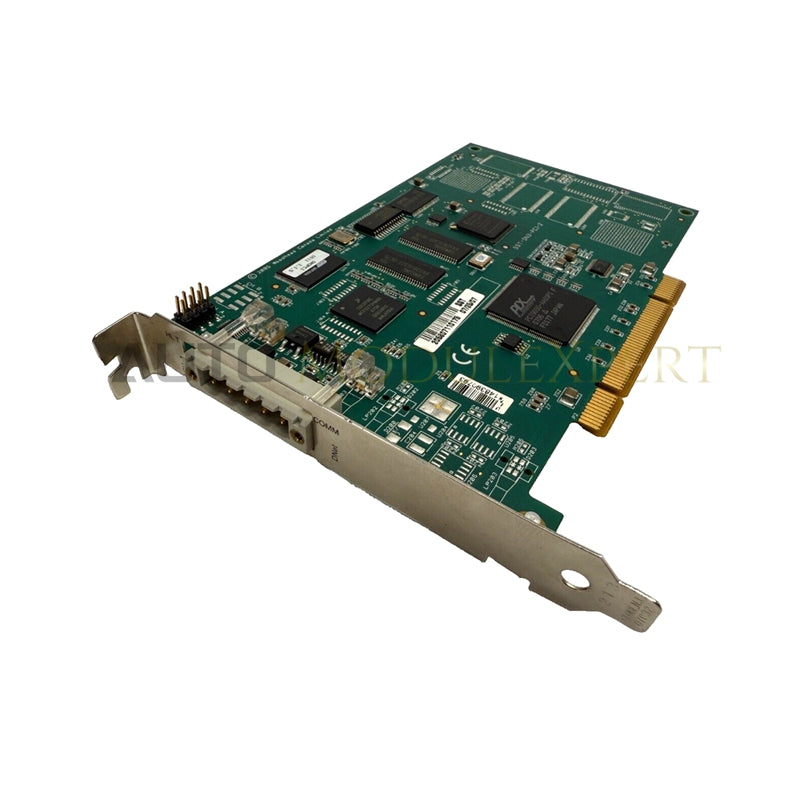

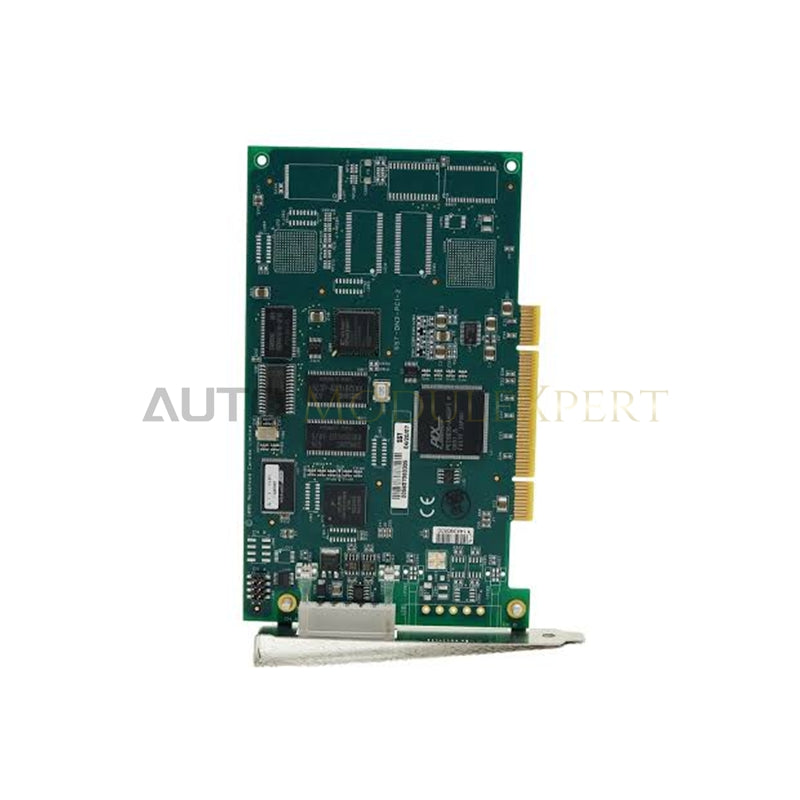

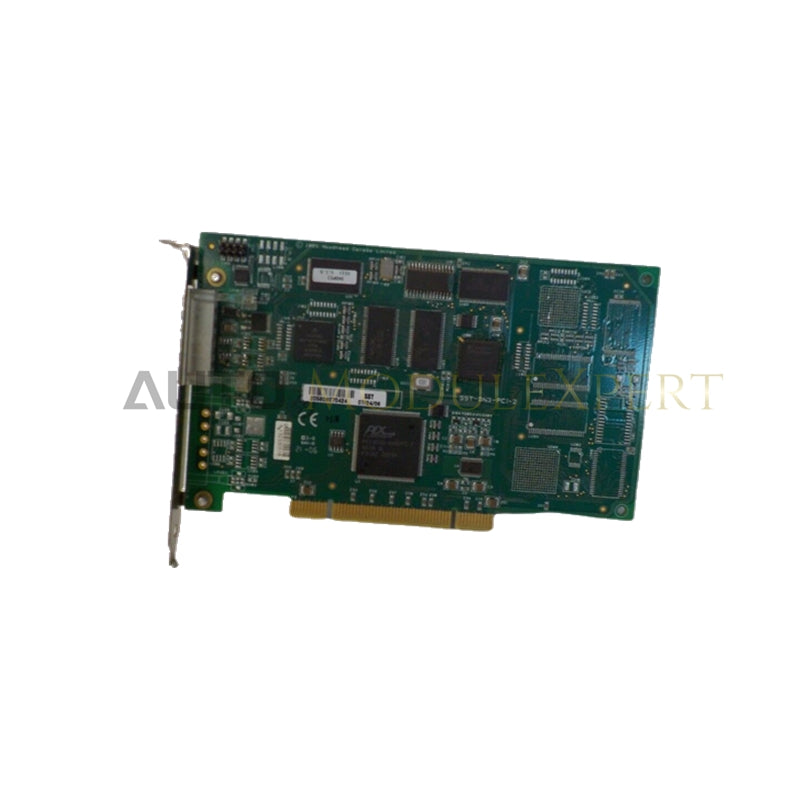

ABB DSQC612 3HAC15639-1 Ethernet Board
The ABB 3HAC15639-1, also cataloged as the DSQC612 Ethernet Board, operates as a dedicated hardware component for high-speed network communication and control frame routing within ABB IRC5 Robot Controller platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DSQC612 (3HAC15639-1) |
| Brand | ABB |
| Origin | Switzerland |
| Weight | 1.5 kg |
| Dimensions | 22 x 124 x 126 mm |
| Operating Temp | 0 to +55 deg C |
| Power Consumption | Powered via 24 VDC system backplane |
| Module Type | Ethernet Communication Board |
| System Compatibility | ABB IRC5 Robot Controllers |
| Input Power Rail | 200-240 VAC main feed conversion to 24 VDC bus |
| Output Current Rating | Up to 20 A (24 VDC rail support) |
| Peripheral Protection | Overvoltage, overload, and short-circuit protection |
Deterministic Backplane Bus Communication
The DSQC612 Ethernet Board coordinates deterministic fieldbus frame exchange across the IRC5 controller rack, establishing high-speed network communication between the primary computer unit and external automation nodes. Onboard communication routines optimize backplane bus throughput while maintaining full firmware flash compatibility through ABB RobotStudio configuration utilities. Dedicated data pipelines regulate signal integrity, preventing network frame latency during high-density I/O scan cycles.
Frequently Asked Questions
Q: How does the DSQC639 processing module interface with the DSQC612 communication board inside the IRC5 controller?
A: The DSQC612 interfaces directly via the standard internal backplane bus, enabling the primary processor board to exchange real-time motion and Ethernet fieldbus data frames without protocol conversion latency.
Q: What protection features prevent electrical damage to the DSQC612 board during grid voltage fluctuations?
A: Integrated overvoltage, overload, and short-circuit protection circuits continuously monitor the internal power rails, automatically initiating safe thermal shutdown if operating thresholds are exceeded.
Q: Is hot-swapping permitted for the DSQC612 Ethernet Board during system operation?
A: No, technicians must turn off main cabinet power before removing or inserting the board to prevent arc flash risk and potential firmware corruption on the backplane interface.
Field Installation Guidelines
Disconnect main system AC power to the IRC5 controller cabinet and follow lockout/tagout procedures before opening the access panel. Attach an ESD wrist strap connected to an unpainted metal surface on the chassis framework to mitigate static discharge risks. Carefully slide the DSQC612 card along the rack slot guide rails until the edge connectors align fully with the backplane motherboard. Tighten the panel retention screws to secure the physical assembly and verify chassis ground continuity. Reattach all RJ45 Ethernet communication cables to their designated ports. Reapply system power and confirm that the green diagnostic communication LEDs illuminate during boot completion.
