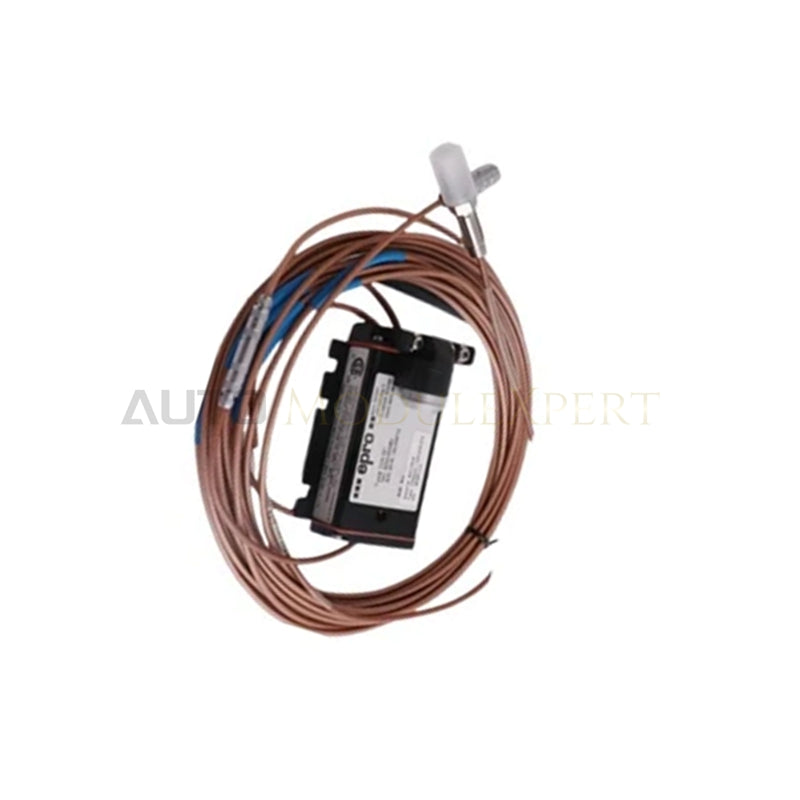

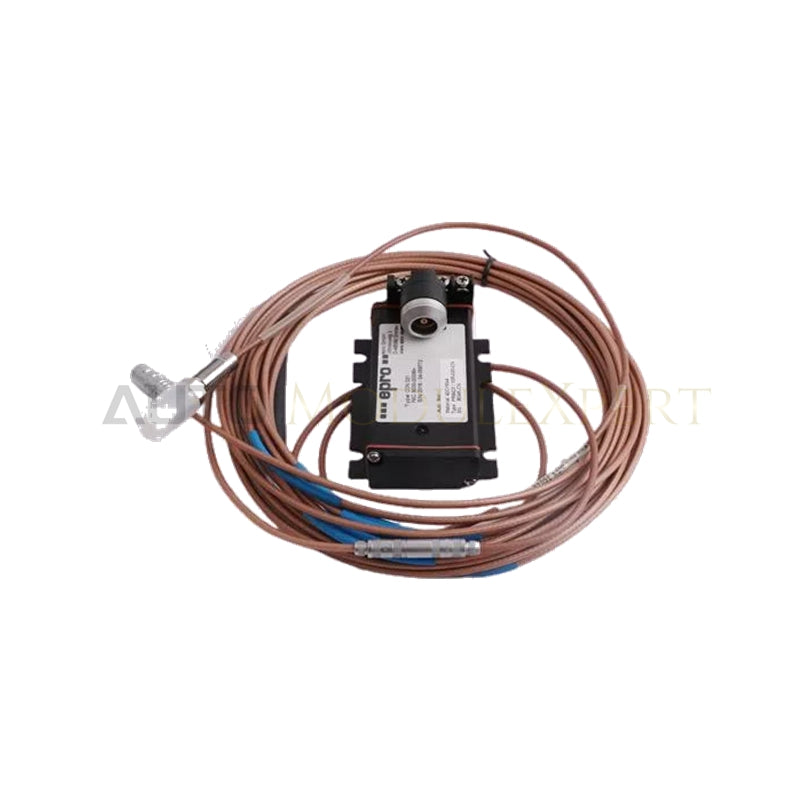

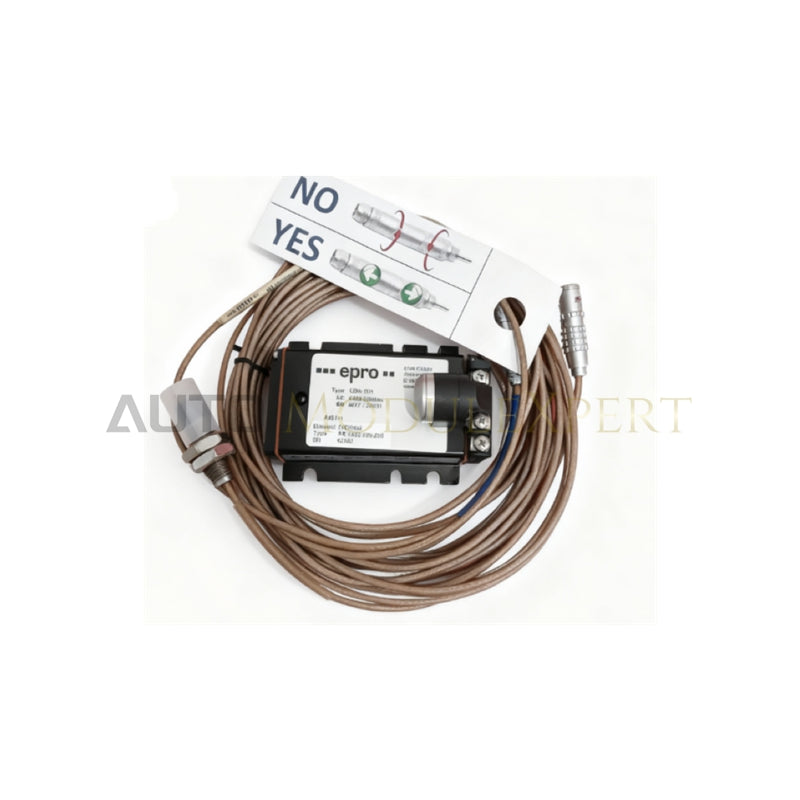

Emerson PR6423/016-030 CON021 Eddy Current Measuring Chain

The Emerson PR6423/016-030 CON021, also cataloged as the PR6423/016-030 Eddy Current Transducer System, operates as a dedicated hardware component for relative shaft displacement and vibration measurement within turbomachinery protection networks. The non-contact probe conditions high-frequency electromagnetic field variations across an 8 mm tip, delivering raw displacement data to the paired CON021 signal converter. The converter processes linear target responses and transforms the physical movement of the rotating shaft into standardized voltage and current outputs for direct integration into PLC and DCS monitoring cards.

Hardware Specifications

Signal Linearization and Probe Calibration

The measurement chain relies on precise eddy-current probe scaling to convert target proximity into calibrated signal outputs. During initial commissioning, technicians perform gap voltage validation to adjust the static bias point against a nominal -10 VDC target voltage, ensuring the sensor operates strictly within its linear measuring region. Proper mechanical positioning maintains flat frequency response characteristics across 0 Hz to 100 kHz, tracking dynamic rotor dynamics without amplitude distortion. Correct physical clearance around the 8 mm probe tip provides essential cross-talk suppression, preventing adjacent electromagnetic field interference in high-density multi-channel turbine installations.

Frequently Asked Questions

Q: Can the 3 m probe cable be extended or shortened in the field?

A: No, the 3 m cable forms an integral part of the tuned LC oscillator circuit; cutting or splicing the cable alters system inductance and degrades the factory calibrated 7.87 mV/um sensitivity.

Q: How does the CON021 signal converter isolate field noise from control loops?

A: The CON021 converter features internal galvanic isolation between the probe input stage, the 24 VDC power supply rails, and the standardized analog outputs, preventing ground loop currents from corrupting signal integrity.

Q: What is the minimum target shaft diameter required for linear measurement accuracy?

A: The sensor requires an electrically conductive steel target shaft with a minimum diameter of 60 mm to prevent edge-effect field distortion from invalidating the calibration curve.

Field Installation Guidelines

• Mount the CON021 converter module onto a standard 35 mm DIN rail inside an IP54-rated metal enclosure to ensure adequate physical protection against environmental contaminants.
• Ground all field cable shielding at a single point on the control cabinet instrument earth bar to prevent ground potential loops from inducing noise into the high-frequency measurement circuit.
• Verify target shaft material matches the factory calibration properties before finalizing the mechanical gap setting using feeler gauges or gap voltage verification.
• Route probe cabling through dedicated low-voltage instrument raceways, maintaining a minimum 200 mm clearance from AC power cables and variable frequency drive outputs.
