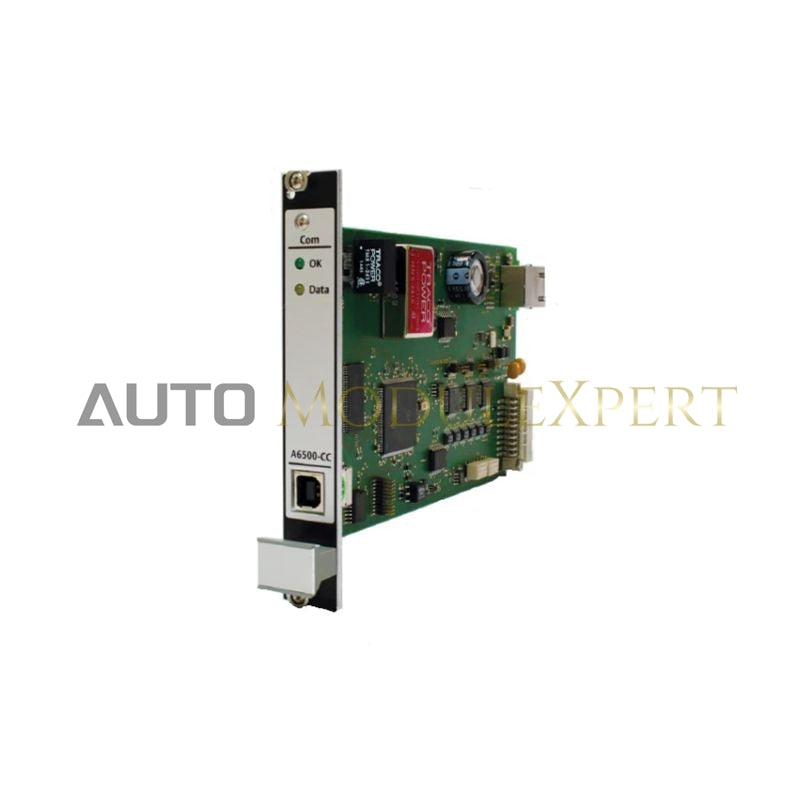

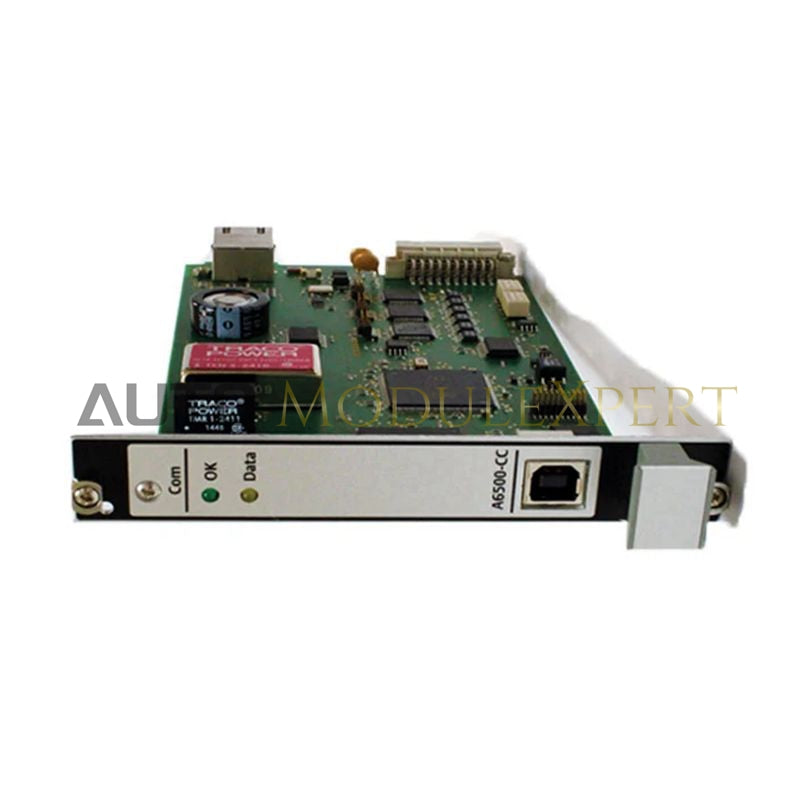

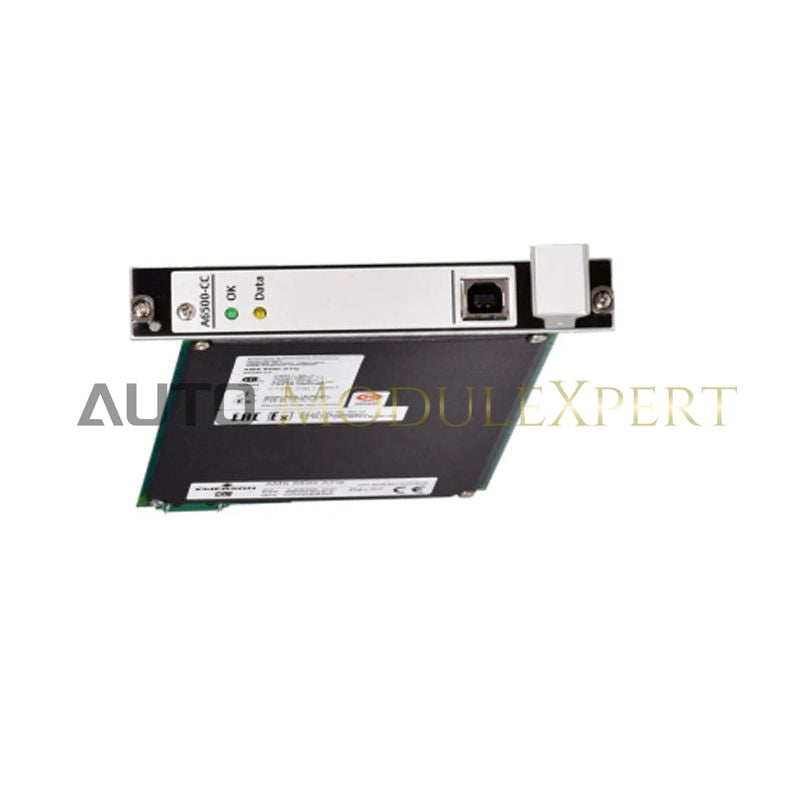

EPRO A6500-CC System Communication Interface Card
The EPRO A6500-CC, also cataloged as the A6500-CC System Communication Card, operates as a dedicated hardware component for high-speed data transmission between machinery monitoring rack processor modules and plant control networks within EPRO monitoring system platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | A6500-CC |
| Brand | EPRO (Emerson) |
| Origin | Germany |
| Weight | 0.5 kg |
| Dimensions | Standard EPRO A6500 rack module footprint |
| Operating Temp | 0 deg C to +65 deg C |
| Power Consumption | Powered via backplane bus (24 VDC rack supply) |
| System Slot | Dedicated communication slot in EPRO A6500 rack chassis |
| Interfaces | Ethernet (RJ-45), RS-485 (Terminal Blocks) |
| Supported Protocols | Modbus TCP, Modbus RTU, Proprietary EPRO rack protocol |
Rotor Dynamics Data Gateway Architecture
The module functions as a deterministic communication gateway for processed TSI machinery condition parameters rather than executing direct sensor excitation. Internal backplane bus communication velocity allows the card to collect digitized vibration, shaft position, and speed metrics from adjacent processing cards without introducing latency into safety trip loops. Standardized Modbus TCP/RTU mapping ensures seamless cross-talk suppression and continuous polling compatibility with external DCS and PLC architectures.
Frequently Asked Questions
Q: Does the A6500-CC card perform direct raw signal conditioning for eddy-current probes?
A: No. The A6500-CC functions strictly as a network gateway module. It aggregates and forwards digital measurement data and alarm status generated by dedicated A6500 signal processing cards.
Q: What physical interfaces are available on the A6500-CC front panel for field network connection?
A: The card provides an RJ-45 port for 10/100 Mbps Ethernet (Modbus TCP) communication and screw terminal blocks for RS-485 serial communication (Modbus RTU).
Q: Is hot-swapping supported for the A6500-CC within an energized A6500 rack?
A: Module replacement guidelines require verifying rack power status and backplane communication configuration before extraction to prevent communication dropouts on active network links.
Field Installation Guidelines
Insert the A6500-CC module into its designated communication slot in the EPRO A6500 chassis, ensuring complete backplane connector engagement before tightening the top and bottom retaining screws. Connect industrial-grade shielded CAT6 Ethernet cable to the RJ-45 port or shielded twisted-pair wiring to the RS-485 terminal blocks. Terminate RS-485 signal lines with standard 120 ohm end-of-line resistors where applicable. Connect all cable shields to the main chassis earth ground stud to prevent ground loop noise from degrading communication packet stability.
