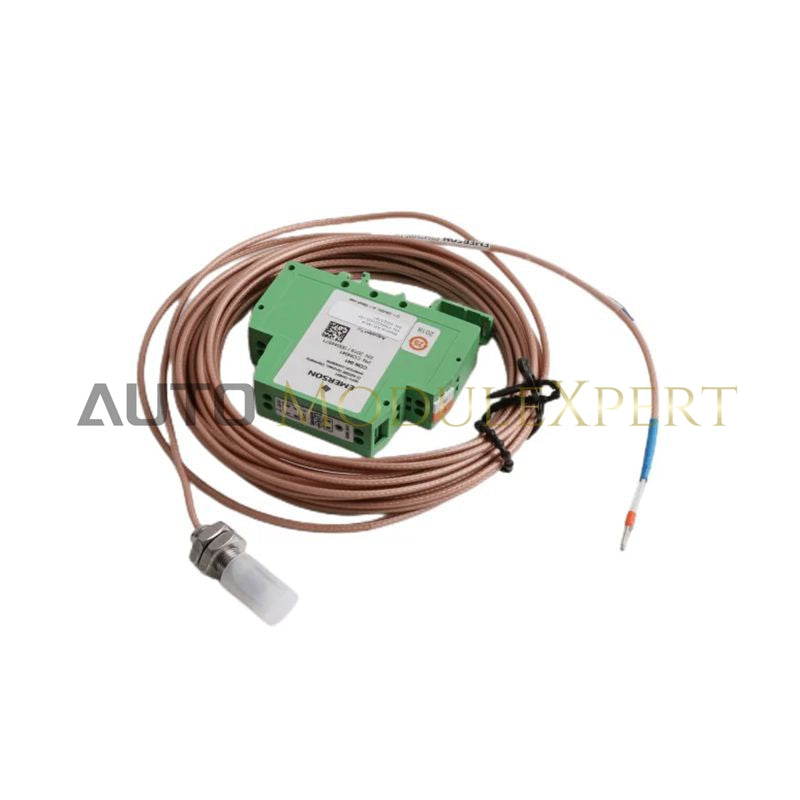

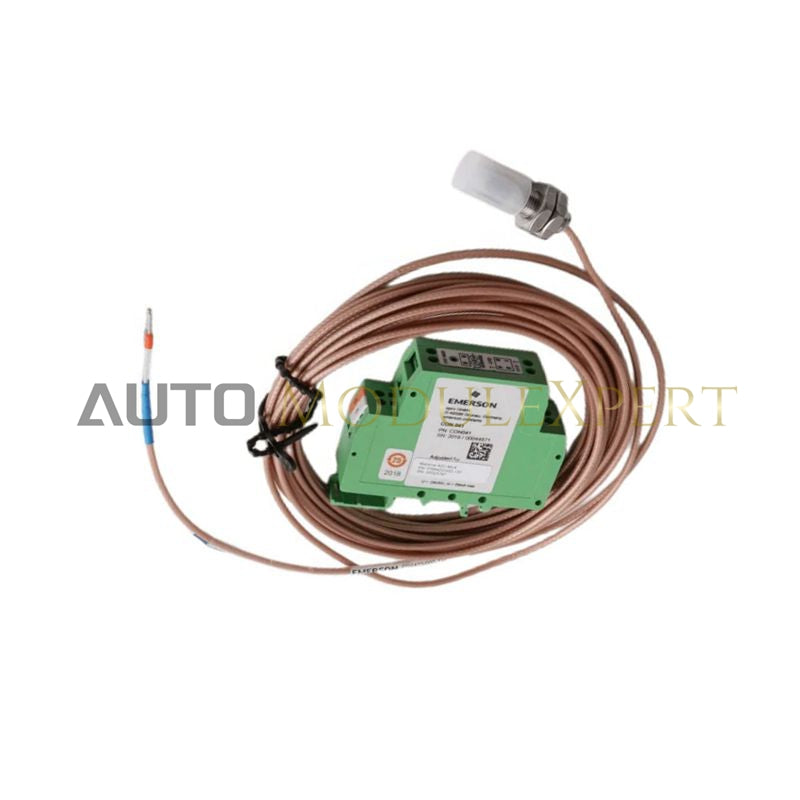

Product Overview: EPRO CON021
The EPRO CON021 is a high-precision Eddy Current Signal Converter, designed to condition and standardize signals from proximity probes in industrial monitoring systems. This specialized device converts raw sensor data into a calibrated output that represents shaft displacement or relative position. The EPRO CON021 is essential for accurate radial and axial position monitoring of rotating machinery, contributing significantly to continuous machine protection and predictive diagnostics. With exceptional signal integrity and reliability, this module integrates seamlessly into PLC and DCS systems, offering a proven solution for industrial applications.
Detailed Technical Specifications
The EPRO CON021 is engineered for superior signal processing and high-resolution mechanical movement measurement. It forms part of the eddy current measuring chain when connected to a compatible probe and extension cable. Designed for easy mounting on a DIN rail, the module can be conveniently installed and maintained in control cabinets.
The module features sophisticated electronic circuitry for linearization and conditioning of the proximity signal. The standardized analog output makes the CON021 fully compatible with existing PLC and DCS systems. The robust screw terminals ensure reliable field wiring connections.
Product Overview
The EPRO PR6424/000-000 is a non-contact eddy current sensor designed for high-precision monitoring of shaft displacement, vibration, and position in critical rotating machinery. This sensor is engineered for use in environments such as steam turbines, compressors, and pumps, where reliable, high-accuracy measurements are essential. The PR6424/000-000 integrates seamlessly with Emerson’s CON021 signal converter, enabling both dynamic and static measurements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Tip Diameter | 16 mm |
| Recommended Air Gap | 2.7 mm |
| Operating Temperature | -35°C to +100°C |
| Housing Material | Stainless steel |
| Cable Type | PTFE insulated |
| Compatible Converter | CON021 |
Key Features
-
High-Resolution Monitoring: Accurate monitoring of shaft displacement, vibration, and position for critical machinery.
-
16 mm Tip: Ideal for use with larger machinery and for installations requiring deeper mounting.
-
Rugged Construction: Stainless steel housing designed to withstand harsh industrial environments.
-
Seamless Integration: Fully compatible with CON021 signal converter for complete system integration.
-
Wide Frequency Response: Supports high-frequency measurements, up to 20 kHz, for both static and dynamic analysis.
-
Reliable Performance: Designed for long-term, stable operation in demanding conditions, such as high temperatures and vibrations.
Application Scenarios
This sensor is perfect for use in:
-
Steam and Gas Turbines: Monitoring shaft displacement and vibration to ensure optimal turbine performance.
-
Compressors and Gearboxes: Ensuring efficient and safe operation through continuous monitoring of key machinery parameters.
-
Pumps and Rotating Machinery: Detecting abnormal vibrations and displacement to prevent failures and reduce maintenance costs.
-
Predictive Maintenance Systems: Integrating into systems that provide real-time diagnostics for early detection of potential issues.
-
Power Generation and Petrochemical Plants: Essential for maintaining reliability and uptime in high-performance industrial systems.
FAQ
Q: Is this product brand new and original?
A: Yes, we only supply brand new and original factory items.
Q: Is it in stock?
A: We maintain regular inventory and support urgent orders.
Q: How long is the delivery time?
A: Delivery ranges from 3 days to 2 weeks, depending on the order size.
Q: What logistics providers do you use?
A: We typically ship via DHL, FedEx, and other global couriers.
Q: What if there is a quality issue?
A: We offer a 30-day return policy for any quality concerns.
Q: Is it compatible with CON021 modules?
A: Yes, it integrates seamlessly with CON021 signal converters.
Q: What is the sensor’s static range?
A: The PR6424/000-000 supports ±2.0 mm displacement measurement.
Product Overview of PR6423/10R-040
The EPRO PR6423/10R-040 is a non-contact eddy current sensor designed for precise vibration and displacement monitoring in rotating machinery. It is ideal for use in steam turbines, compressors, gearboxes, and fans, providing accurate measurements of shaft position, eccentricity, and motion. The sensor is engineered to perform reliably even in high-temperature environments, making it perfect for demanding industrial applications in power generation and petrochemical plants.
Technical Specifications
| Parameter | Specification |
|---|---|
| Tip Diameter | 8 mm |
| Operating Temperature | -35°C to +180°C |
| Storage Temperature | -40°C to +70°C |
| Dimensions | 50 × 25 × 20 mm |
| Weight | 0.15 kg |
Key Features
-
Non-Contact Measurement: Accurately monitors shaft vibration and displacement without physical contact.
-
High-Temperature Tolerance: Designed to withstand high temperatures up to +180°C (short-term up to +200°C).
-
Durable Stainless Steel Housing: Engineered for use in harsh environments, ensuring long-term reliability.
-
Seamless Integration: Fully compatible with CON021 signal converter, offering complete system integration for real-time monitoring.
-
Wide Frequency Range: Measures vibration and displacement across a wide range from 0.1 to 1000 Hz.
Application Scenarios
The EPRO PR6423/10R-040 sensor is commonly used in:
-
Steam and Gas Turbines: Continuous monitoring of shaft position and eccentricity to prevent damage and optimize performance.
-
Compressors and Gearboxes: Ensuring reliable operation by monitoring vibration and displacement in high-demand applications.
-
Pumps and Rotating Machinery: Used in predictive maintenance systems for early detection of mechanical issues.
-
Power Generation and Petrochemical Plants: Critical for maintaining uptime and reliability in large-scale industrial systems.
FAQ
Q: Is this product brand new and original?
A: Yes, we only supply brand new and original factory items.
Q: Is it in stock?
A: We maintain regular inventory and support urgent orders.
Q: How long is the delivery time?
A: Delivery ranges from 3 days to 2 weeks, depending on order size.
Q: What logistics providers do you use?
A: We typically ship via DHL, FedEx, and other global couriers.
Q: What if there is a quality issue?
A: We offer a 30-day return policy for any quality concerns.
Q: What is the sensor’s operating temperature range?
A: The sensor operates reliably between -35°C and +180°C, with short-term tolerance up to +200°C.
Q: Is it compatible with CON021 modules?
A: Yes, it integrates seamlessly with CON021 signal converters.
