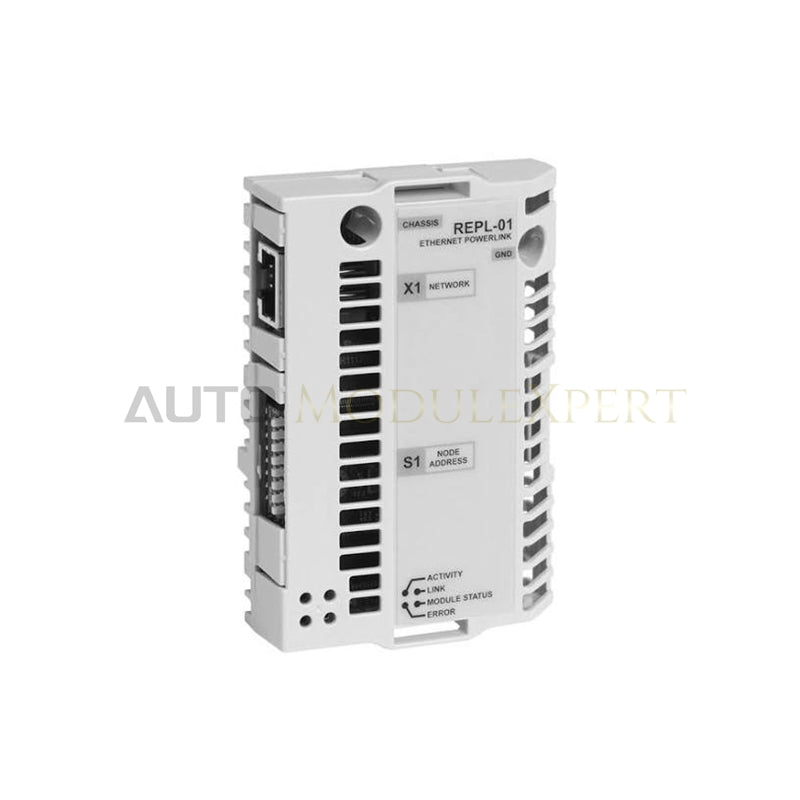

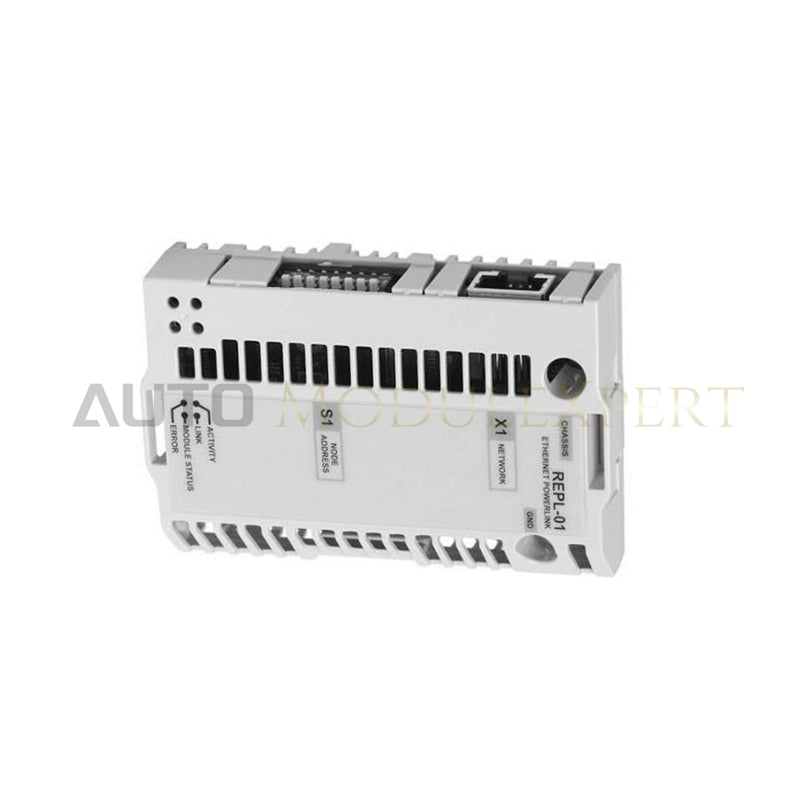

ABB REPL-01 Ethernet POWERLINK Adapter Module

The ABB REPL-01, also cataloged as the REPL-01 Ethernet POWERLINK Adapter Module, operates as a dedicated hardware component for deterministic network interfacing within ABB variable frequency drive platforms. Installed into the drive control board option slot, the module processes 34-pin parallel backplane signals to exchange cyclic Process Data Objects (PDO) and asynchronous Service Data Objects (SDO) with a central Managing Node over Ethernet POWERLINK networks at 100 Mbps.

Hardware Specifications

Backplane Bus Communication and Deterministic Network Integration

The module interfaces directly with the host controller via a 34-pin parallel bus connection, achieving high backplane bus communication velocity for continuous PDO updates. Real-time Process Data Objects map drive speed references, torque commands, and actual operating values across deterministic EtherNet POWERLINK lines without network latency degradation. Firmware flash compatibility checks occur during option slot power-up sequence to validate drive parameter configurations and ensure synchronized fieldbus operation.

Frequently Asked Questions

Q: How does the REPL-01 module execute node address assignment on the POWERLINK network?

A: Technicians set the 8-bit DIP switch on the adapter board to define the Controlled Node (CN) ID before applying power to the host drive. The module reads the switch positions during initialization and registers its node address with the network Managing Node.

Q: Can the adapter module be removed or seated while the drive control unit is energized?

A: No. Hot-swapping the 34-pin header while 5 V DC backplane power is present will damage the internal bus transceiver integrated circuits and trigger a drive fieldbus fault. The auxiliary power supply must be disconnected before board manipulation.

Field Installation Guidelines

Insert the REPL-01 module firmly into the designated option slot on the drive control board until the 34-pin connector seats completely. Fasten the module retaining screw to lock the circuit card in position and establish frame grounding contact with the drive metal chassis.

Route Category 5 (UTP, FTP, or STP) Ethernet cables away from high-voltage motor output leads and power input reactors to prevent electromagnetic interference. Ground the cable shielding braid at the enclosure entry plate to mitigate ground loop noise on fieldbus data lines. Ensure at least 5 full threads of engagement when tightening the PCB retaining screw to 0.8 N-m torque.
