Product Description

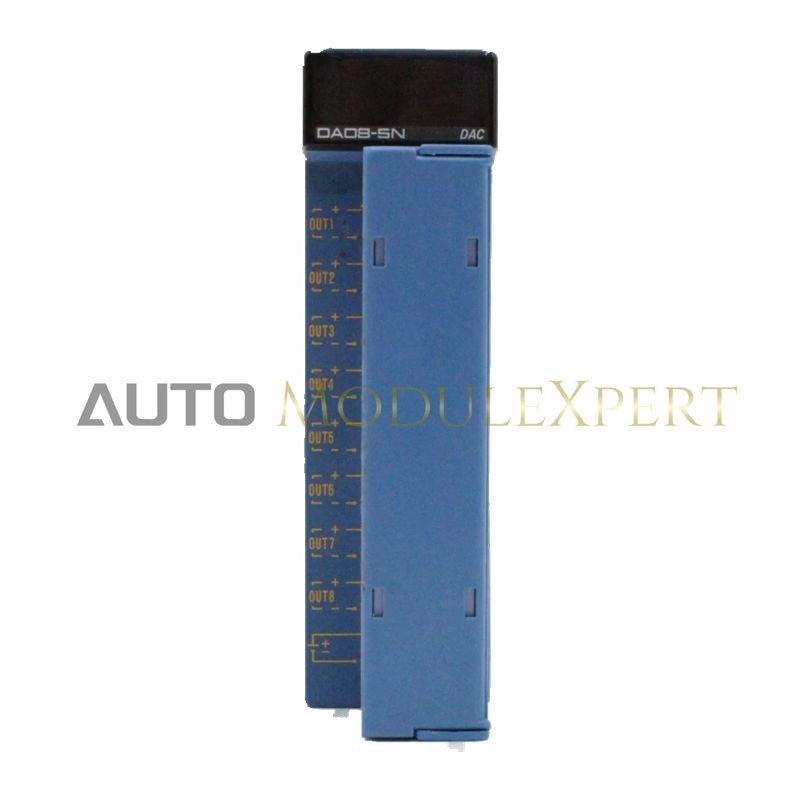

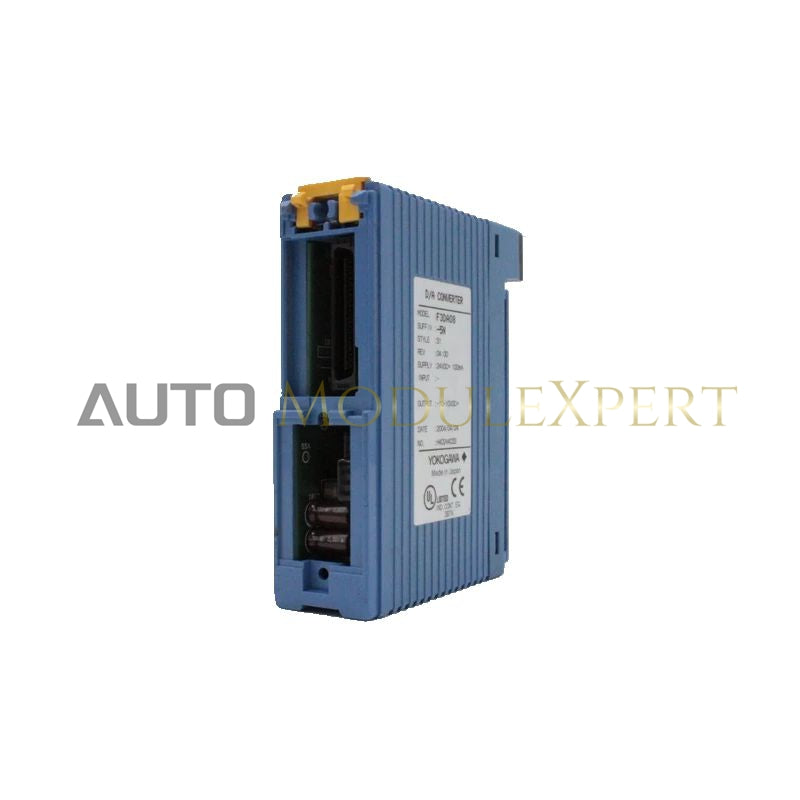

The F3DA08-5N is a high-speed analog output module designed for the Yokogawa FA-M3 Range-free controller series. It provides 8 independent high-precision voltage output channels, enabling accurate signal control for actuators, motor drives, and variable frequency controllers in advanced automation systems.
The module incorporates photocoupler isolation between the output circuits and the internal PLC logic, protecting the controller from electrical noise and field-side interference. With 12-bit digital-to-analog conversion and fast response characteristics, the F3DA08-5N delivers stable and precise output signals required for real-time process control and synchronized industrial operations.
Its compact design and compatibility with the FA-M3 Range-free architecture allow seamless integration into mixed I/O racks alongside digital modules and communication interfaces.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | F3DA08-5N |
| Module Function | Multi-channel Analog Voltage Output |
| Output Channels | 8 channels |
| Output Signal Range | -10 V DC to +10 V DC (maximum up to ±11 V DC) |
| Conversion Resolution | 12-bit D/A conversion (≈5.7 mV per step) |
| Isolation Method | Photocoupler isolation between outputs and internal logic |
| Terminal Interface | 40-pin connector |
| Minimum Load Resistance | 5 kΩ or greater |
| Dielectric Strength | 500 V DC for 60 seconds |
| Controller Compatibility | Yokogawa FA-M3 PLC CPUs (F3SP28, F3SP38, F3SP5x series) |
| Operating Temperature | 0°C to +55°C |
| Weight | 0.4 kg |
Industrial Applications and Integration
The F3DA08-5N analog output module is optimized for applications requiring fast response and high output precision. It is widely used in automation systems that rely on voltage control signals for regulating equipment behavior.
Typical applications include:
-
Synchronized motion control systems
-
Hydraulic valve positioning
-
Variable frequency drive (VFD) control
-
Laboratory automation and climate control
-
Precision manufacturing processes
The module integrates easily within FA-M3 Range-free PLC racks, allowing engineers to combine analog outputs with digital I/O and network modules in the same system. Its mounting flexibility supports both DIN rail installation and panel mounting, making it suitable for compact control cabinet designs.
FAQ
Q: Does the F3DA08-5N support current output (4–20 mA)?
A: No. The F3DA08-5N is a voltage-output-only module. For applications requiring current output, another FA-M3 module such as the F3DA08-5P should be used.
Q: Can this module be installed in any slot of the FA-M3 base unit?
A: The F3DA08-5N can typically be installed in standard I/O slots of FA-M3 base units. However, it is recommended to verify that the CPU firmware and system configuration support the specific hardware revision of the module to ensure full functionality.
| Quick Quotes | Receive price & availability FAST from our dedicated customer service team. |
|---|---|
| Delivery | Expedited, Freight, And International Shipping Available. |
| Condition | 100% New with Original Package |
| Payment | We accept American Express, Discover, MasterCard, PayPal, and Visa. Our site is secured by RapidSSL. |
| Shipping Port | ShangHai, Xiamen |
| Warranty | 12 Months |
| Q: Is Our Pricing Competitive? |
| A: Yes, we collaborate with over 50 countries worldwide. As a top supplier in China, we offer significant discounts based on market trends. |
| Q: What Is the Warranty Period? |
| A: All our new and original products come with a standard one-year warranty. |
| Q: What Payment Methods Do We Accept? |
| A: We require 100% T/T (Telegraphic Transfer) payment before shipping. For items with a lead time, a 30% deposit is needed upfront, and the remaining 70% is due before shipping. If you have a representative in China, you can arrange an RMB transfer through them. |
| Q: What Shipping Methods Do We Use? |
| A: We primarily use FedEx, DHL, UPS, and BRE for shipping. If you have an account with any of these carriers, you can handle shipping directly. We also offer free shipping to China-based freight forwarders. |
| Q: What Is Our Delivery Time? |
| A: Delivery usually takes 1-3 days after receiving the initial payment. For items with a lead time, shipping will occur according to the specified schedule. |
| Q: How Do We Package the Goods? |
| A: We ensure safe packaging with multiple layers of protection. Products are first placed in their original boxes and sealed with labels. A layer of bubble wrap is then added for collision protection during transit. Finally, the items are packed securely in durable boxes. |
| Q: How Can Customers Contact Us and Request a Quote? |
| A: You can reach out to us via email, WhatsApp, WeChat, Skype, or your preferred communication platform. Contact us with your needs, and we'll provide a prompt, customized quote. |
