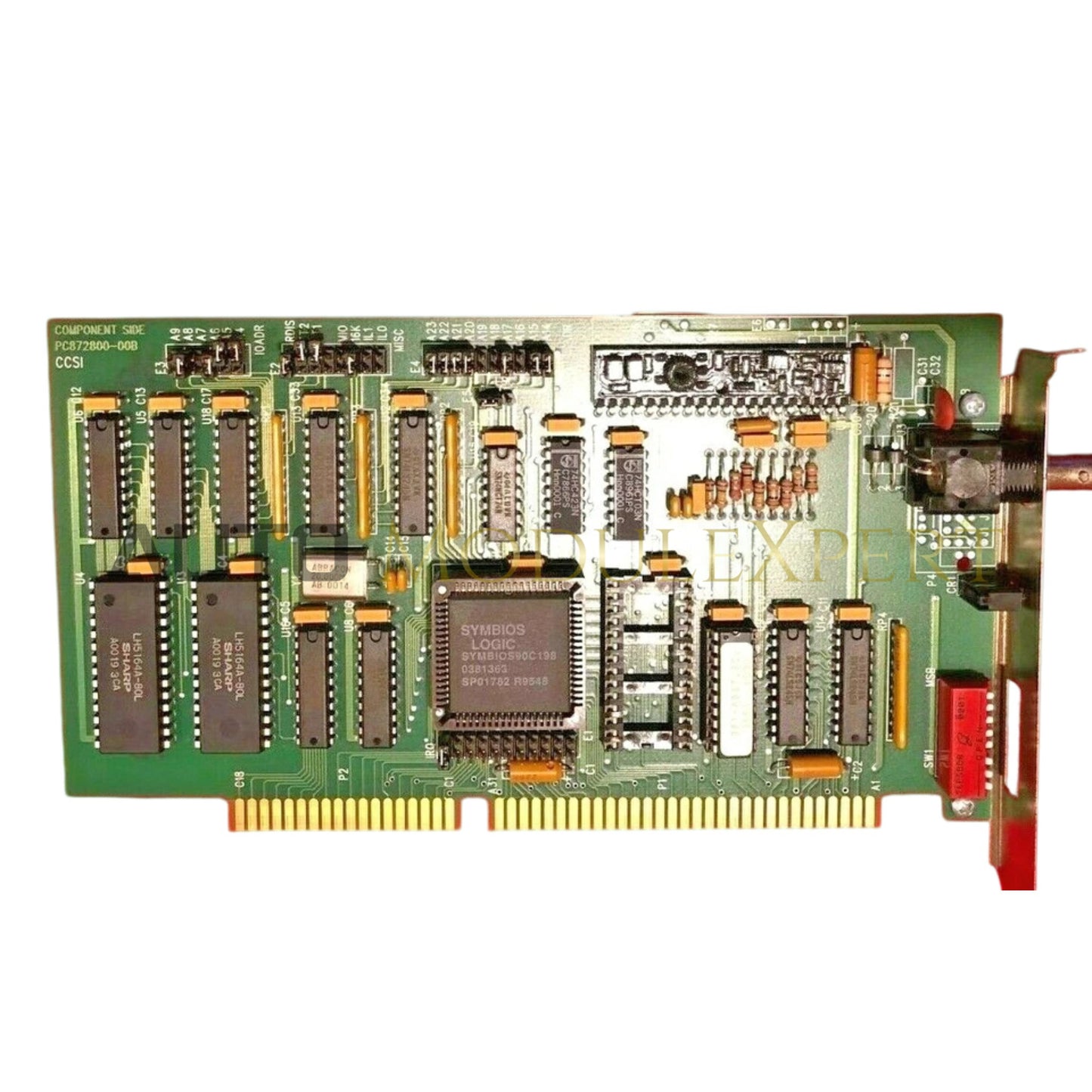

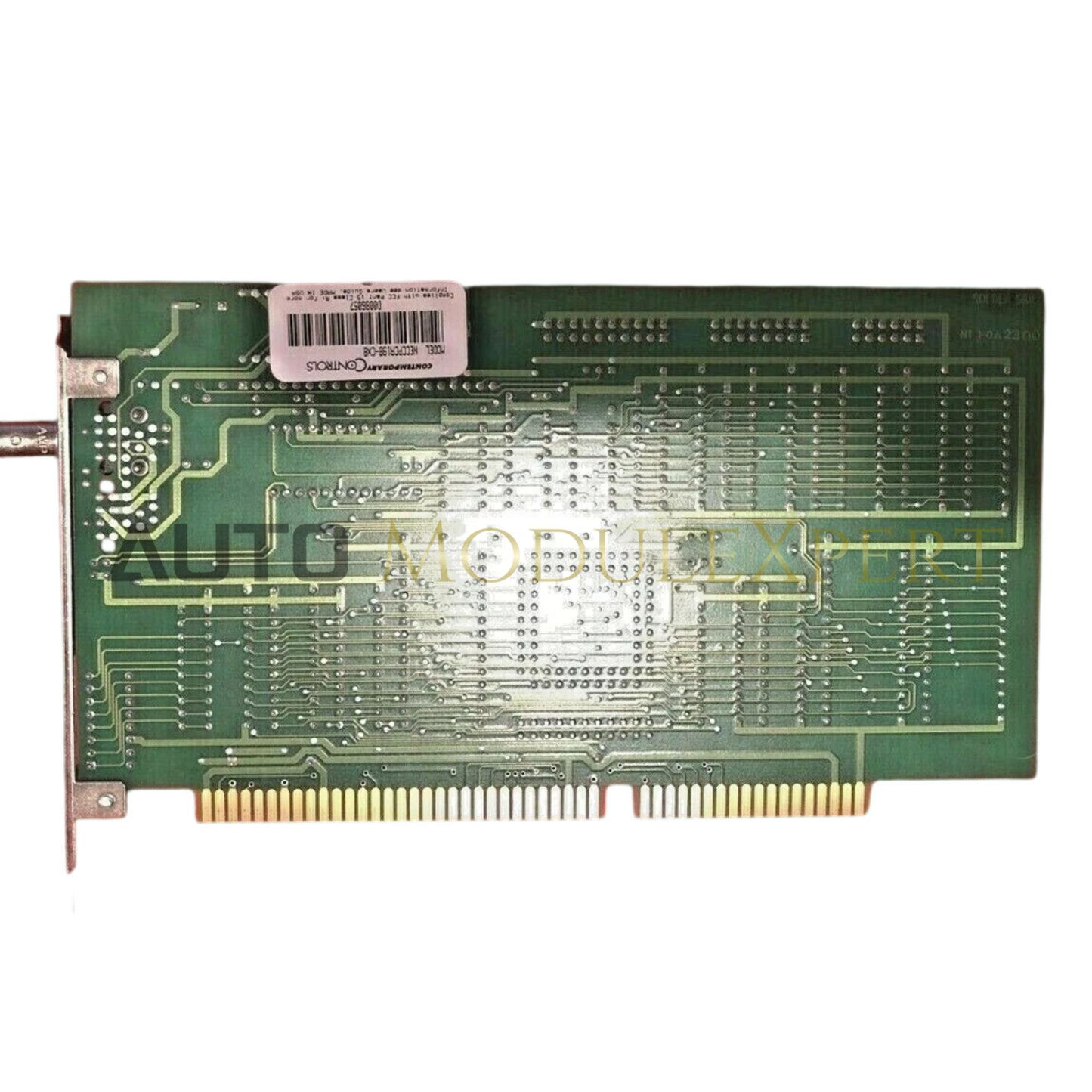

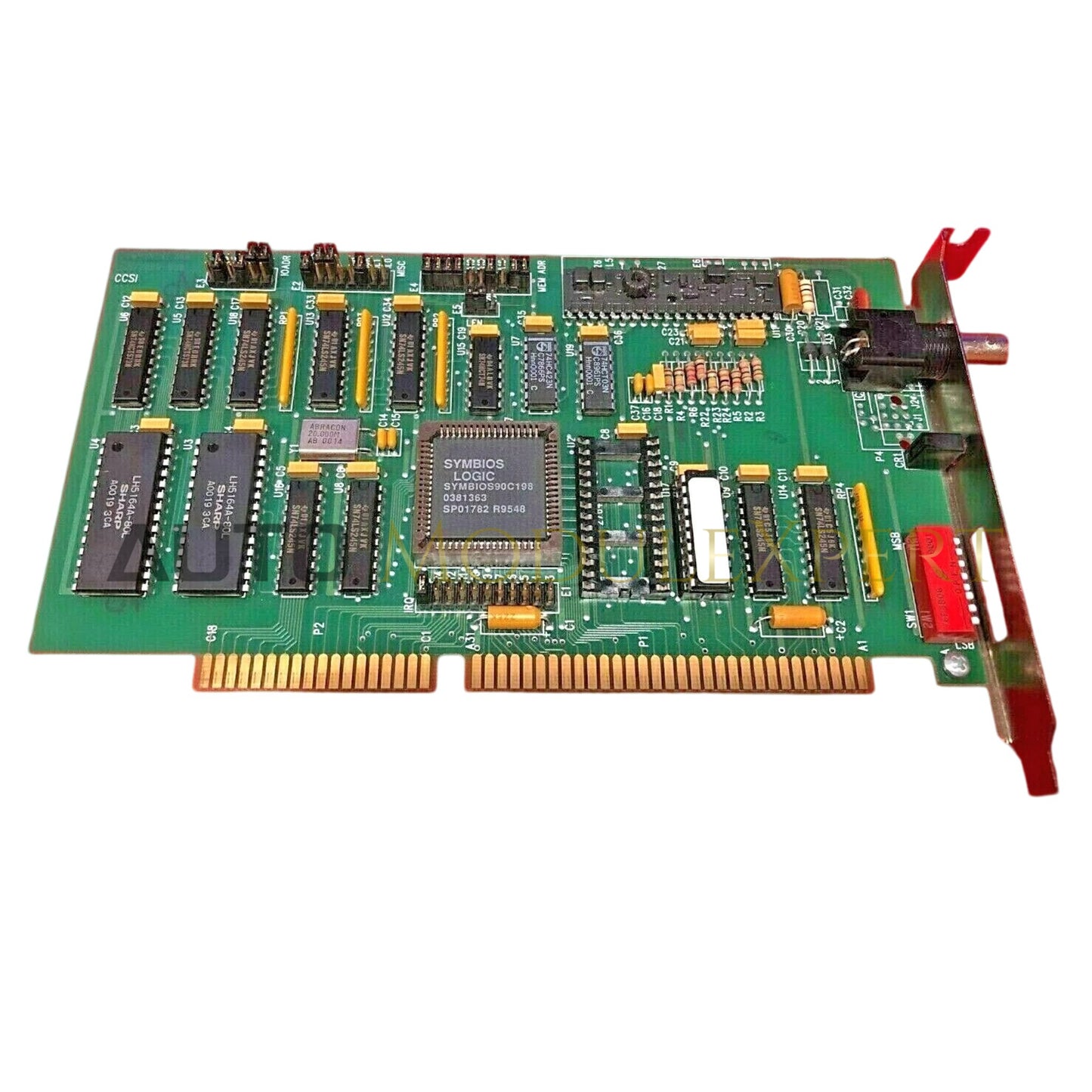

Configured for high-speed deterministic data exchange in Speedtronic Mark V turbine control networks, the GE 278A2181VRP3 (278A2181VRP3 ARCNET IDOS Communication Card) provides direct physical/electrical execution.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 278A2181VRP3 |
| Brand | GE |
| Origin | USA |
| Weight | 0.6kg |
| Dimensions | 13.00 cm x 16.00 cm x 2.00 cm |
| Operating Temp | -25 deg C to +60 deg C |
| Power Consumption | Not specified |
| Communication Protocol | ARCNET |
| System Compatibility | Speedtronic Mark V |
Industrial Control Deterministic Network Connectivity
The 278A2181VRP3 manages backplane bus communication velocity to ensure deterministic timing required for turbine control signal synchronization. Firmware flash compatibility allows for internal logic updates to align with specific network nodes. I/O density scaling and token-passing management within the ARCNET architecture minimize packet collision probability, ensuring that critical control data arrives within predefined latency intervals required for turbine protection and governing loops.
Frequently Asked Questions
Q: Does this card support hot-swapping during turbine operation?
A: No. The 278A2181VRP3 must not be inserted or removed while the controller rack is energized. Hot-swapping risks corruption of the backplane communication bus and potential damage to the card transceiver circuitry.
Q: Is external termination required for the ARCNET coaxial connection?
A: Yes. ARCNET networks require proper impedance matching. Ensure the coaxial line is terminated at both ends of the segment using the specified resistor values to prevent signal reflection and data corruption.
Field Installation Guidelines
- Ensure the host rack is powered down and de-energized before physical installation of the card.
- Verify the coaxial cable and splitter integrity, as ARCNET communication is highly sensitive to cable attenuation and shield grounding quality.
- Secure the card using the front-panel mounting screws to ensure proper electrical contact with the backplane ground rail.
- Route coaxial signal cables away from high-voltage AC cables and induction motors to minimize electromagnetic interference (EMI).
- Perform a network node check after installation to confirm that the card is correctly identified by the Mark V controller communication software.
