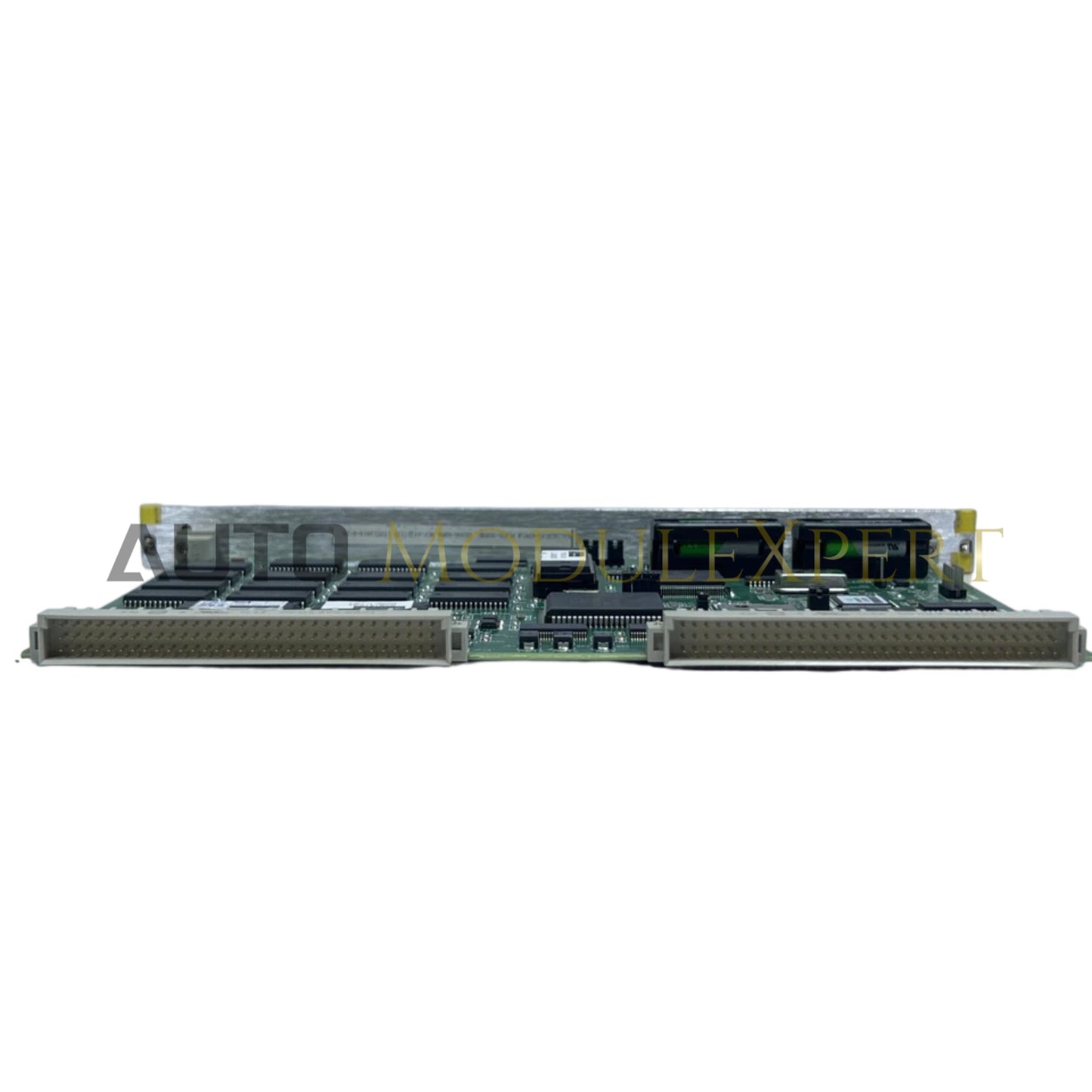

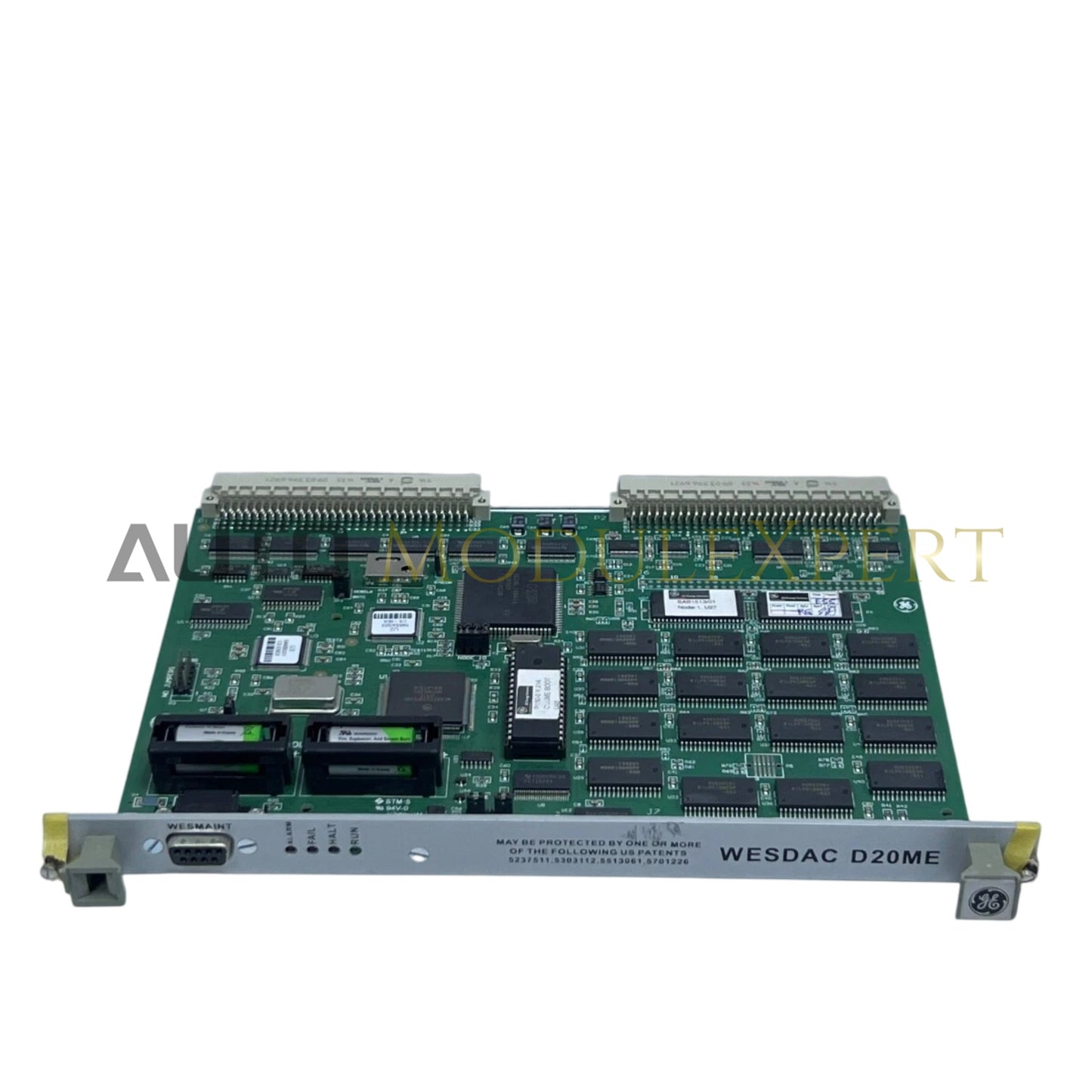

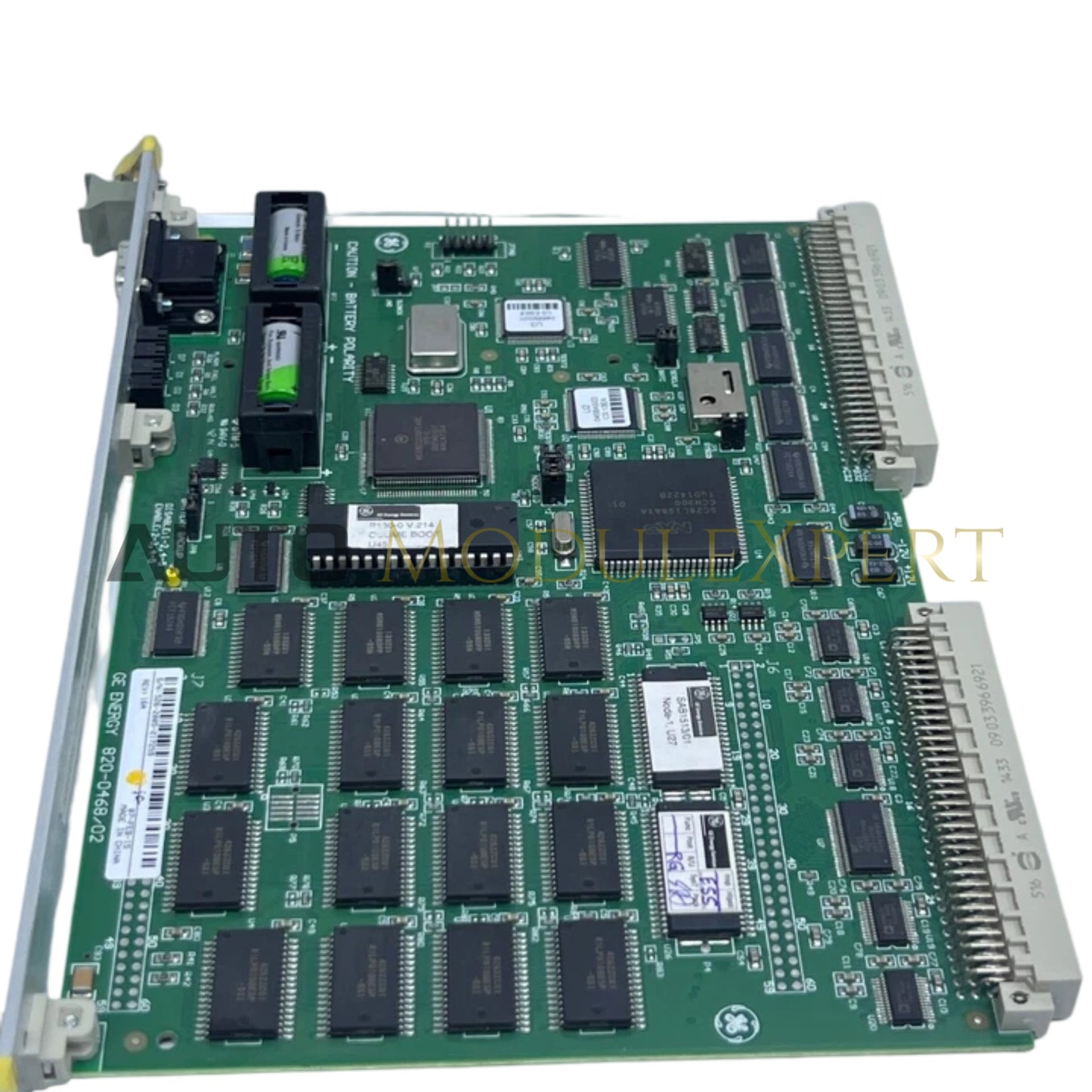

Configured for high-speed logic execution and communication routing in WESDAC D20 automation systems, the GE 820-0468/02 Main Processor Module) provides direct physical/electrical execution. The unit runs system firmware algorithms, coordinates telemetry traffic across serial and Ethernet backplane ports, and processes real-time I/O data frames from connected substation automation hardware.

Hardware Specifications

Backplane Bus Communication Velocity and Firmware Management

The processor board interfaces with the internal rack backplane to execute high-density I/O polling cycles without data loss. Embedded flash memory components retain operating system firmware and control configurations during ungraceful power failures. Integrated network controller chips handle background communication tasks independently, preventing packet bursts from impacting deterministic CPU scan times.

Frequently Asked Questions

Q: What primary function does the 820-0468/02 perform within the control rack?

A: The board functions as the main CPU card, running core firmware routines and managing real-time data flow between I/O cards and supervisory systems.

Q: How is application memory preserved during power interruptions on the 820-0468/01?

A: System code and user settings are stored in internal non-volatile flash memory, eliminating reliance on volatile memory retention.

Field Installation Guidelines

Insert the module vertically into its designated rack slot until the edge connector seats fully into the backplane socket. Secure the front panel thumbscrews to ensure proper chassis grounding and prevent vibration-induced disconnects. Connect external serial and Ethernet communication cables using shielded twisted-pair wire, maintaining a minimum 200 mm clearance from high-voltage power conduits to prevent signal interference.
