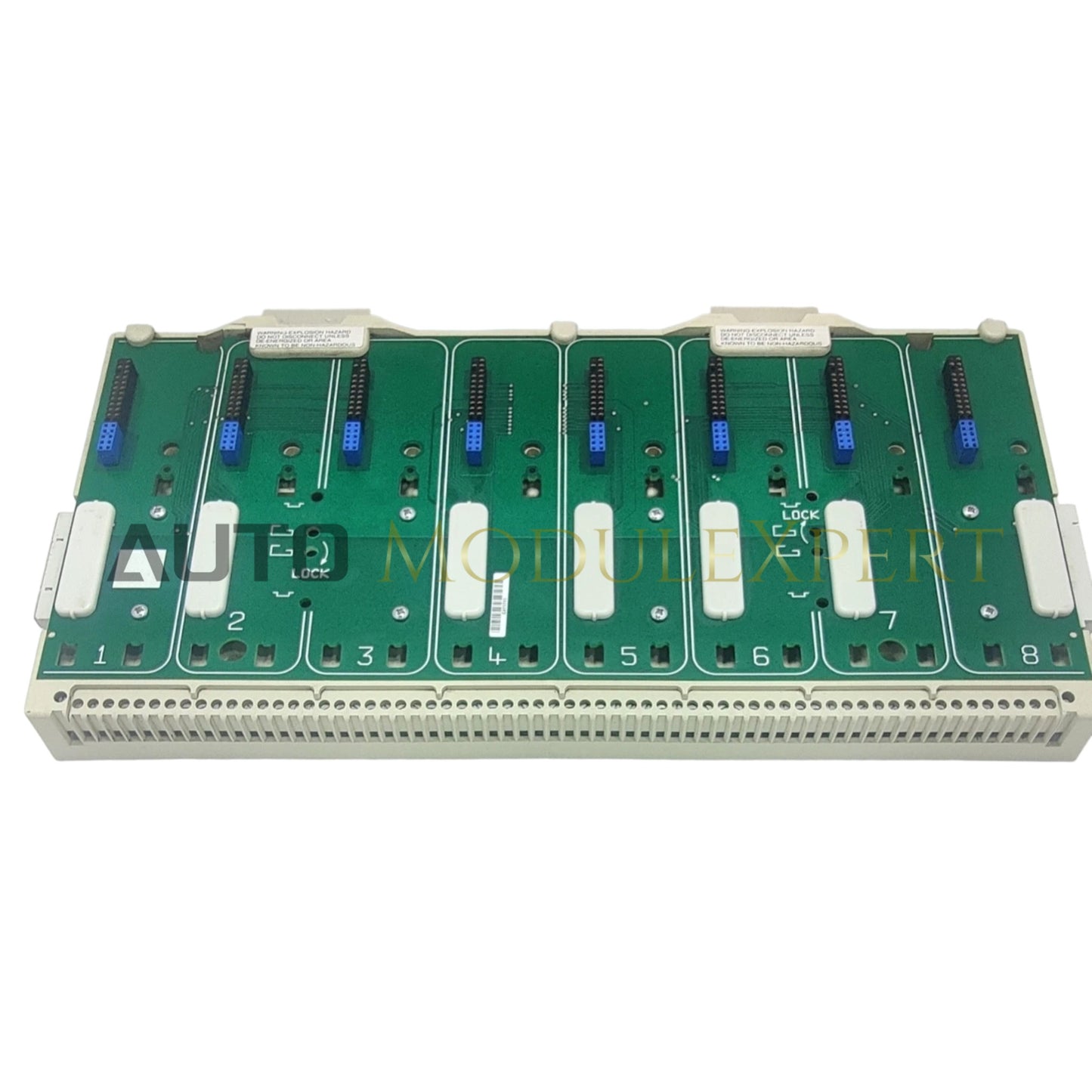

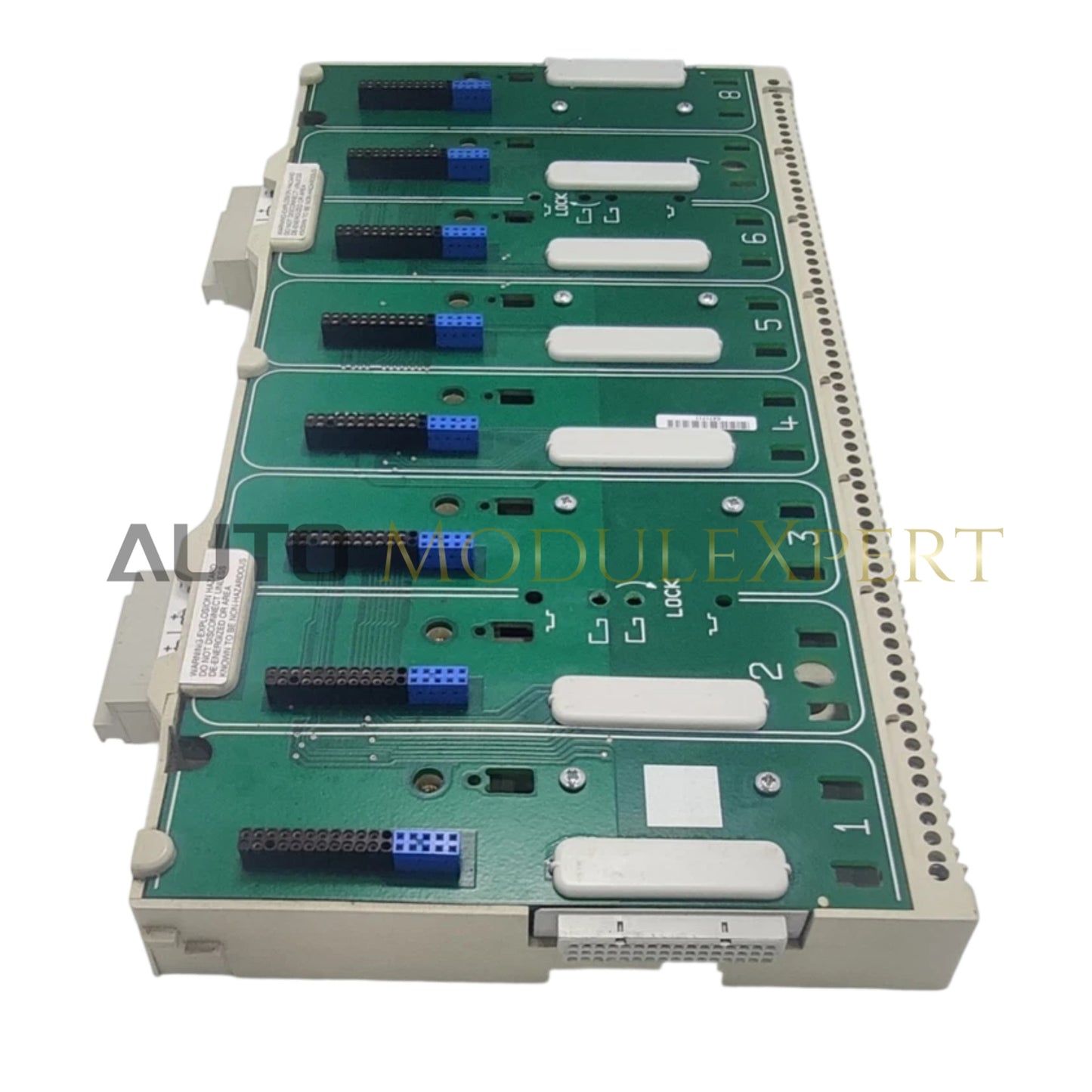

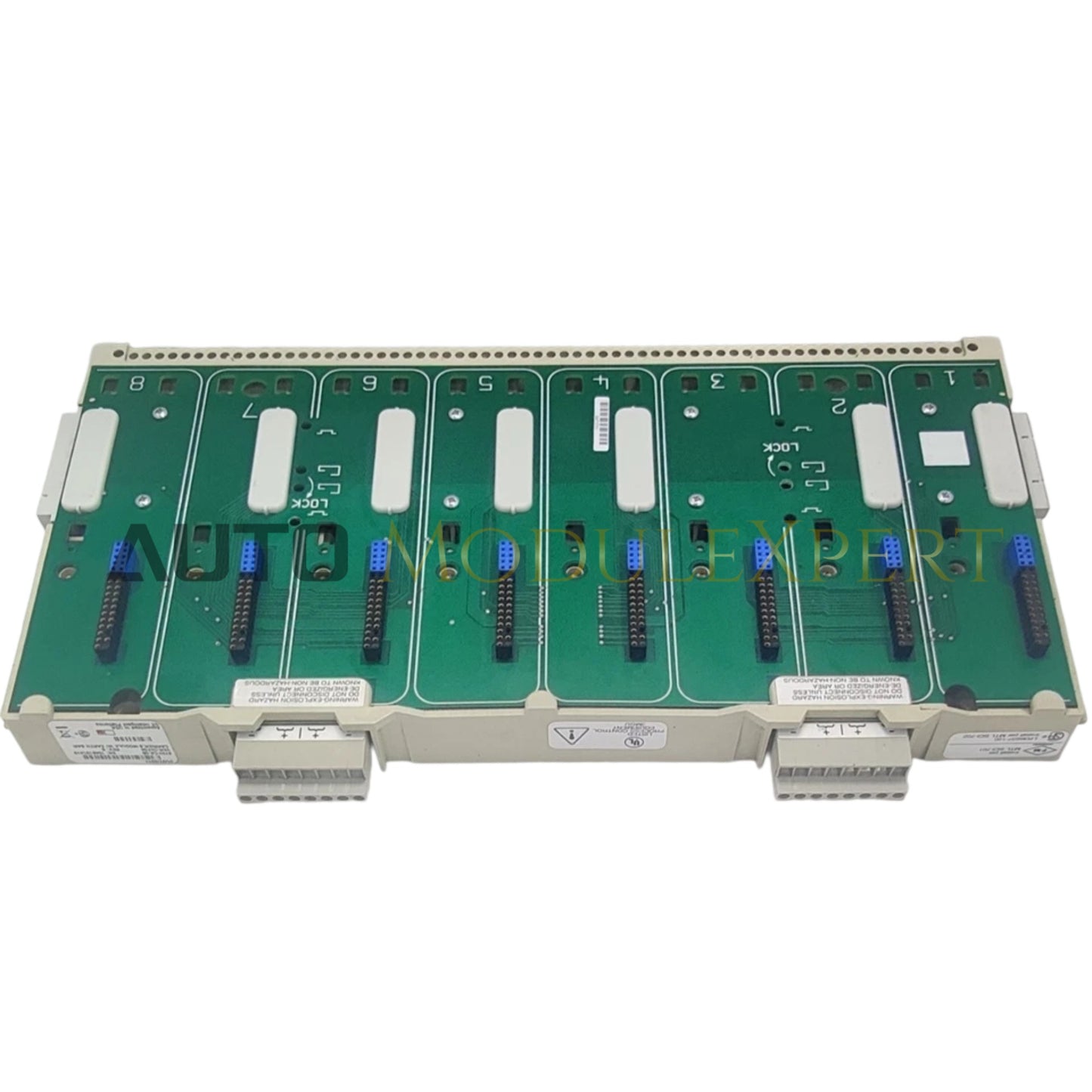

Configured for high-density signal distribution in industrial control networks, the GE 8709-CA-08 (8709-CA-08 Module Carrier) provides direct physical/electrical execution.

Hardware Specifications

Industrial Control Deterministic Network Connectivity

The 8709-CA-08 maintains backplane bus communication velocity across the 64-slot address bus, ensuring synchronized data exchange between the host CPU and connected I/O modules. The integration of female IN and male OUT Railbus connectors facilitates deterministic signal daisy-chaining, preventing packet collision and timing drift in multi-node automation architectures. Firm mechanical coupling of the carrier ensures that backplane bus impedance remains stable, supporting high-density I/O configurations without signal degradation.

Frequently Asked Questions

Q: Does the carrier support hot-swapping of I/O modules while the backplane is powered?

A: No. The 8709-CA-08 architecture does not support live module insertion or removal. The backplane must be de-energized to prevent electrical arcing and potential damage to the module pin contacts and address bus logic.

Q: How is the address bus mapped across the 8-slot capacity?

A: The 8709-CA-08 utilizes the internal 64-slot address bus structure to identify each of the 8 installed I/O modules. Ensure that the module placement complies with the specific hardware configuration and address offset requirements defined in the controller's I/O mapping table.

Field Installation Guidelines

• Ensure the DIN rail or panel surface is leveled and rigid to prevent structural stress on the carrier during module insertion.
• Verify that all Railbus connectors are clean and free of oxidation before linking multiple carriers to maintain low-impedance electrical continuity.
• Secure the carrier to the mounting surface using all provided anchor points to mitigate vibration impacts on the internal backplane traces.
• Route all I/O signal wiring in dedicated conduits, keeping them separate from high-power Railbus supply lines to minimize electromagnetic interference (EMI).
• Perform a thorough continuity check on the bus connections after installation to confirm that signal paths are correctly terminated throughout the chain.
