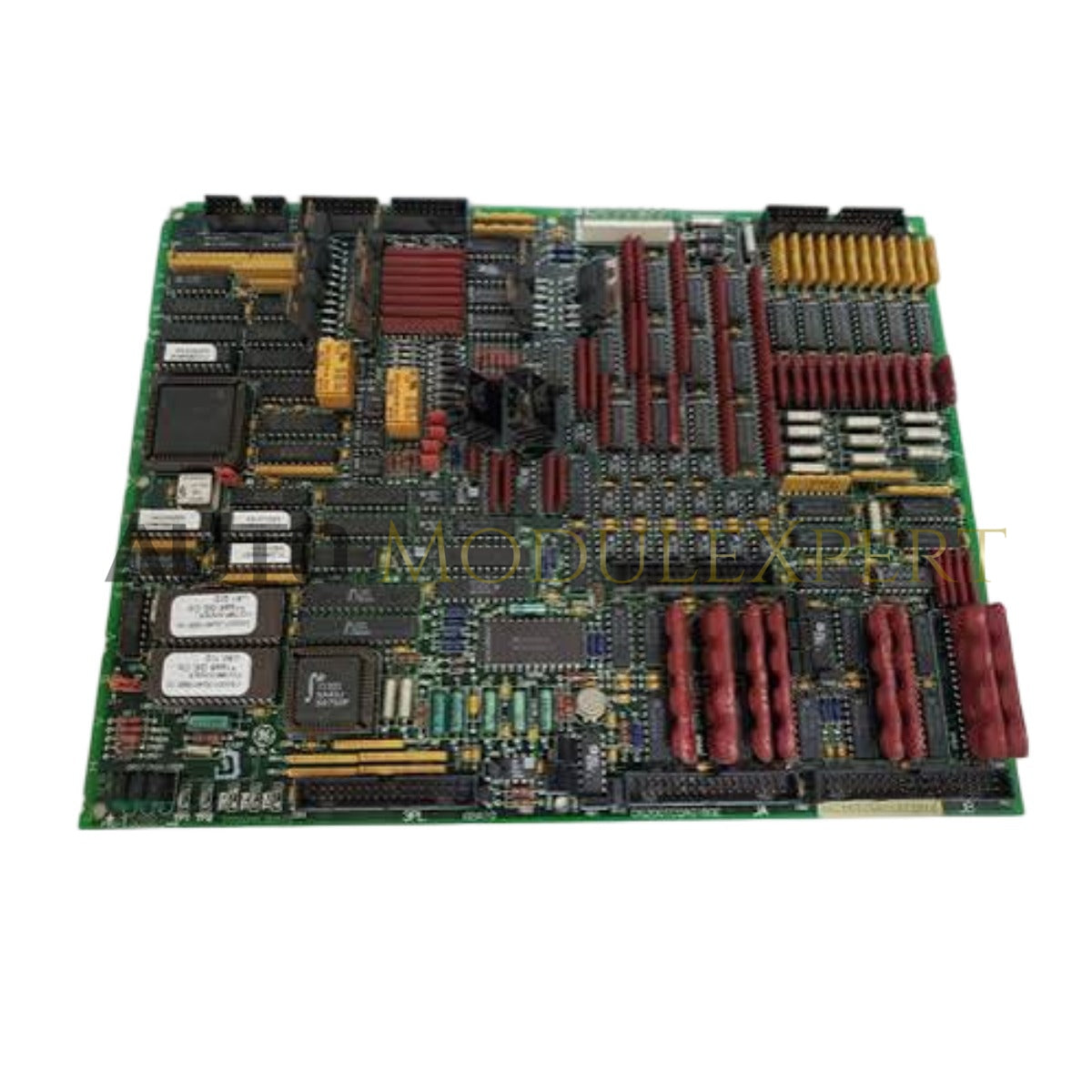

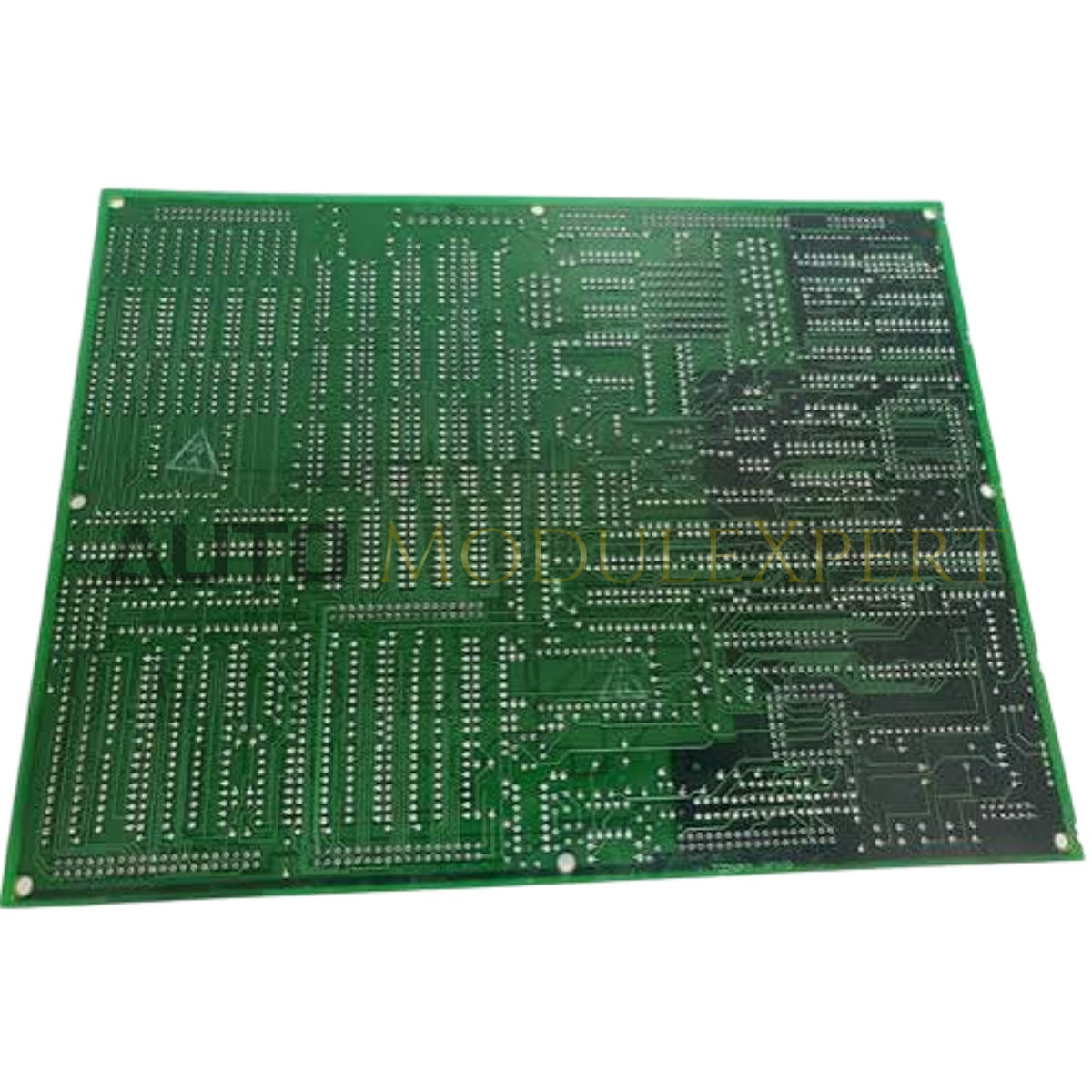

The GE DS200TCQAG1BD, also cataloged as the DS200TCQAG1BD Analog I/O Board, operates as a dedicated hardware component for analog signal acquisition and signal conditioning within Mark V Speedtronic turbine control platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | DS200TCQAG1BD |
| Brand | GE |
| Origin | USA |
| Weight | 0.67kg |
| Dimensions | 100 mm x 80 mm x 20 mm |
| Operating Temp | -40 deg C to +70 deg C |
| Power Consumption | Not specified |
| Input Voltage | 24 VDC |
| Microprocessor | Intel 80196 |
| Input Types | Analog (4-20 mA or RTD) |
Profinet / EtherNet/IP Deterministic Networks
The GE DS200TCQAG1BD serves as the primary interface for processing high-fidelity turbine variables, including temperature, pressure, and flow data. The module relies on an Intel 80196 microprocessor to manage data throughput and execute conversion routines. Firmware flash compatibility is governed by the PROM modules; the G1BD revision incorporates updated firmware and hardware logic designed to optimize bus communication velocity across the Mark V backplane. The module utilizes Modbus TCP/IP protocols for external communication, requiring stable network timing to prevent data packet loss or control processor synchronization delays during high-speed I/O scanning.
Frequently Asked Questions
Q: Can this board be replaced while the Mark V system is powered?
A: No. The DS200TCQAG1BD must be de-energized by isolating the 24 VDC power input and disconnecting all interface cabling before removal to protect the JCC and JDD 50-pin connectors from arcing.
Q: How do the JP1, JP2, and JP3 jumpers affect the module configuration?
A: These jumpers are utilized to establish hardware-level configuration states for signal input modes. Changes to jumper settings must be performed while the module is powered down to ensure proper register initialization upon restart.
Field Installation Guidelines
- Mounting: Ensure the board is firmly seated in the rack and that the 50-pin connectors (JCC and JDD) are properly aligned before locking the module into place.
- Shielding: Use shielded twisted-pair cabling for all 4-20 mA and RTD inputs. Terminate the shields at the cabinet grounding point to minimize electromagnetic interference.
- Status Monitoring: Observe the edge-mounted LED status indicator during power-up; a solid or steady blink pattern confirms that the Intel 80196 processor has successfully passed its self-diagnostic routine.
- Environmental: Although the board is rated for operations up to +70 deg C, avoid placement in areas with high levels of thermal radiation or humidity, which can affect the reliability of the PROM modules.
