Product Overview

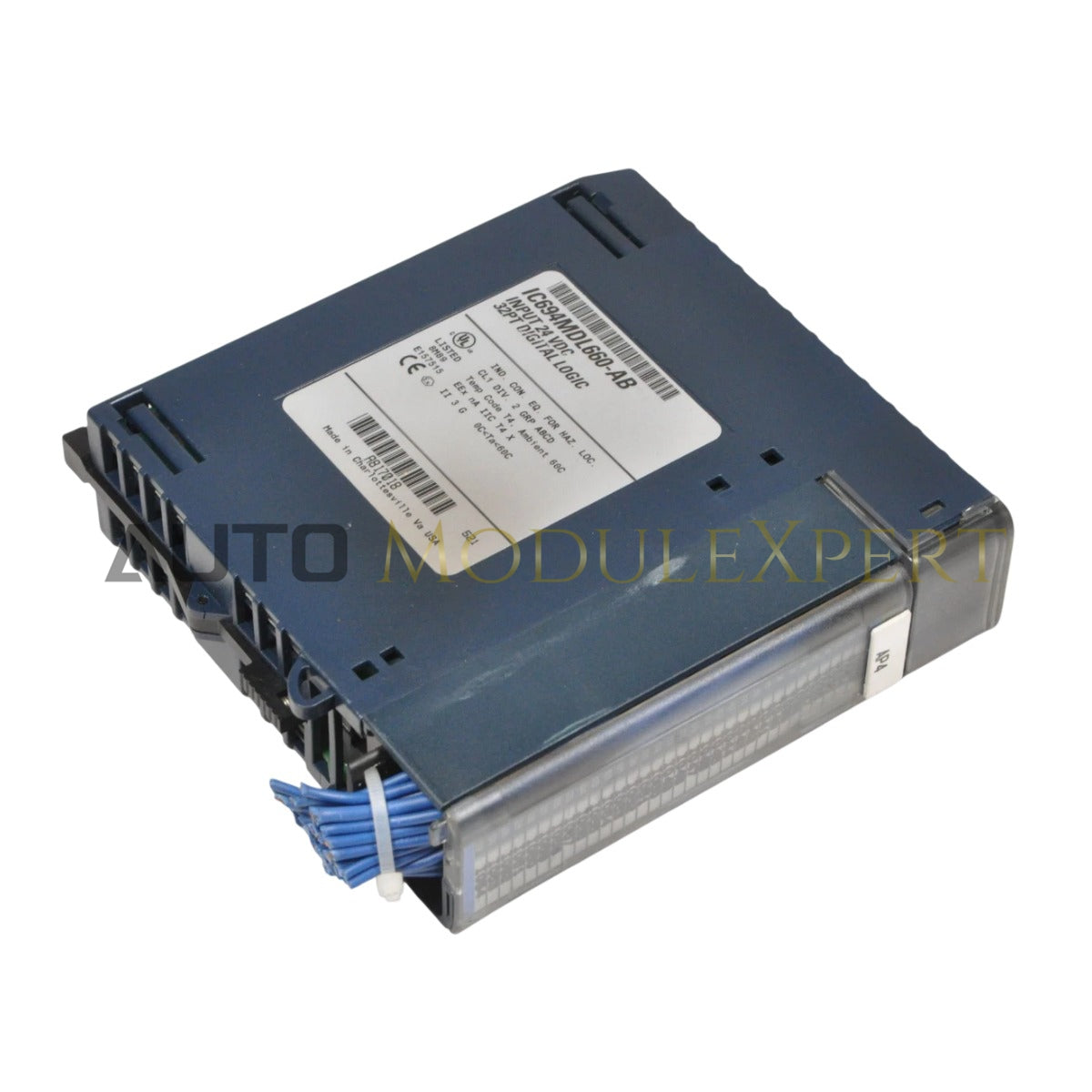

The IC694MDL660-ED is a high-density 32-point discrete input module for the GE PACSystems RX3i platform. It receives digital signals from field devices such as pushbuttons, limit switches, and proximity sensors, enabling precise real-time monitoring of industrial processes. The module supports both sourcing and sinking logic, making it compatible with a wide range of global sensor standards. Supplied as 100% Brand New original equipment, it ensures dependable performance in demanding automation environments.

Technical Specifications

Engineering Advantages

High-Density Signal Acquisition
32 input points in a single module reduce rack space requirements while maximizing I/O capacity in RX3i systems.

Flexible Logic Compatibility
Supports both NPN and PNP sensor types, reducing inventory complexity and increasing application flexibility.

Group Isolation Design
Inputs are divided into four isolated groups of eight, preventing electrical noise or faults from propagating across channels.

Integrated Diagnostic LEDs
Each input point includes a dedicated LED indicator, enabling fast visual verification during installation and troubleshooting.

FAQs

What type of terminal block is required?
A high-density terminal block or compatible wiring assembly is required due to the 32-point configuration.

Can I mix sourcing and sinking inputs?
Yes, but only between isolated groups. Each group of eight inputs must share the same common configuration.

What does the “-ED” suffix mean?
It indicates a specific hardware revision or updated manufacturing version. The supplied unit is the latest 100% Brand New revision.

Is it compatible with Series 90-30 systems?
It is designed for RX3i systems but may be used in compatible configurations when controlled by an RX3i CPU with appropriate backplane setup.
