Product Overview

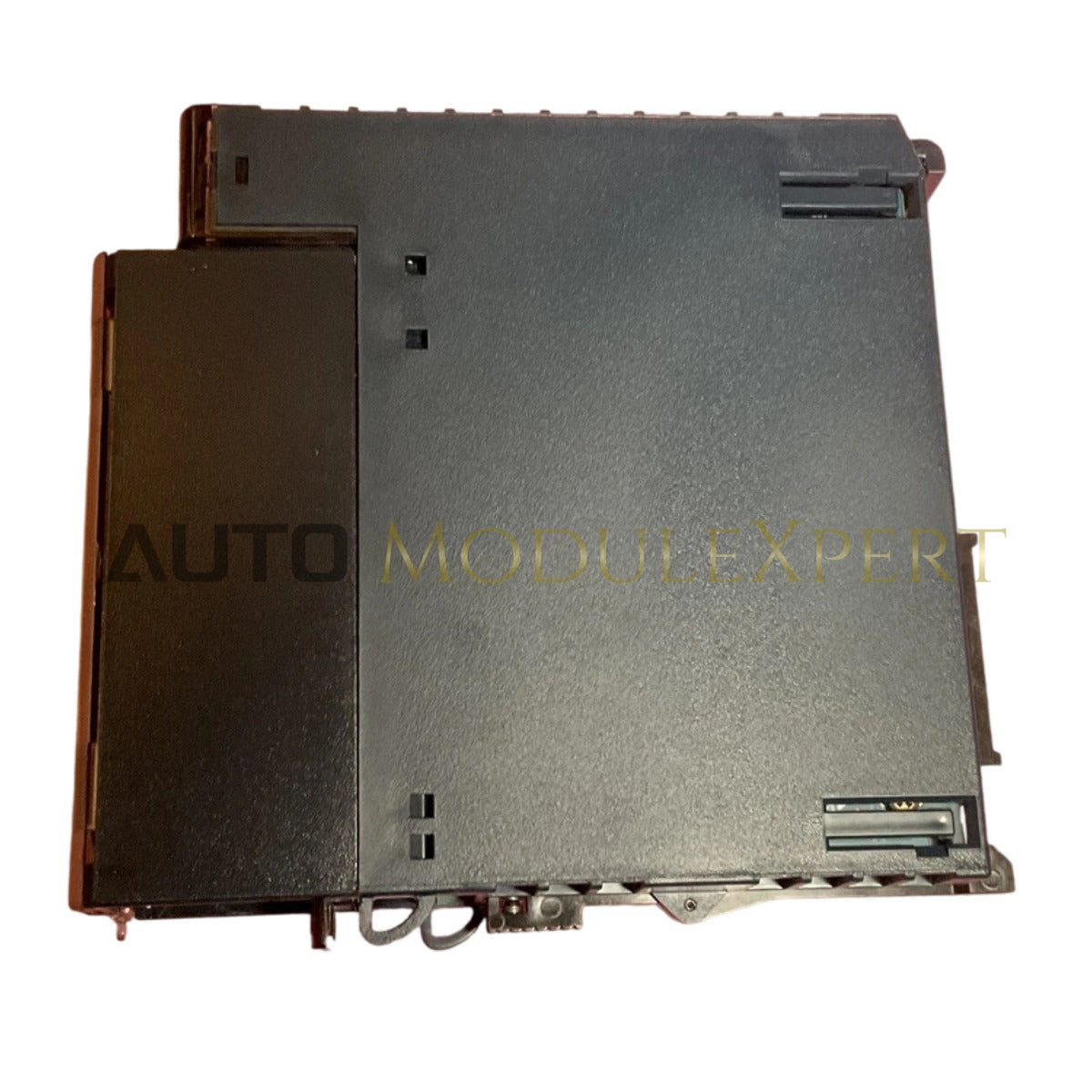

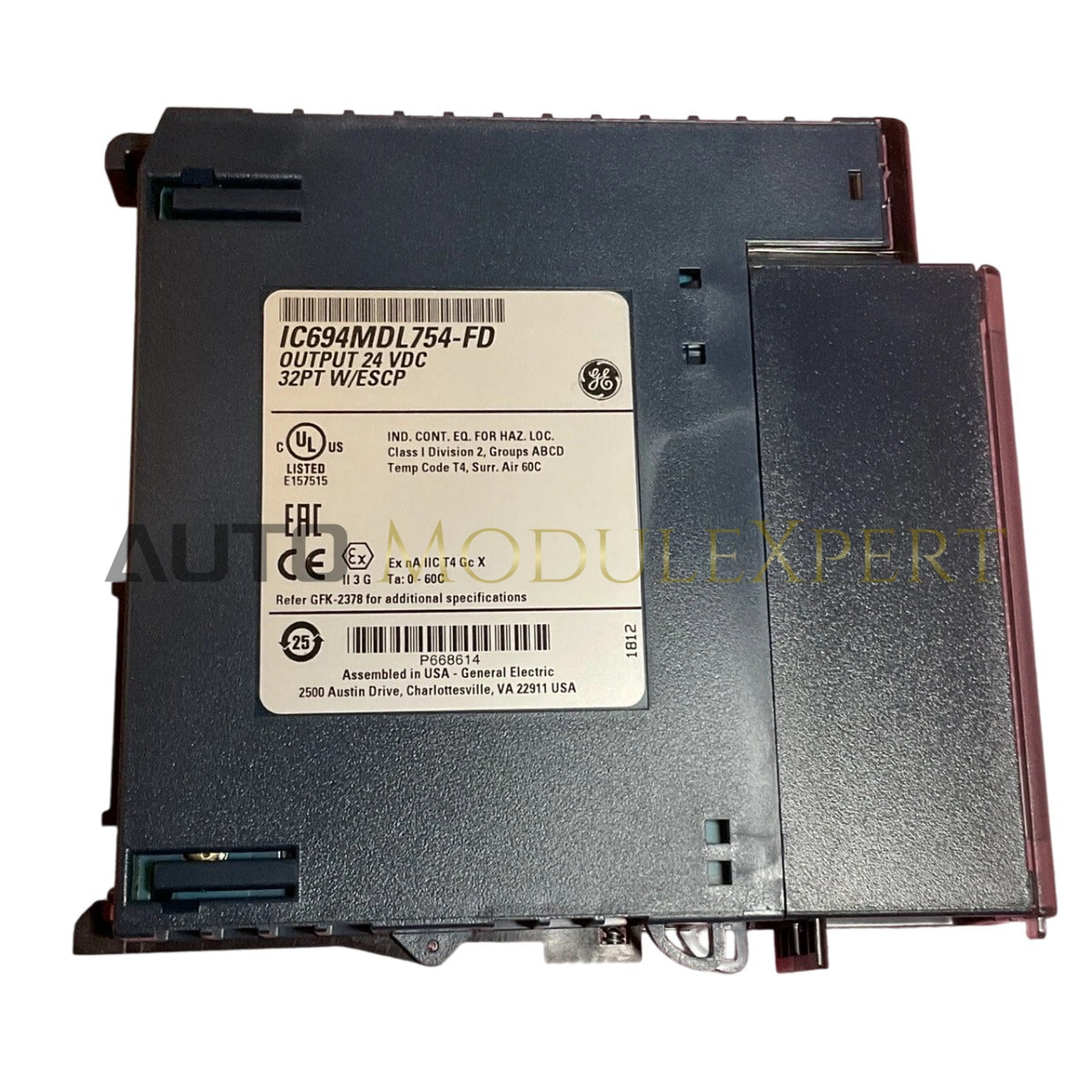

The IC694MDL754-FD is a 32-point high-density discrete output module for the PACSystems RX3i platform. It uses 12/24VDC sourcing (positive logic) outputs to control industrial loads such as solenoids, relays, and indicators. Designed for compact, high-performance automation systems, it provides fast and reliable switching. We supply this unit as 100% Brand New and Original factory stock.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | GE Fanuc / Emerson Automation |
| Product Line | PACSystems RX3i |
| Model Number | IC694MDL754-FD |
| Output Type | 12/24VDC Sourcing (Positive Logic) |
| Output Points | 32 (2 isolated groups of 16) |
| Rated Voltage | 12–24 VDC |
| Load Current | 0.75 A per point (3.0 A per group max) |
| Response Time | 0.5 ms max |
| Backplane Power | 300 mA from +5V bus |
| Weight | 0.40 kg |
Engineering Advantages
High-Density Output Design
32 outputs in one slot reduce rack size, wiring, and overall system cost.
Dual Isolated Groups
Two independent 16-point groups allow separate power domains or safety segmentation.
Fast Switching Performance
0.5 ms response supports high-speed machine control and synchronized operations.
Built-In Protection
Electronic short-circuit protection improves reliability and reduces downtime risk.
FAQs
What does “-FD” mean?
It indicates a hardware revision with improved internal components and thermal design, fully backward compatible.
Can it drive solenoids?
Yes, within the 0.75A per point and 3.0A per group limits. Use proper suppression for inductive loads.
What wiring method is used?
A high-density connector requiring breakout cables or terminal adapters.
Is this product new and original?
Yes. The IC694MDL754-FD is 100% Brand New and Original factory stock.
