Product Overview

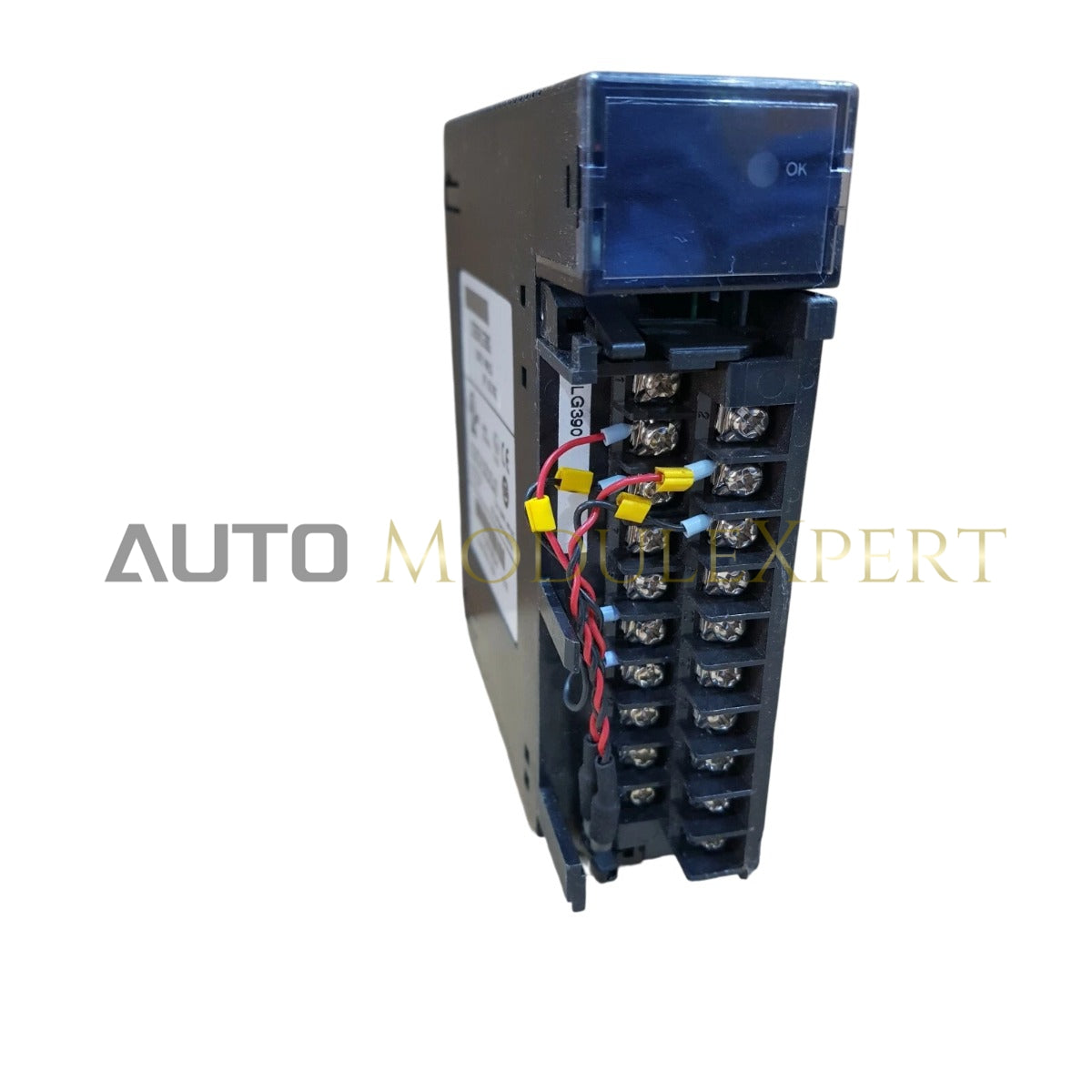

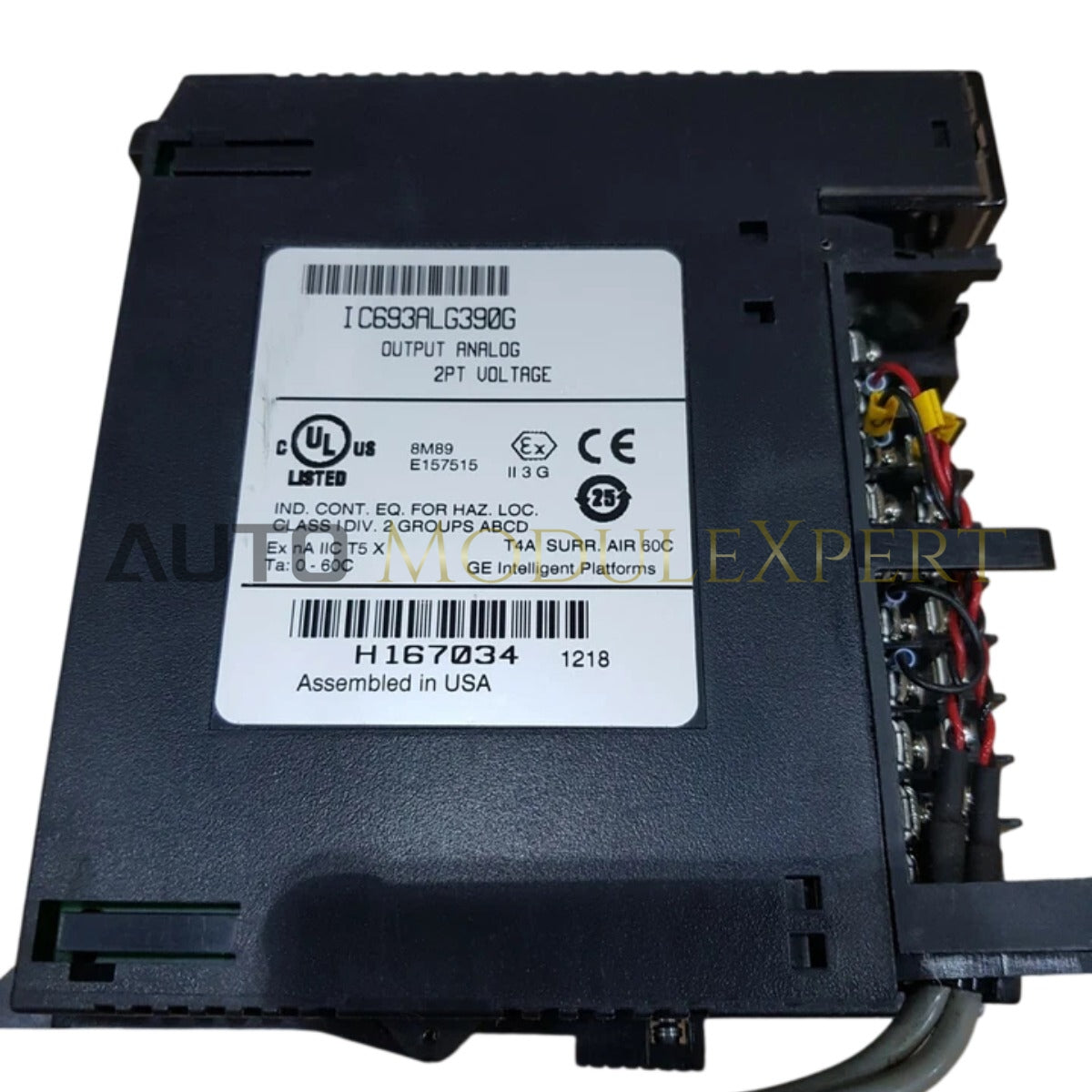

The IC693ALG390G is a high-resolution analog voltage output module designed for the GE Fanuc Series 90-30 PLC system. It provides two independent output channels capable of generating bipolar signals from -10V to +10V, making it ideal for controlling variable speed drives, control valves, and actuators. This unit is supplied as 100% brand new and original, ensuring precise signal performance and long-term reliability in industrial environments.
Technical Specifications
| Parameter | Description |
|---|---|
| Channels | 2 independent voltage outputs |
| Output Range | -10 to +10 VDC |
| Resolution | 13 bits (12 bits + sign) |
| Accuracy | ±5 mV at 25°C; ±15 mV full range |
| Update Rate | 5 ms (typical, both channels) |
| External Power Requirement | 24 VDC (backplane or external supply) |
| Current Draw | 40 mA (+5V bus); 100 mA (+24V bus) |
| Operating Temperature | 0 to 60°C (32 to 140°F) |
| Load Capacitance | 2000 pF (max) |
Engineering Advantages
Bipolar Output Capability
Supports true ±10V output, enabling direct control of bidirectional devices without additional signal conditioning hardware.
Signal Isolation
Internal isolation protects the PLC backplane from electrical noise, reducing the risk of ground loops and transient disturbances.
High-Resolution Performance
13-bit resolution ensures smooth analog output transitions, improving control stability and accuracy in precision applications.
Compact Design
Single-slot form factor maximizes rack space efficiency while adding advanced analog control capability.
FAQs
What does the “G” revision indicate?
It represents the latest hardware revision, offering improved reliability while remaining fully backward compatible with earlier versions.
Does the module require an external 24V DC supply?
It can draw power from the backplane. An external 24V DC supply may be used if additional power capacity is required.
Can this module be used for 4–20 mA signals?
No. It is strictly a voltage output module. For current outputs, use IC693ALG391 or IC693ALG392.
Is the product factory sealed?
Yes. Each IC693ALG390G is delivered as a 100% brand new unit in original factory-sealed packaging.
