Product Overview

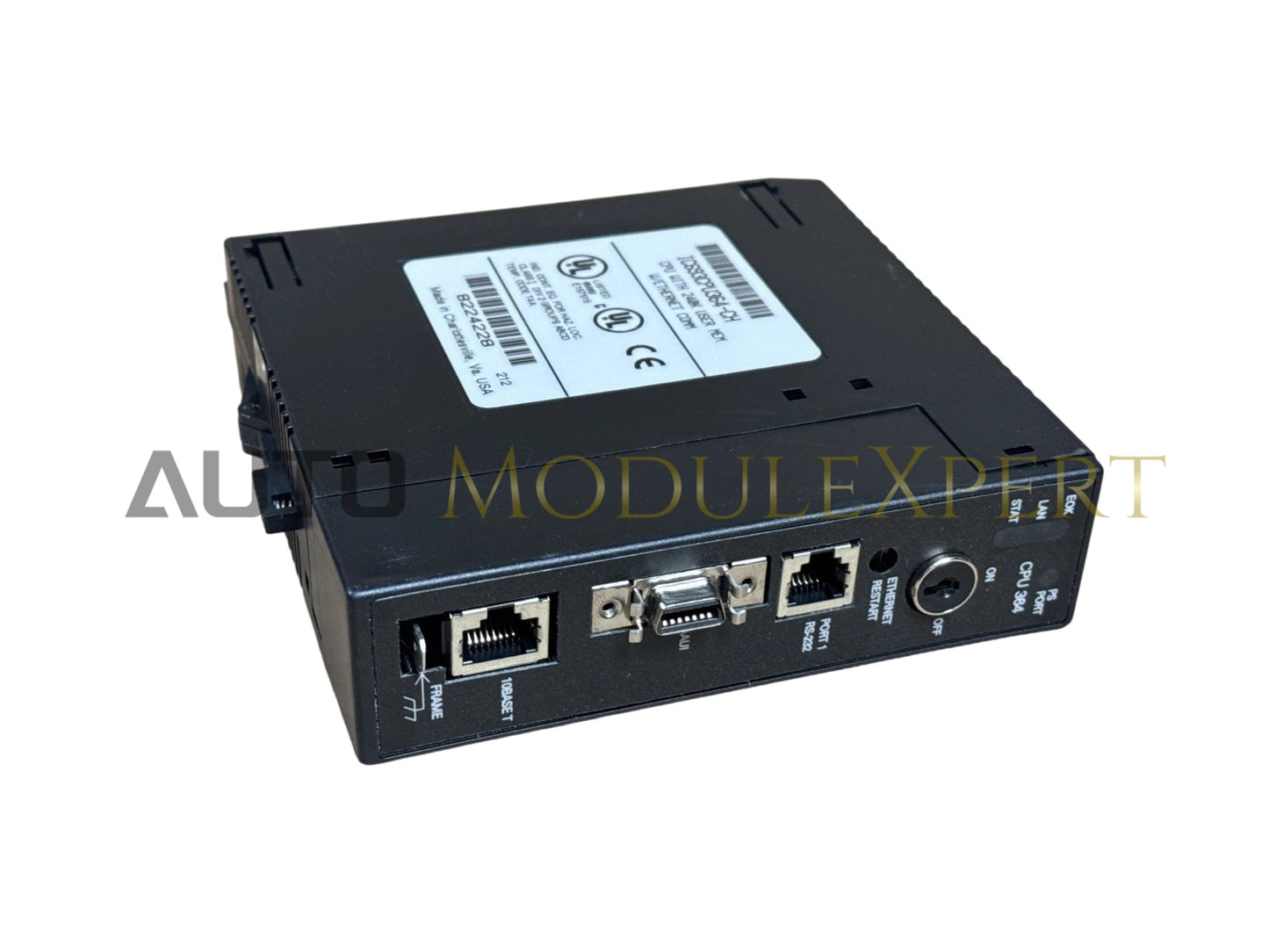

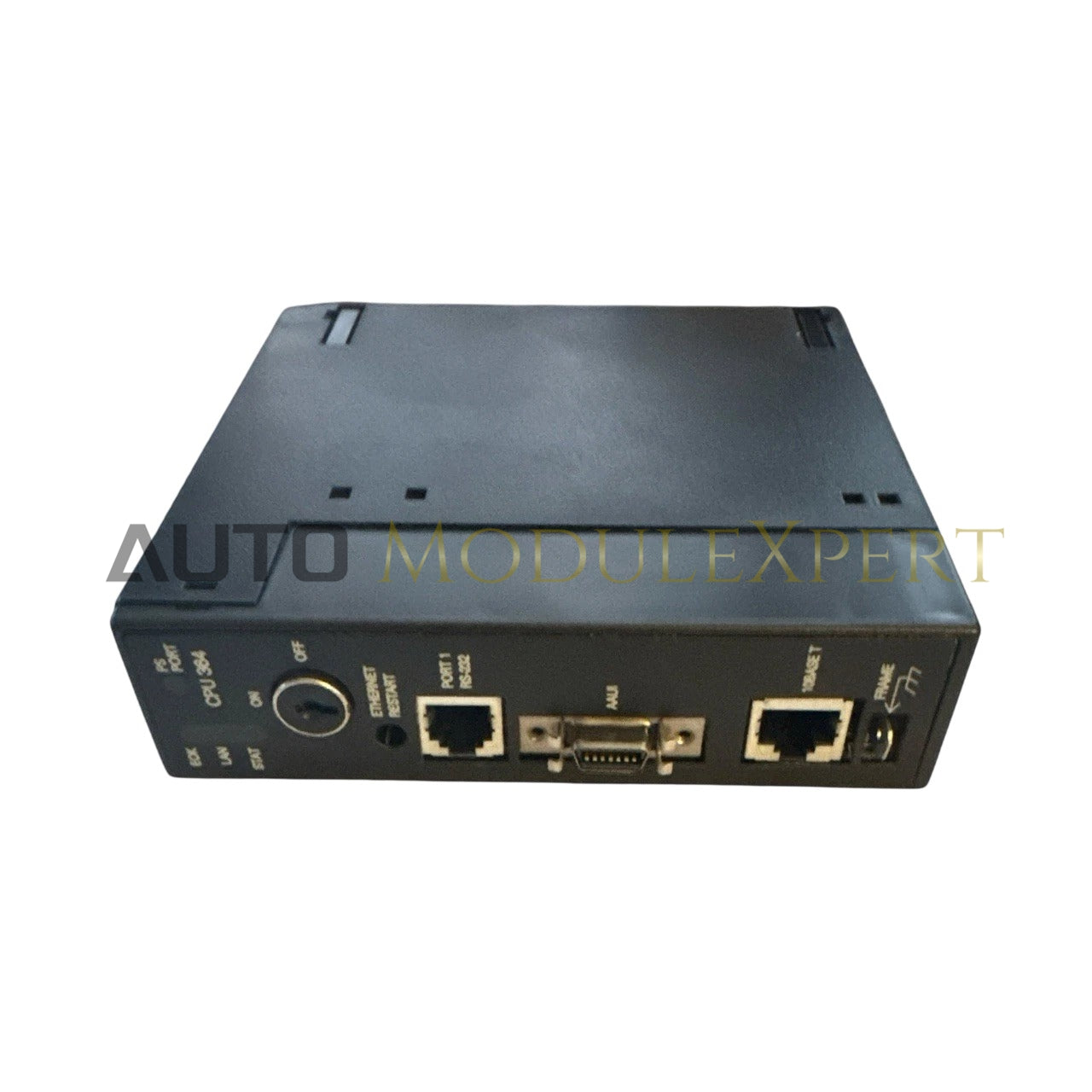

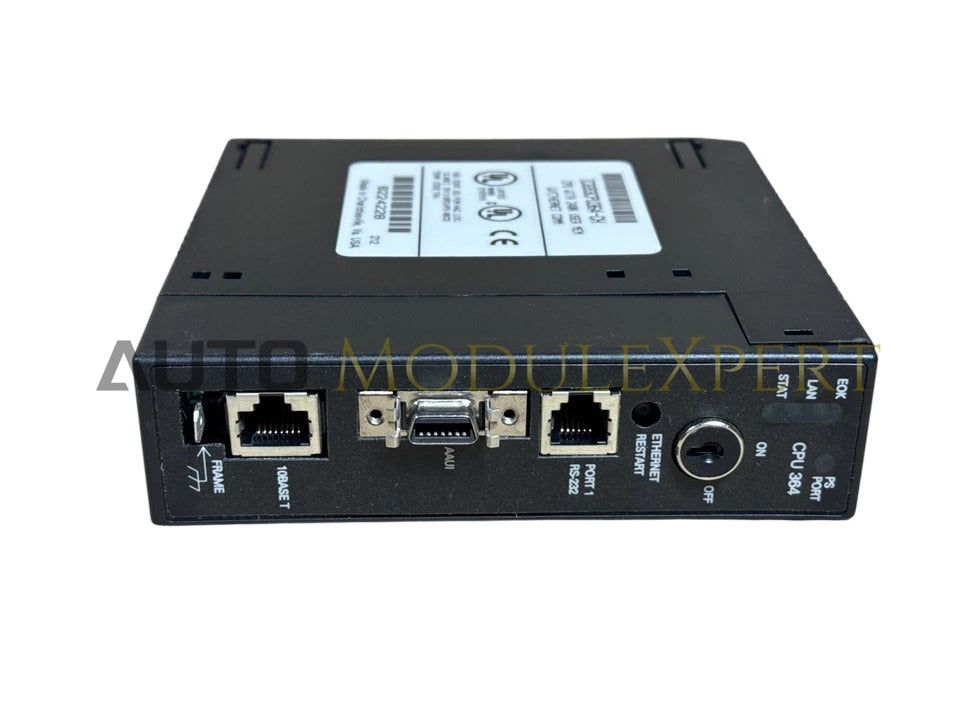

The IC693CPU364-CH is a high-performance processing engine for the GE Fanuc Series 90-30 PLC, featuring an integrated 80386EX processor and Ethernet interface. It enables direct network connectivity, eliminating the need for a separate communication module. With its powerful processing capabilities and support for large-scale I/O, it is ideal for legacy system upgrades or high-speed automation expansions. Supplied in 100% Brand New original condition, it ensures long-term reliability.
Technical Specifications
| Specification | Value |
|---|---|
| User Memory | 240 KB (RAM and Flash) |
| Embedded Communications | 1x Ethernet (RJ-45), 1x RS-485 (via power supply) |
| Ethernet Data Rate | 10 Mbps |
| Protocols | SRTP, Ethernet Global Data (EGD) |
| Discrete I/O Points | Up to 2048 inputs and 2048 outputs |
| Analog I/O Channels | Up to 1024 inputs and 256 outputs |
| Current Draw | 1.0 Amps from +5 VDC backplane bus |
| Typical Scan Rate | 0.22 ms per 1K of boolean logic |
Key Features
-
Integrated Ethernet Connectivity: Direct Ethernet communication reduces the need for additional communication modules, saving space and cost.
-
Large Memory Capacity: 240 KB of memory accommodates extensive logic programs and diagnostic routines.
-
Flash Memory Backup: Non-volatile Flash memory ensures data retention even during power loss, protecting user programs and configurations.
-
Floating Point Math Support: Ideal for process control tasks involving complex calculations like flow, temperature, and pressure scaling.
-
Universal Compatibility: Installs into any Series 90-30 baseplate, allowing easy upgrades for older systems.
FAQs
Does this CPU require a specific power supply?
No, it works with all Series 90-30 power supplies, but ensure your power supply can support the CPU and I/O modules' total load.
What does the "-CH" suffix indicate?
The "-CH" suffix represents a hardware revision or regional version, maintaining full compatibility with the IC693CPU364 series.
Can I program this CPU using the Ethernet port?
Yes, programming, configuration, and monitoring are supported via Ethernet using PAC Machine Edition or Proficy Logic Developer software.
Does this module support hot-swapping?
No, the PLC rack must be powered down before installing or removing the CPU to prevent damage.
