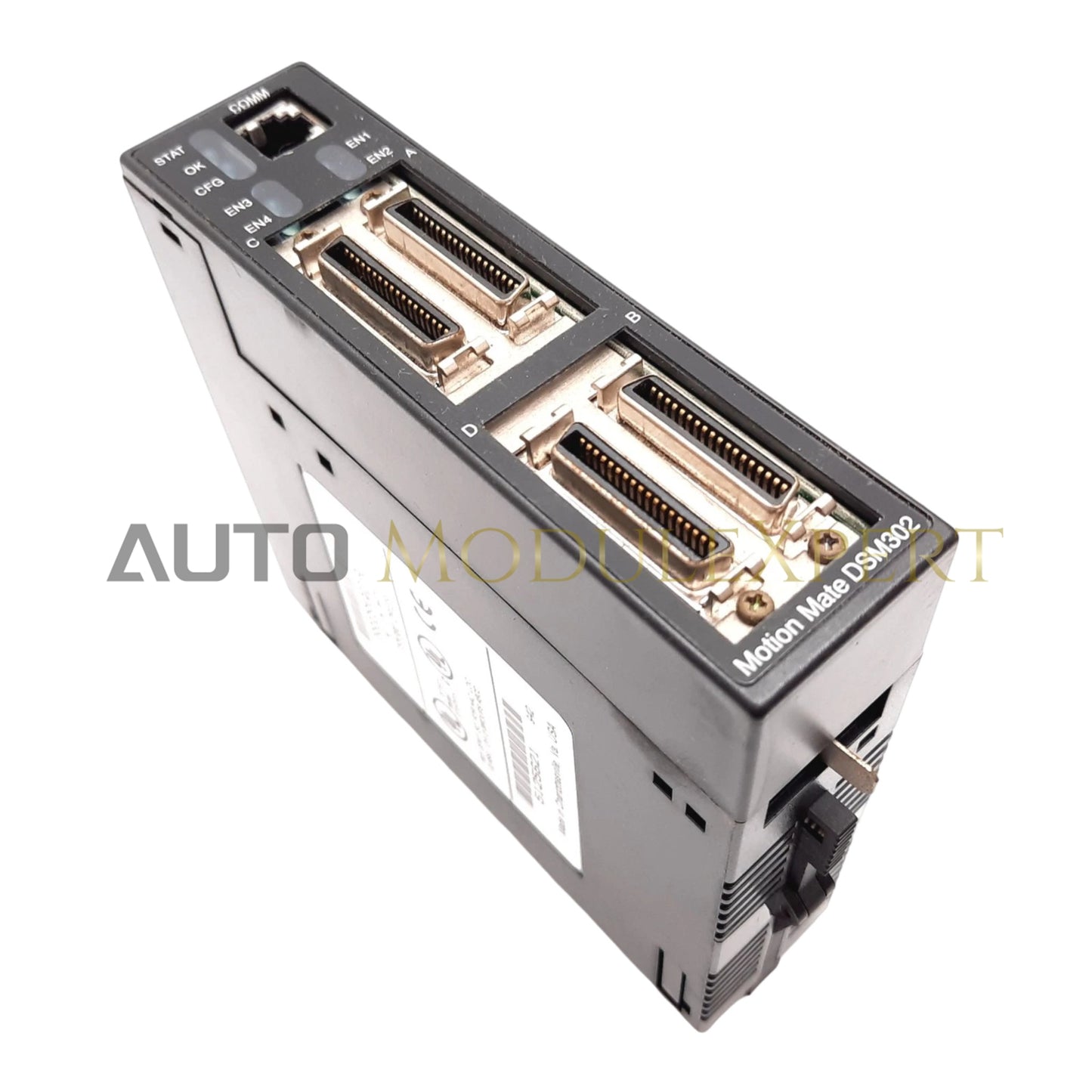

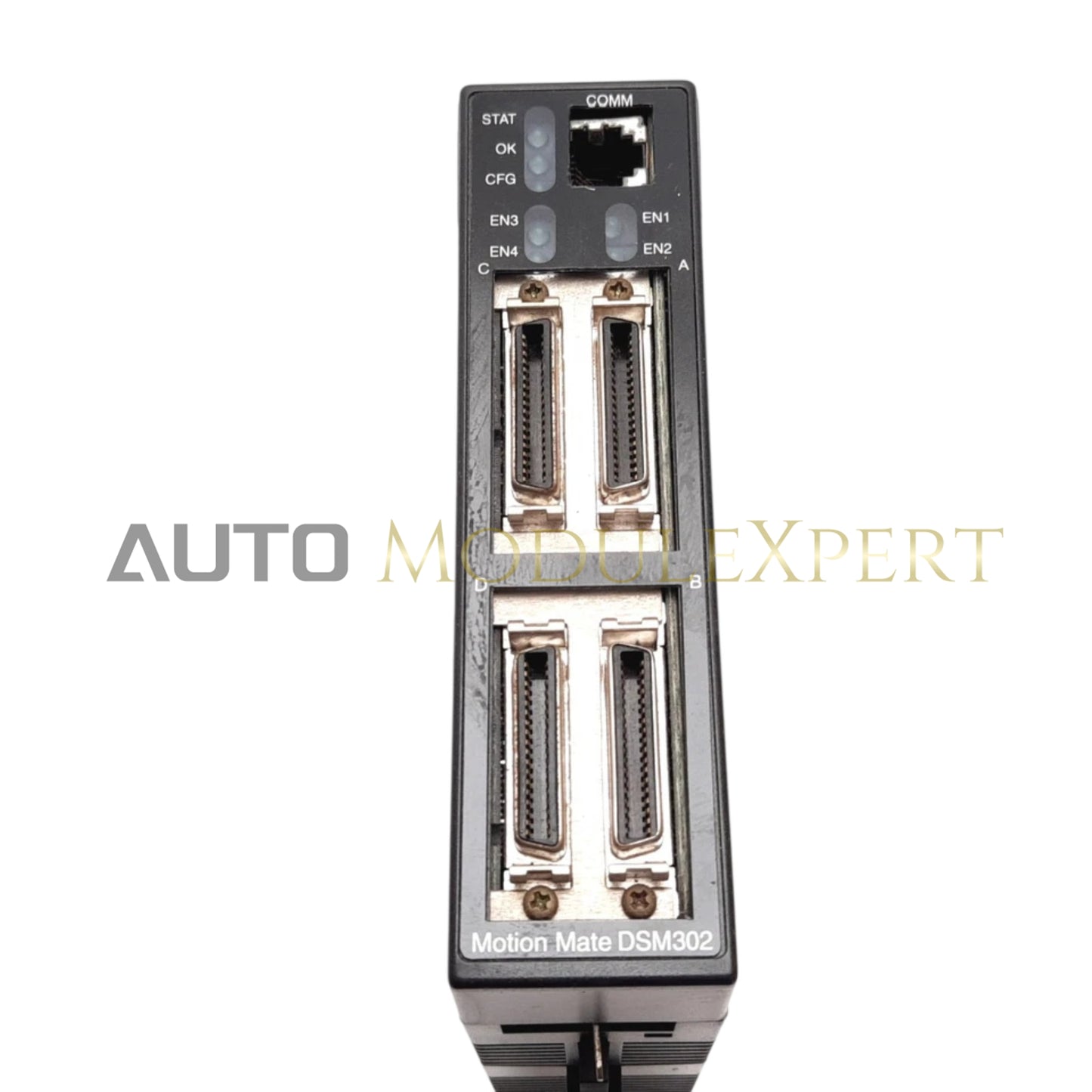

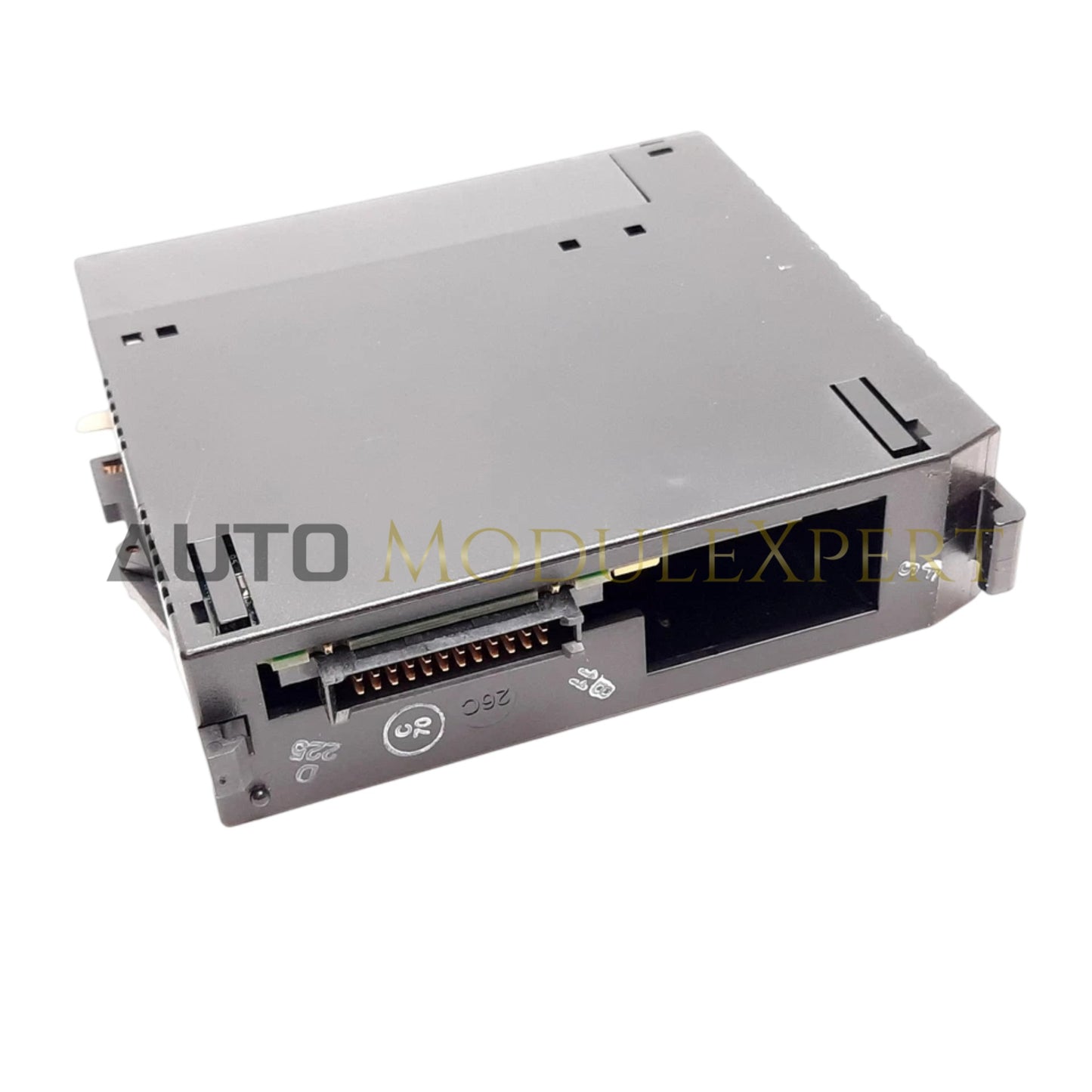

Configured for high-precision motion execution in Series 90-30 PLC platforms, the GE Fanuc IC693DSM302-AE (IC693DSM302-AE Motion Controller) provides direct physical and electrical control of industrial axis positioning. The module manages pulse-train and feedback signals to synchronize motion tasks with host PLC logic.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | IC693DSM302-AE |
| Brand | GE Fanuc Emerson |
| Origin | USA |
| Weight | 0.40 kg |
| Dimensions | Standard 90-30 module form factor |
| Operating Temp | 0 deg C to 60 deg C |
| Power Consumption | Backplane dependent |
| Product Line | Series 90-30 |
Industrial Control Technical Characteristics
The GE Fanuc IC693DSM302-AE maintains integration with the Series 90-30 backplane to facilitate deterministic motion control. Firmware flash compatibility is restricted to specific CPU versions within the 90-30 family; verifying the existing rack firmware revision is required prior to deployment to ensure proper register mapping. The module processes I/O density scaling based on the total number of configured axes, and communication velocity across the backplane bus is optimized for low-latency command execution. Users must ensure that the motion profile parameters are correctly loaded into the module memory to avoid position offset errors during high-speed trajectory calculation.
Frequently Asked Questions
Q: Is the IC693DSM302-AE module capable of hot-swapping while the Series 90-30 rack is under power?
A: No. The Series 90-30 backplane is not designed for hot-swapping modules. Power must be removed from the rack before installation or extraction to prevent damage to the backplane pins or the module circuitry.
Q: How is the firmware compatibility verified for this specific motion controller?
A: Firmware compatibility is determined by the CPU model installed in the rack. Consult the system hardware configuration software to match the module firmware ID with the required operating system version of the PLC processor.
Field Installation Guidelines
- Power Isolation: Disconnect all external power sources from the PLC rack before inserting or removing the motion module.
- Backplane Insertion: Align the module with the rack guide rails and press firmly until the connector fully seats into the backplane receptacle. Secure the module using the top and bottom captive screws.
- Grounding: Ensure the rack assembly is connected to a verified earth ground to minimize electrical noise impact on sensitive encoder feedback signals.
- Cabling: Route signal cables away from AC power lines or high-frequency drives to prevent inductive interference. Use shielded twisted-pair cabling for all encoder and pulse-train connections.
- Configuration: After physical installation, perform a hardware configuration scan via the programming software to ensure the module is correctly recognized by the CPU and that address assignments do not conflict with existing I/O cards.
