Product Overview

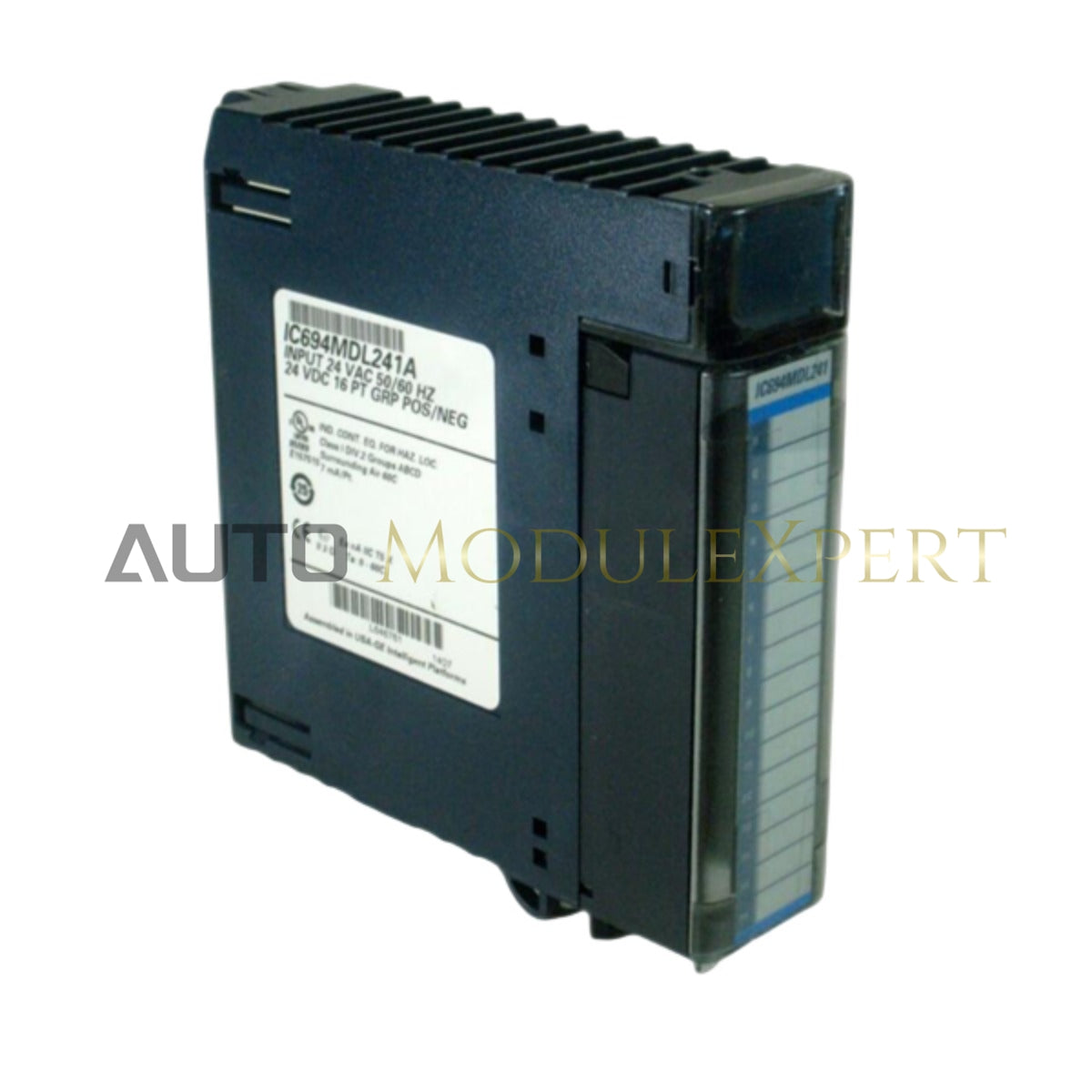

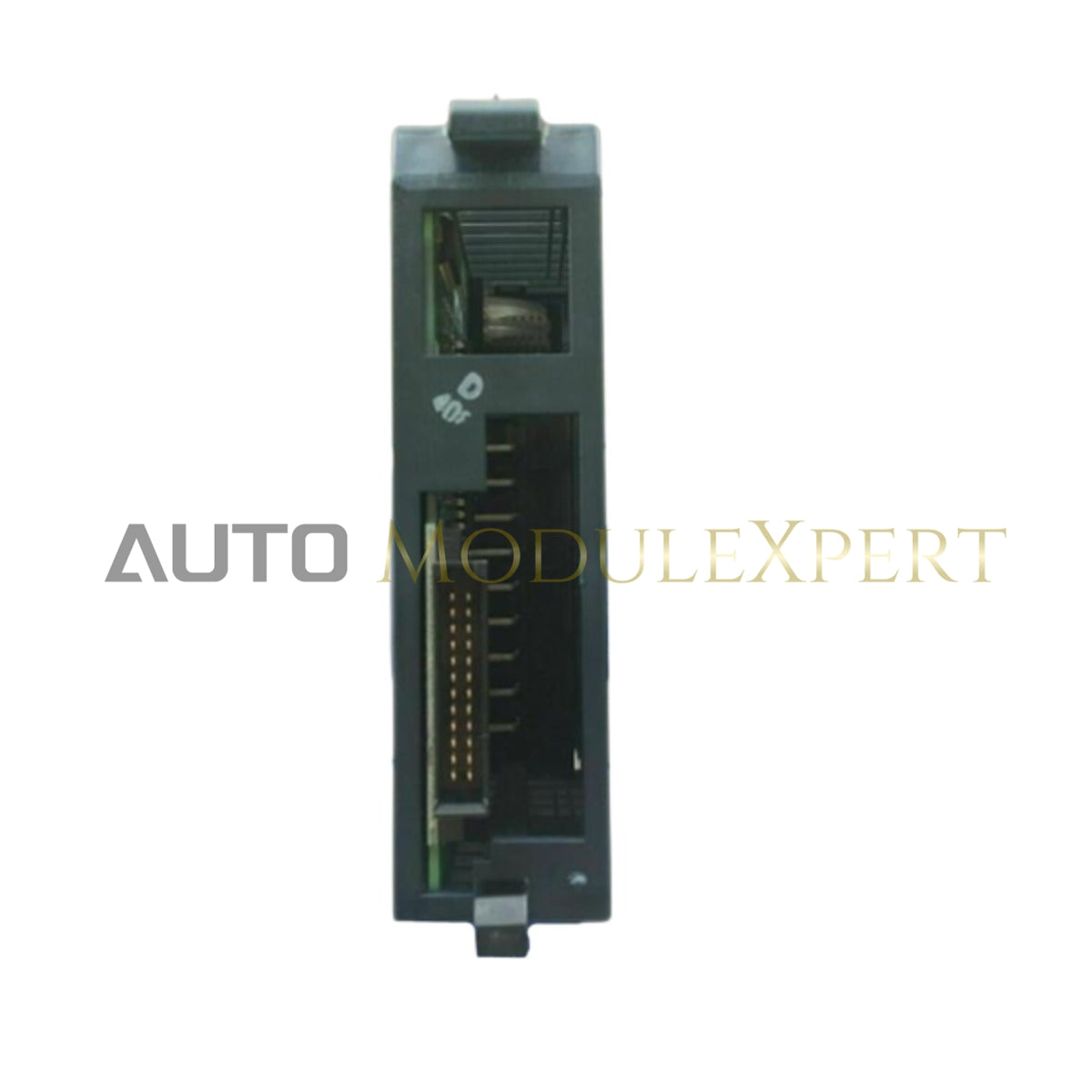

The IC694MDL241A functions as a high-density discrete input module for the GE PACSystems RX3i platform. It provides 16 isolated input points capable of accepting both 24V AC and 24V DC signals, enabling flexible integration with a wide range of field devices.

This module converts field-level electrical signals into digital data for the RX3i CPU, ensuring accurate monitoring and control of machine states. We supply this unit as 100% Brand New original hardware, guaranteeing long-term reliability in industrial applications.

Technical Specifications

Engineering Advantages

Dual-Signal Flexibility
Supports both AC and DC inputs, allowing consolidation of different signal types into a single module and reducing hardware requirements.

Real-Time Visual Diagnostics
Equipped with 16 front-panel LEDs, enabling immediate identification of input status and simplifying troubleshooting.

Built-In Noise Filtering
Hardware filtering removes contact bounce and electrical noise, ensuring stable and accurate signal processing.

High-Density Design
Compact 35 mm width delivers 16 input points in a single slot, maximizing I/O density in limited cabinet space.

FAQs

Can AC and DC signals be mixed on the same module?
No. All 16 inputs share a common return, so the entire module must use either AC or DC signals.

Is this module compatible with Series 90-30 racks?
No. IC694 modules are specifically designed for PACSystems RX3i backplanes. Series 90-30 systems require IC693 series modules.

Does it include a terminal block?
The terminal block is typically sold separately. Confirm whether your installation requires a compatible high-density connector.

What is the hardware condition?
This IC694MDL241A is 100% Brand New and shipped in original GE factory packaging with sealed authenticity.
