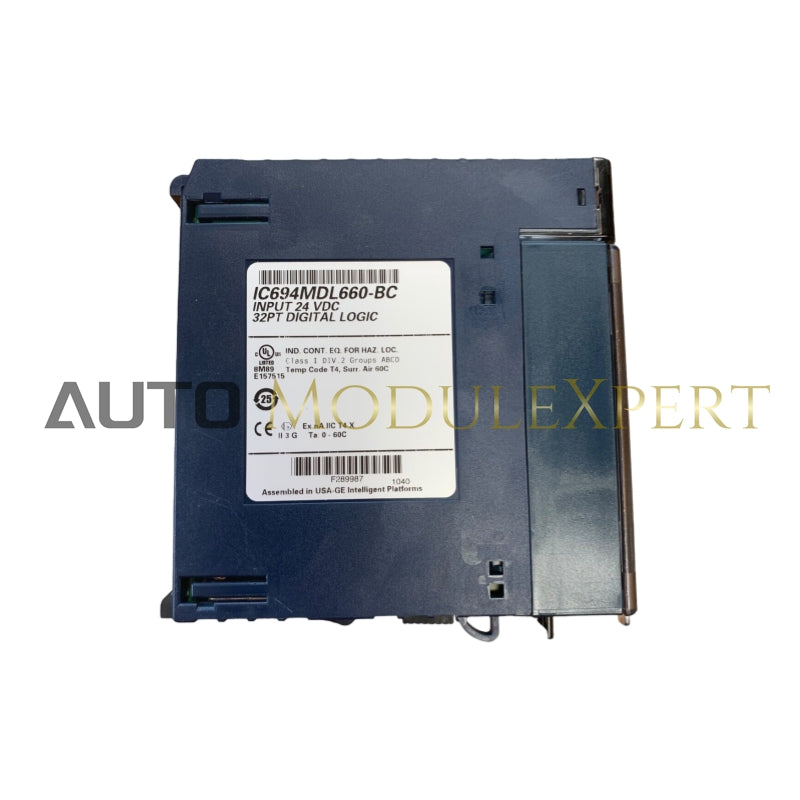

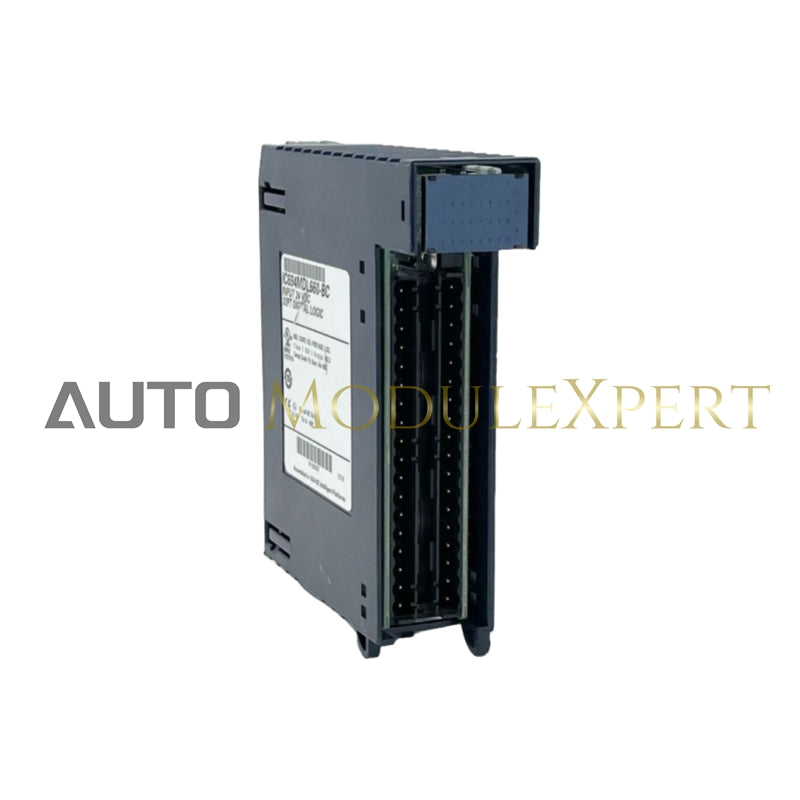

Overview of PACSystems™ RX3i IC694MDL660
The IC694MDL660 is a 24VDC Positive/Negative Logic Input module for the PACSystems™ RX3i system. This module offers 32 discrete input points, arranged in four isolated groups of 8 inputs. It can handle input voltages ranging from 0 to 30V DC and supports both positive and negative logic inputs.
The inputs are isolated from each other in groups, with each group sharing a common connection. The isolation ensures that the input signals do not interfere with each other, providing high reliability and protection in industrial environments.
Specifications
- Rated Voltage: 24 VDC
- Input Voltage Range: 0 to 30 VDC
- Inputs per Module: 32 (Four isolated groups of 8 inputs)
-
Isolation:
- Field to Backplane: Optical isolation, 250 VAC continuous; 1500 VAC for one minute
- Group to Group: 250 VAC continuous; 1500 VAC for one minute
-
Input Current:
- 7.0 mA per point (typical) at rated voltage
- Module ID: 0x058h
-
Input Characteristics:
- On-state Voltage: 11.5 to 30 VDC
- Off-state Voltage: 0 to 5 VDC
- On-state Current: 3.2mA minimum
- Off-state Current: 1.1mA maximum
-
Input Filter Times: Selectable per module:
- 0.5ms, 1.0ms, 2.0ms, 5.0ms, 10.0ms, 50.0ms, and 100.0ms
-
Response Times:
- On Response Time: As per filter setting (0.5ms to 100ms)
- Off Response Time: As per filter setting (0.5ms to 100ms)
-
Power Consumption:
- 300mA (all inputs on) from the 5V bus on the backplane
-
Diagnostics:
- Terminal block presence is reported to the RX3i CPU
